System Diagram

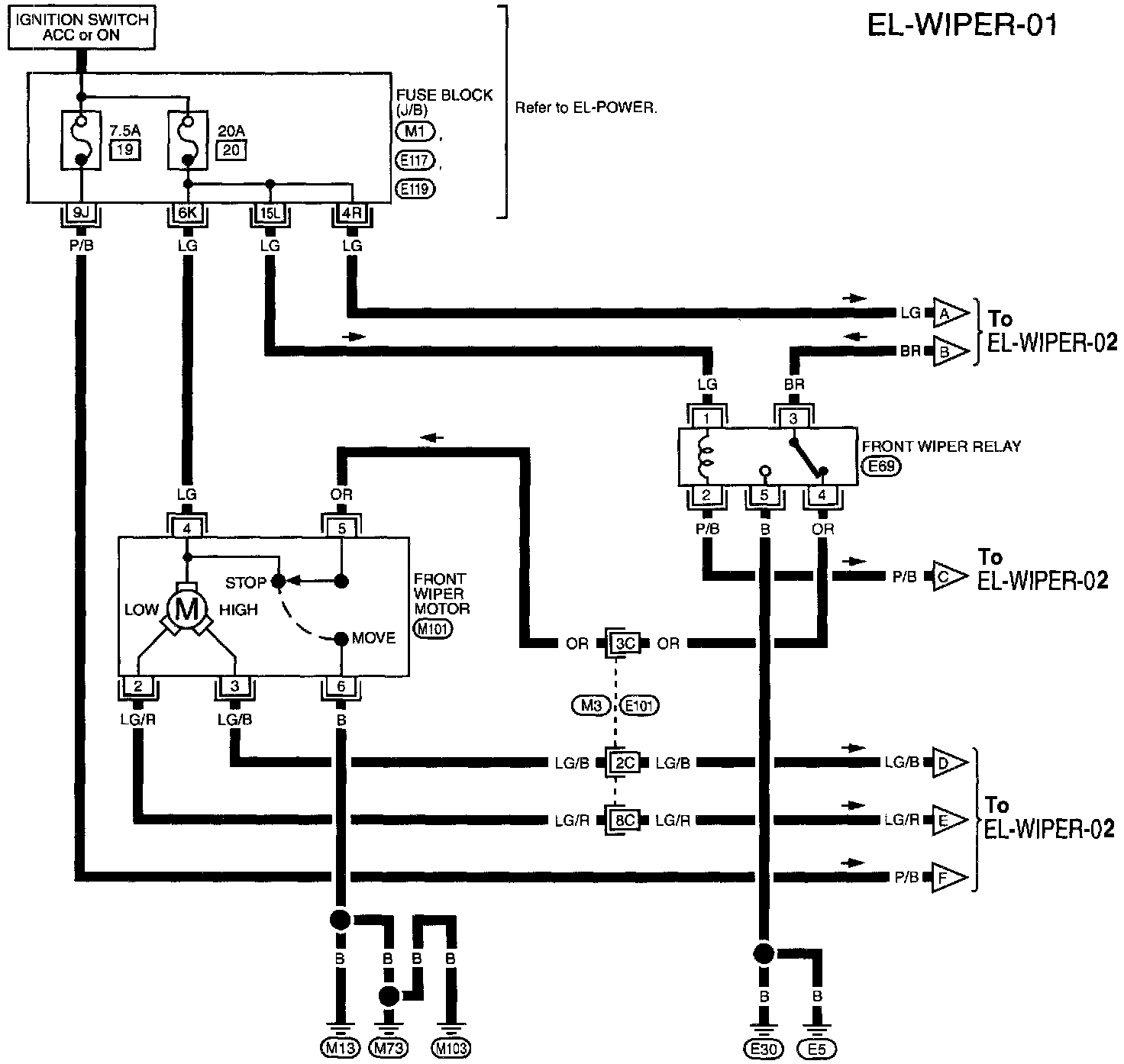

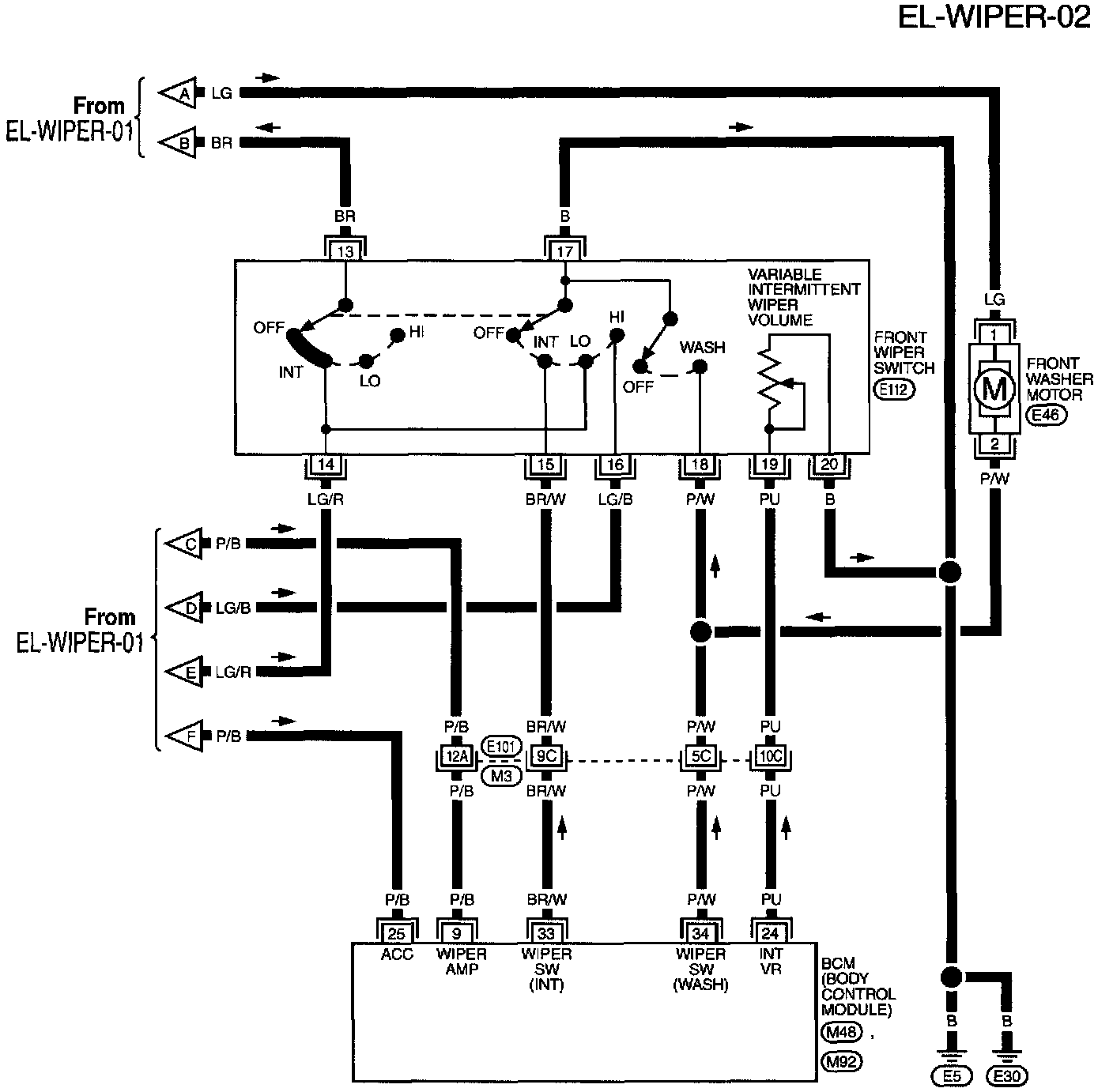

Circuit Diagrams








Circuit Connectors





E117, E119, M1 Terminal Arrangement





E101, M3 Engine Room, Main Harness Terminal Arrangement
