Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1999
>>
I30t V6-2988cc 3.0L DOHC MFI (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>

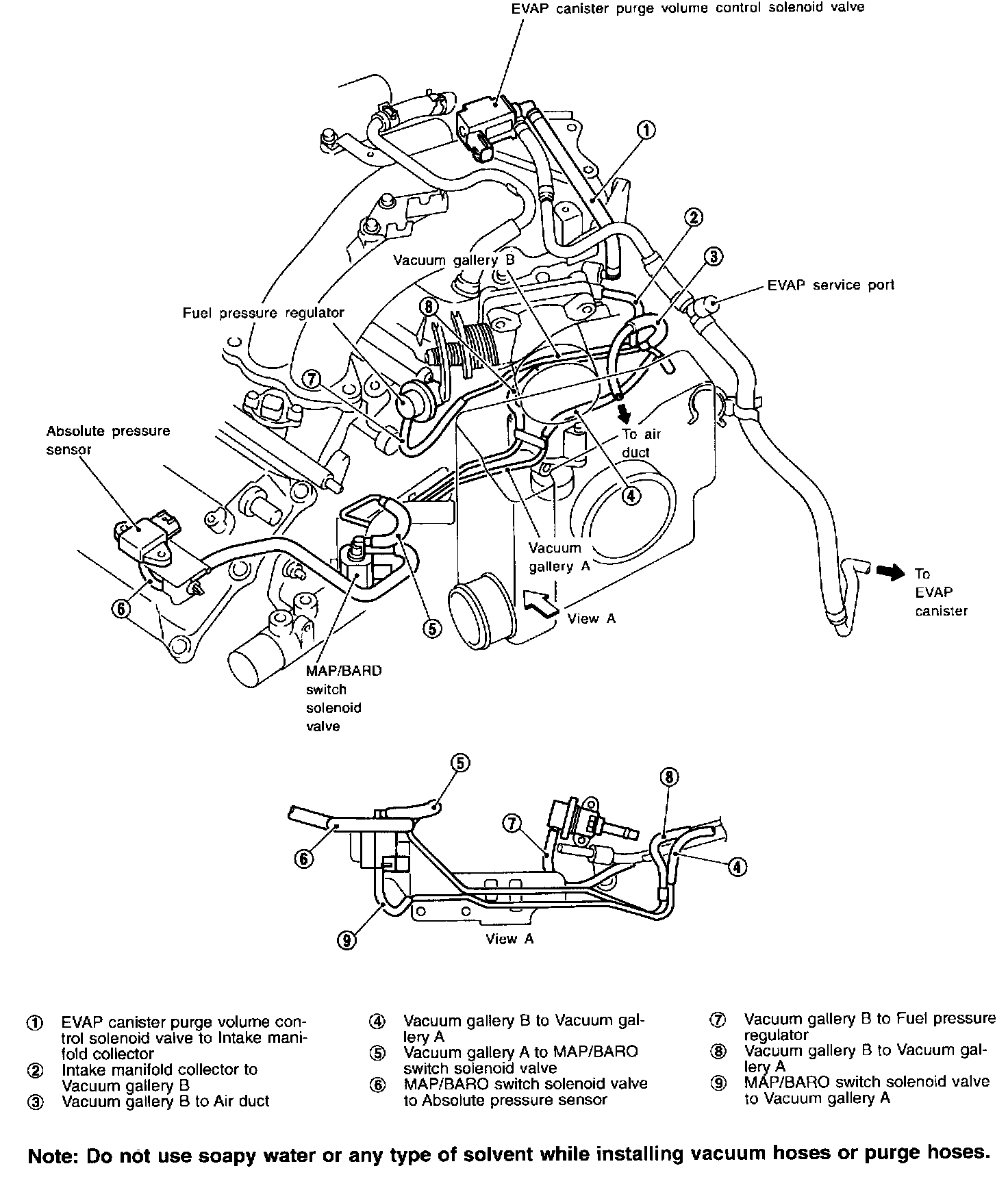

Vacuum and Vapor Hose Diagrams
>>
Computers and Control Systems
>>
Except California Models
Except California Models
Refer to "System Diagram" for vacuum control system.
