Home >> Infiniti >> 1999 >> I30t V6-2988cc 3.0L DOHC MFI (VQ30DE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Meter and Gauges

Meter and Gauges





Combination Meter

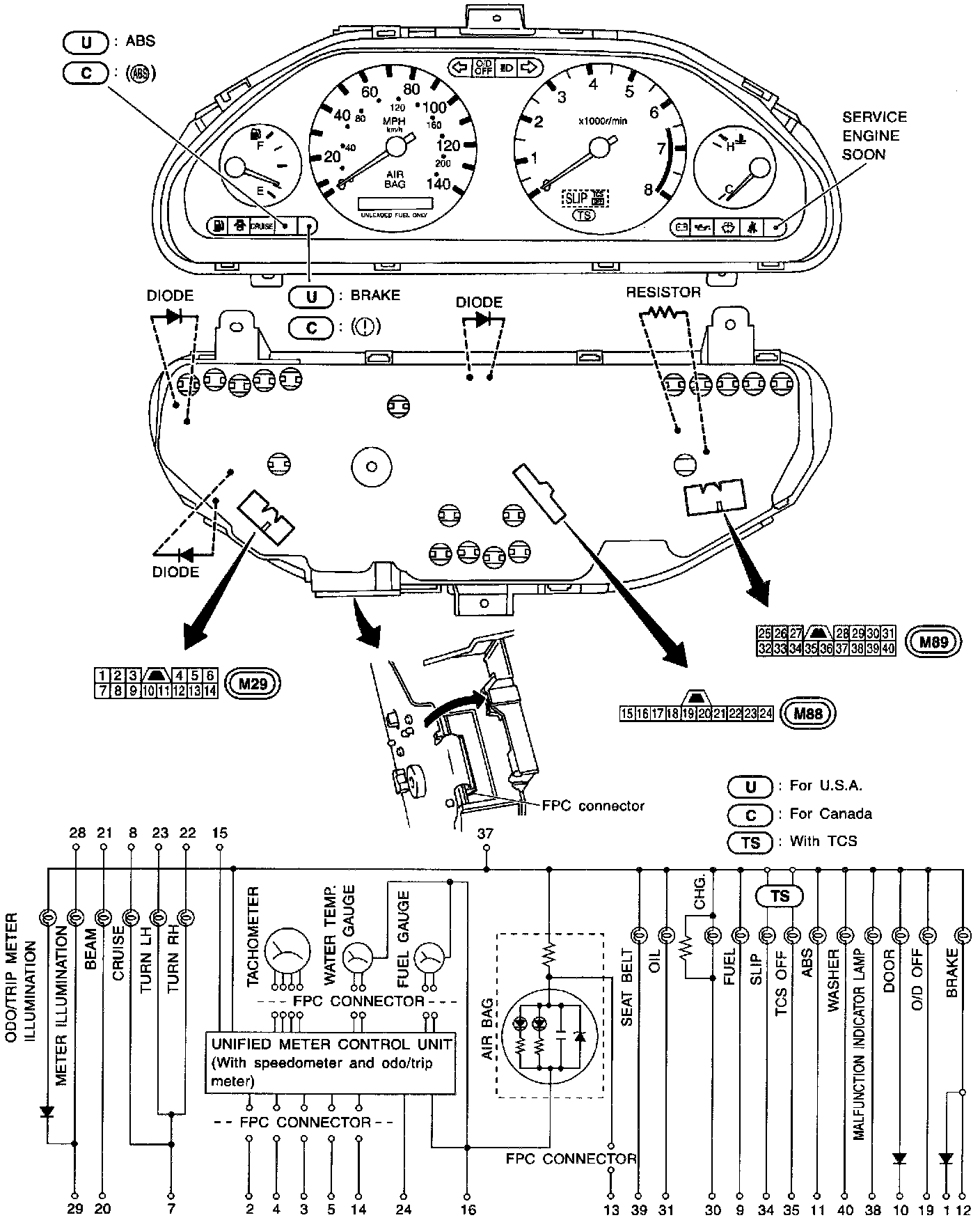

Circuit Diagram





Circuit Connectors





B1, M4 Body, Main Harness Terminal Arrangement





M1 Terminal Arrangement





F101 Electrical Units - Terminal Arrangements
