Cornering Lamp: Service and Repair

Replacement

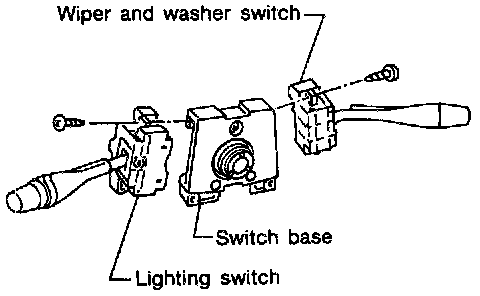

^ Each switch can be replaced without removing combination switch base.





^ To remove combination switch base, remove base attaching screws.

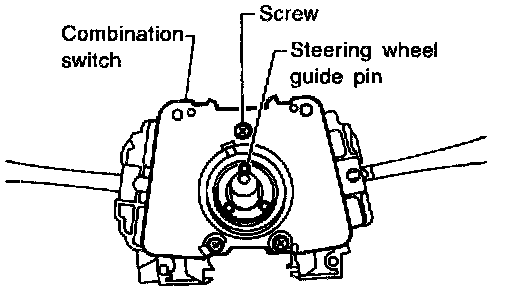

^ Before installing the steering wheel, align the steering wheel guide pins with screws which secure the combination switch as shown in the diagram.
