Home >> Infiniti >> 1999 >> I30t V6-2988cc 3.0L DOHC MFI (VQ30DE) >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

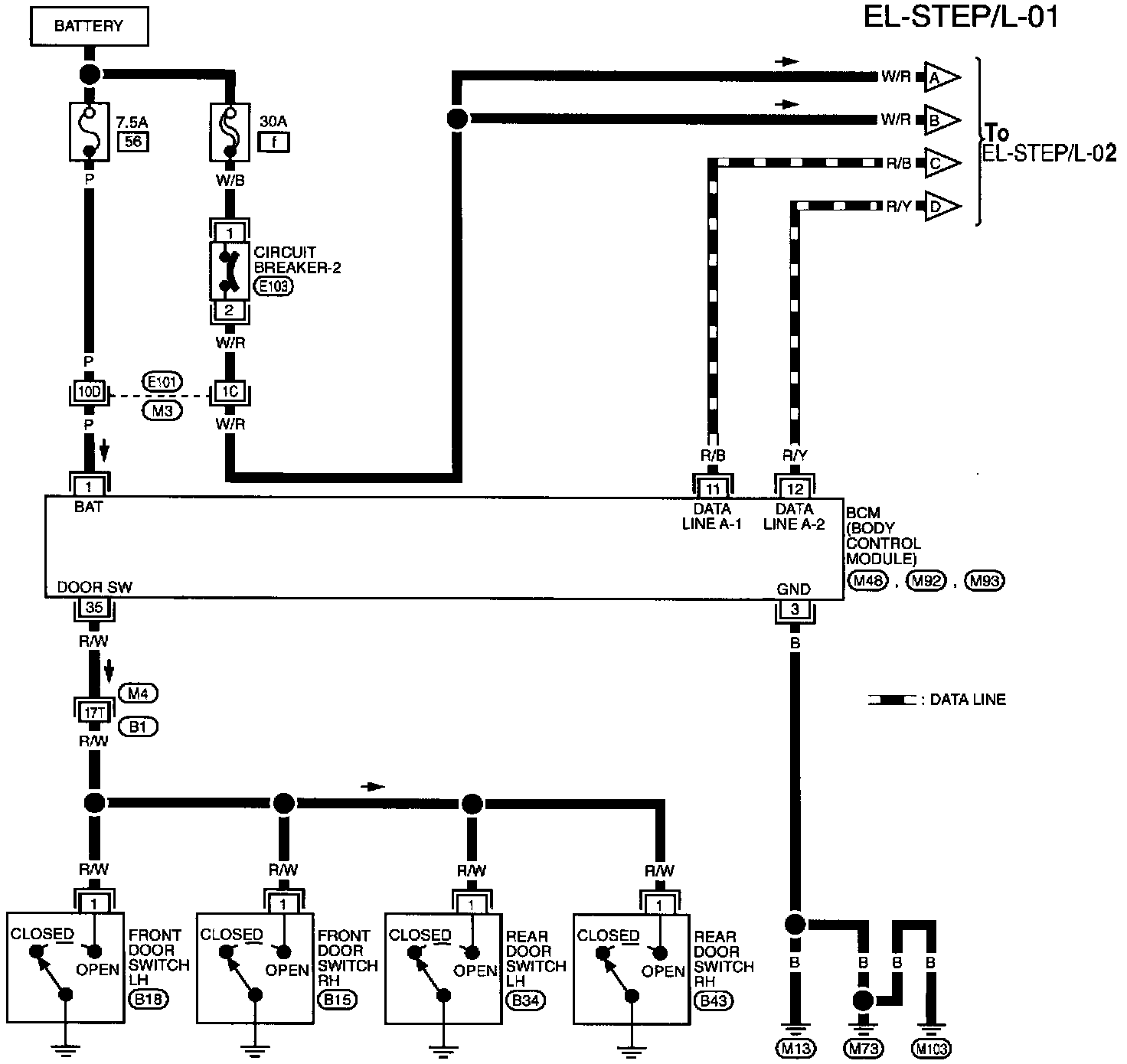

Circuit Diagrams

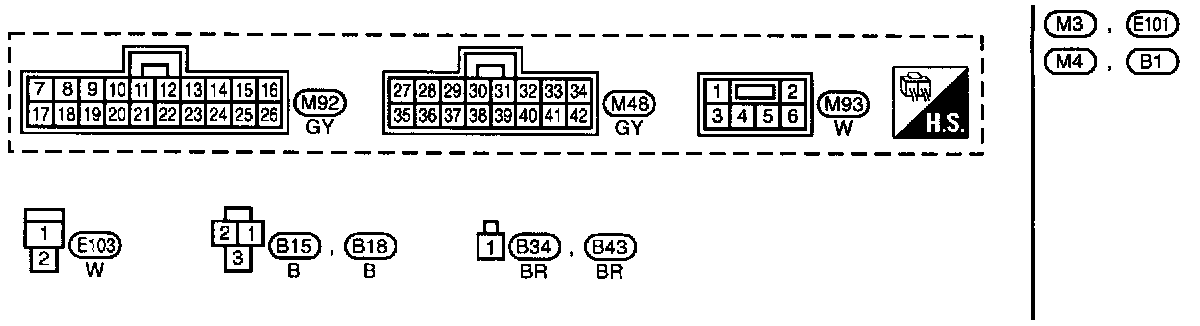

Circuit Connectors





M1 Terminal Arrangement





E101, M3, M4 Engine Room, Main Harness Terminal Arrangement
