Electrical Diagrams

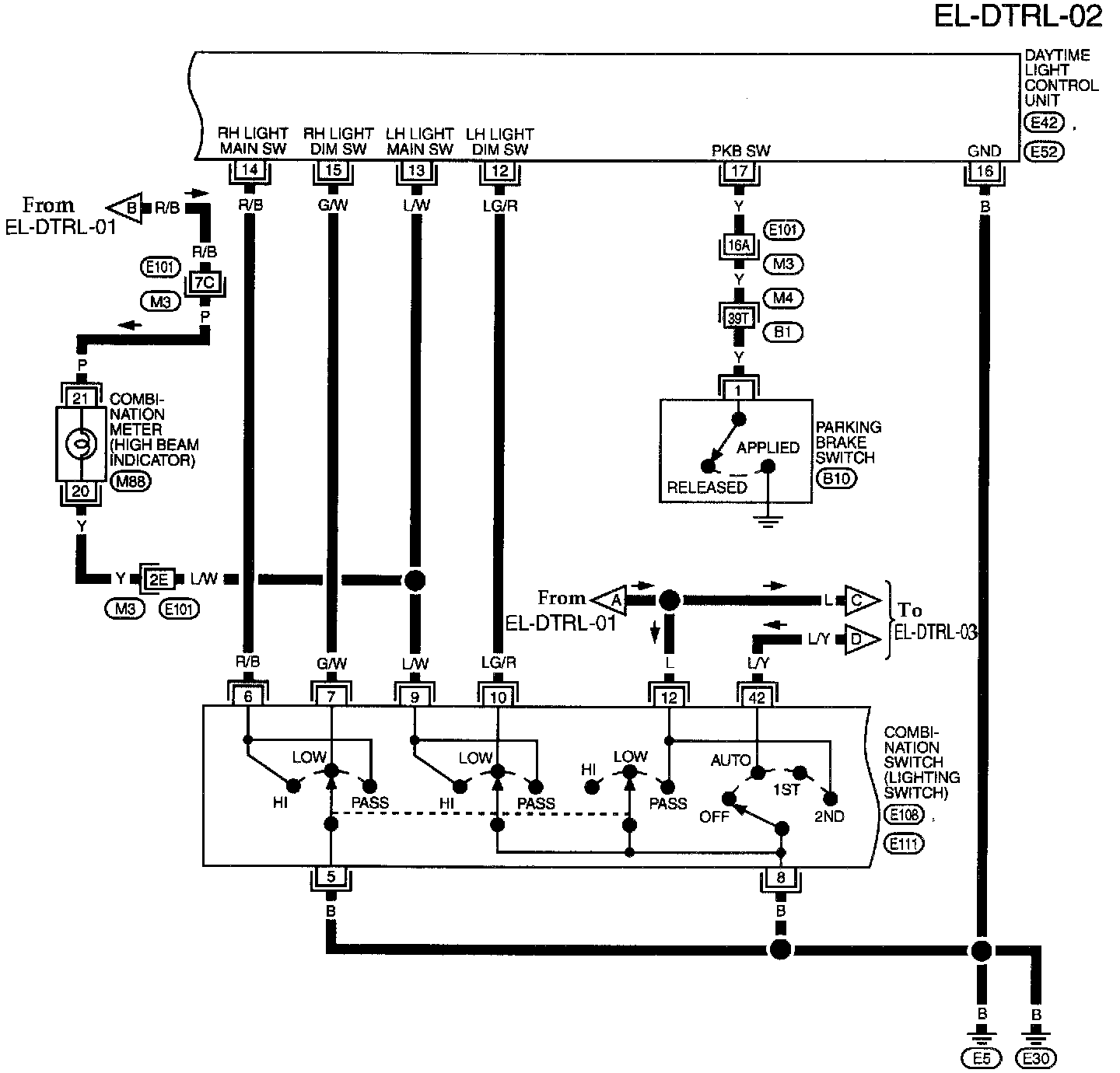

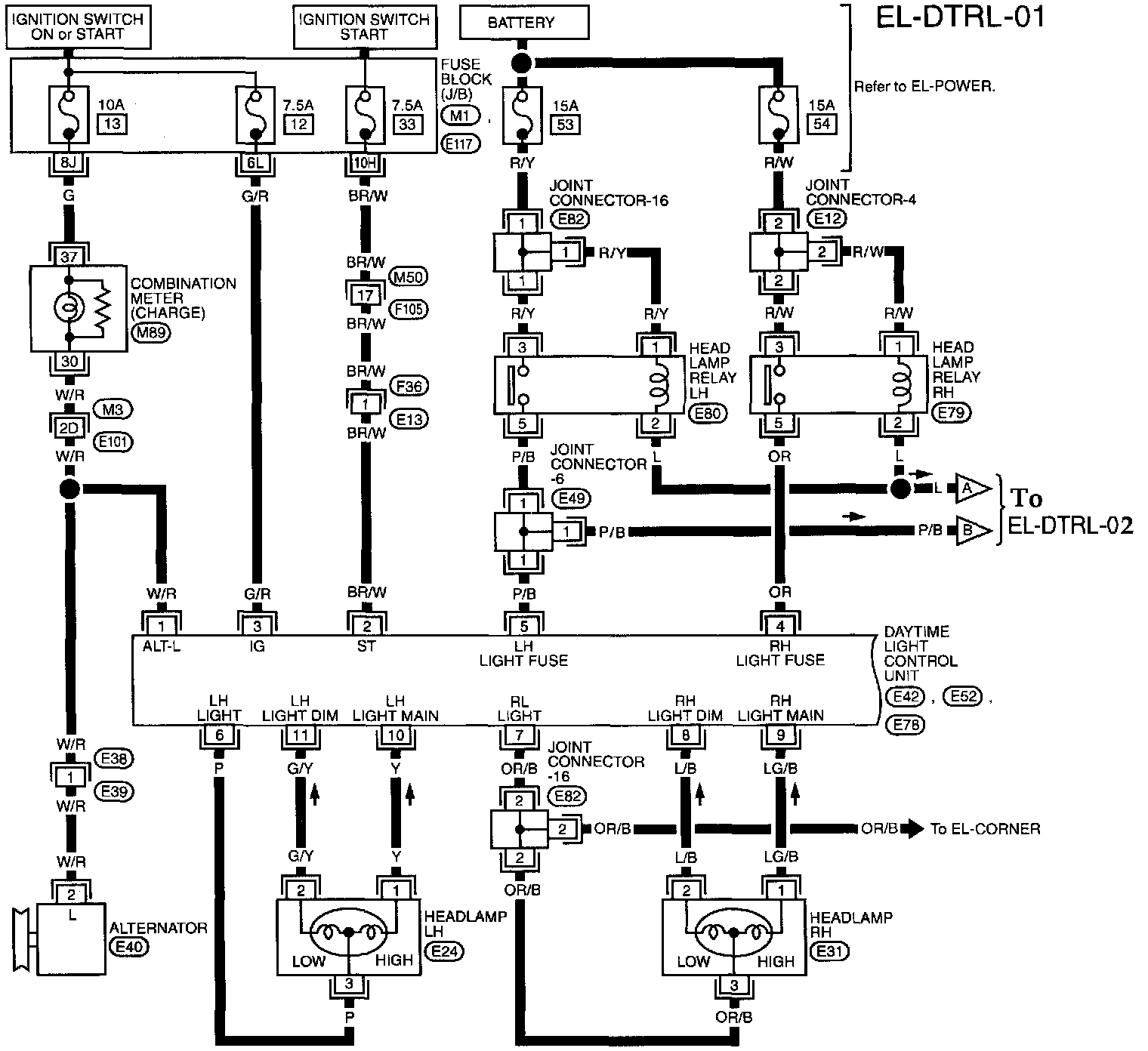

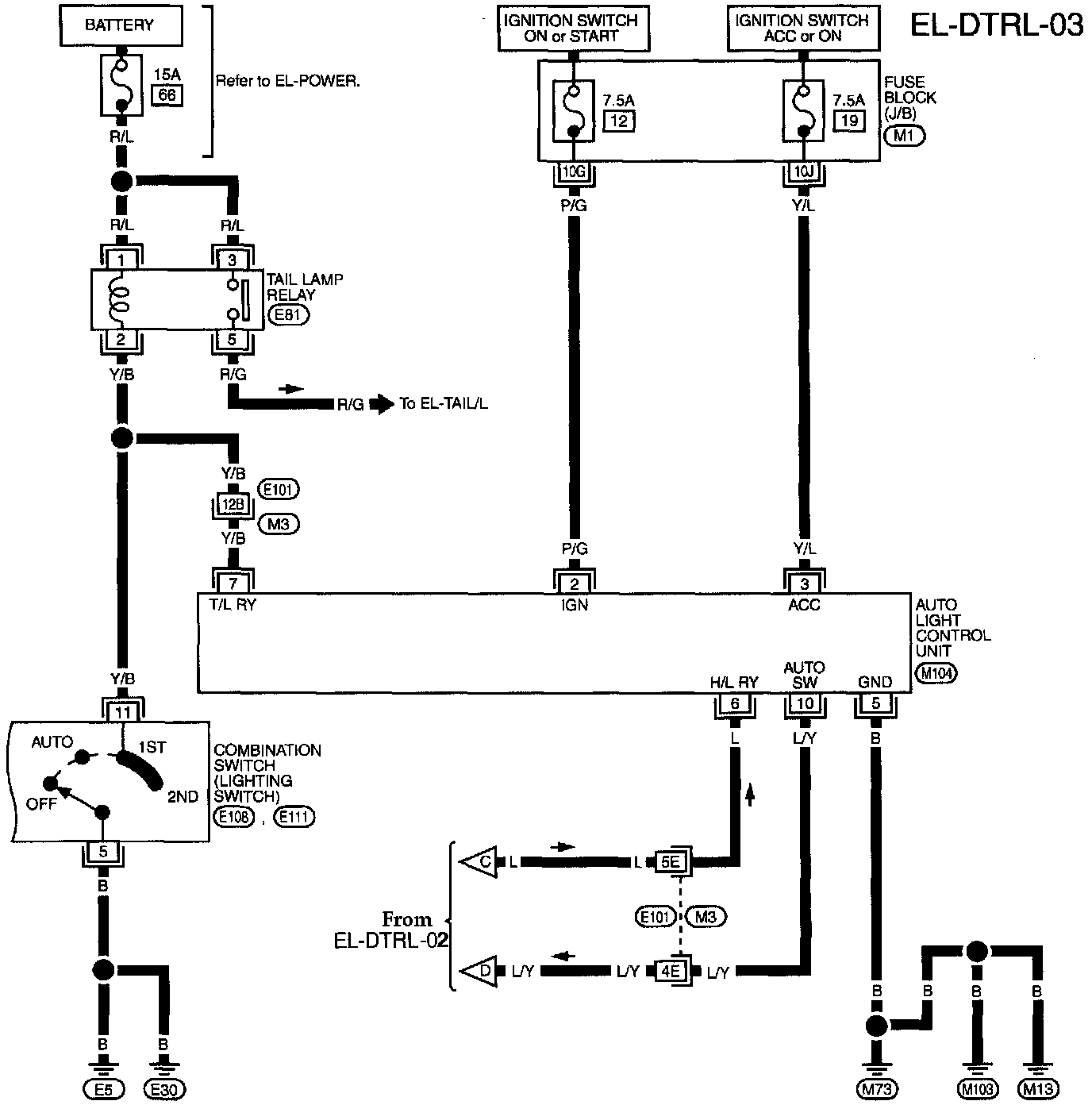

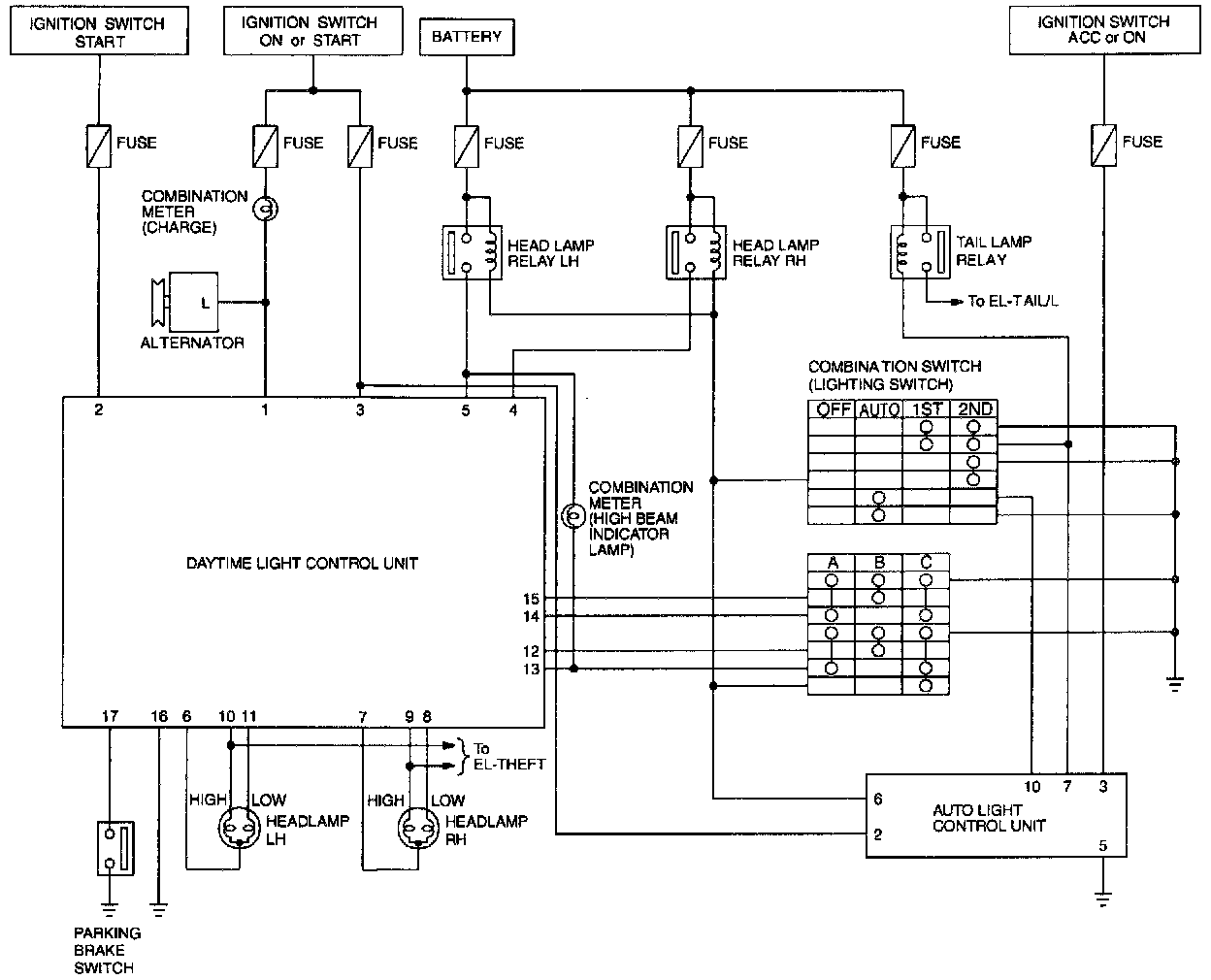

Schematic





(Part 1 of 3)
Alternator
Battery
Combination Meter
Daytime Light Control Unit
Headlamp LH
Headlamp RH
Head Lamp Relay LH
Head Lamp Relay RH
Ignition Switch
Joint Connector




(Part 2 of 3)
Combination Switch
Daytime Light Control Unit
Parking Brake Switch





(Part 3 of 3)
Auto Light Control Unit
Battery
Combination Meter
Daytime Light Control Unit
Ignition Switch
Tail Lamp Relay

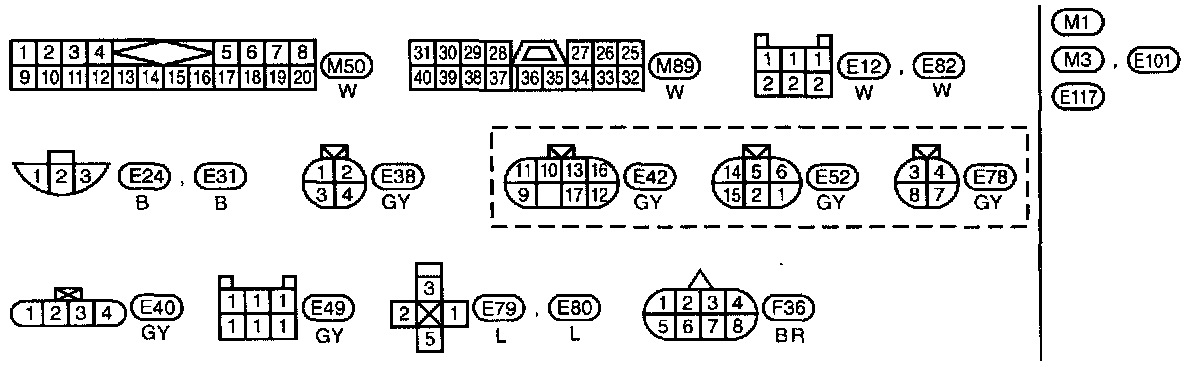

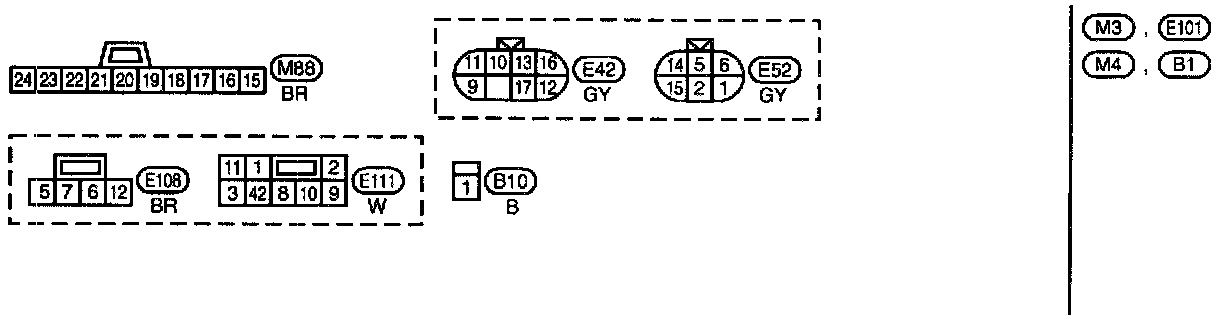

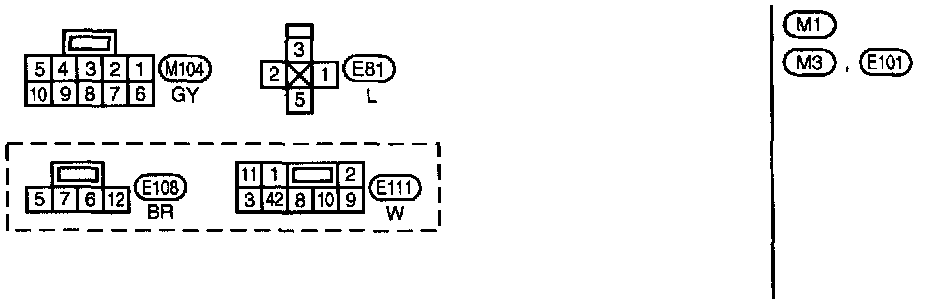

Circuit Connectors





M1 Terminal Arrangement





E117 Terminal Arrangement





E101, M3, M4 Engine Room, Main Harness Terminal Arrangement
