Diode: Testing and Inspection

DIODE CHECK





^ Check continuity using an ohmmeter.

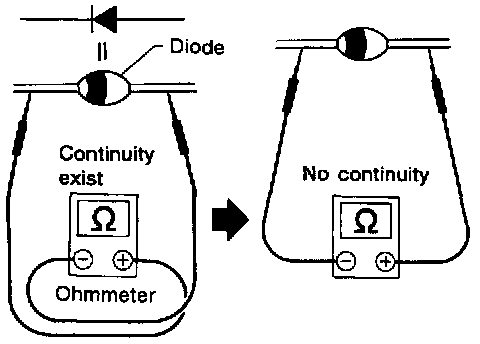

^ Diode is functioning properly if test results are as shown in the diagram.


NOTE: Specifications may vary depending on the type of tester.






^ Diodes for warning lamps are built into the combination meter printed circuit.
