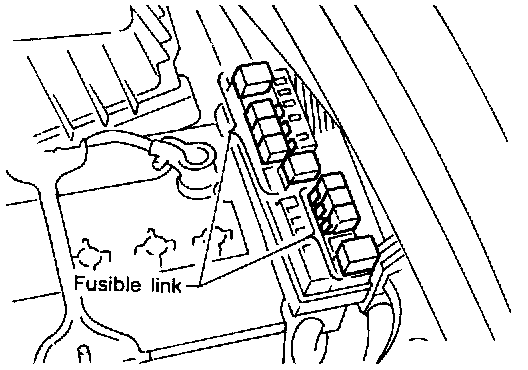

Fusible Link: Testing and Inspection

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is questionable, use circuit tester or test lamp.


CAUTION:
^ If fusible link is melted, it is possible that a critical circuit (power supply or large current carrying circuit) is shorted. In such a case, carefully check these circuits and eliminate cause of problem.
^ Never wrap outside of fusible link with vinyl tape.

Important: Never let fusible link touch any other wiring harness, vinyl or rubber parts.
