Front Wheel Alignment

WHEELARCH HEIGHT (Unladen) [1]

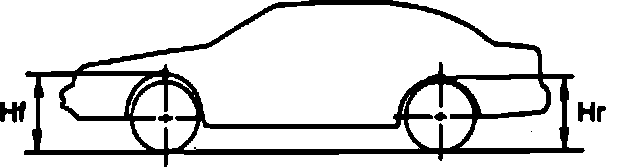

Fig. 5 Vehicle Ride Height Measurement:

Models With 205/65 R15 Tires
Front (Hf): 713 mm (28.07 inch)
Rear (Hr): 715 mm (28.15 inch)

Models With 215/60 R15 Tires
Front (Hf) and Rear (Hr): 713 mm (28.07 inch)


[1] All fluids full, spare tire, jack, hand tools and mats in place.


CAMBER
Minimum: -1°00' (-1.00°)
Nominal: -0°15' (-0.25°)
Maximum: 0°30' (0.50°)
Left And Right Difference: 45' (0.75°) or less

CASTER
Minimum: 2°00' (2.00°)
Nominal: 2°45' (2.75°)
Maximum: 3°30' (3.50°)
Left And Right Difference: 45' (0.75°) or less

KING PIN INCLINATION
Minimum: 13°30' (13.50°)
Nominal: 14°15' (14.25°)
Maximum: 15°00' (15.00°)

TOTAL TOE-IN
ANGLE (Left + Right):
Minimum: 5.5' (0.09°)
Nominal: 11' (0.18°)
Maximum: 16' (0.27°)




DISTANCE (A - B):
Minimum: 1 mm (0.04 inch)
Nominal: 2 mm (0.08 inch)
Maximum: 3 mm (0.12 inch)

WHEEL TURNING ANGLE (Full Turn) [2]
INSIDE:
Minimum: 36°00' (36.00°)
Nominal: 39°30' (39.50°)
Maximum: 40°30' (40.50°)

OUTSIDE:
Nominal: 32°00' (32.00°)

[2]: On power steering models, wheel turning force (at circumference of steering wheel) of 98 - 147 N (22 - 33 lbs) with engine at idle.
