Electrical Diagrams

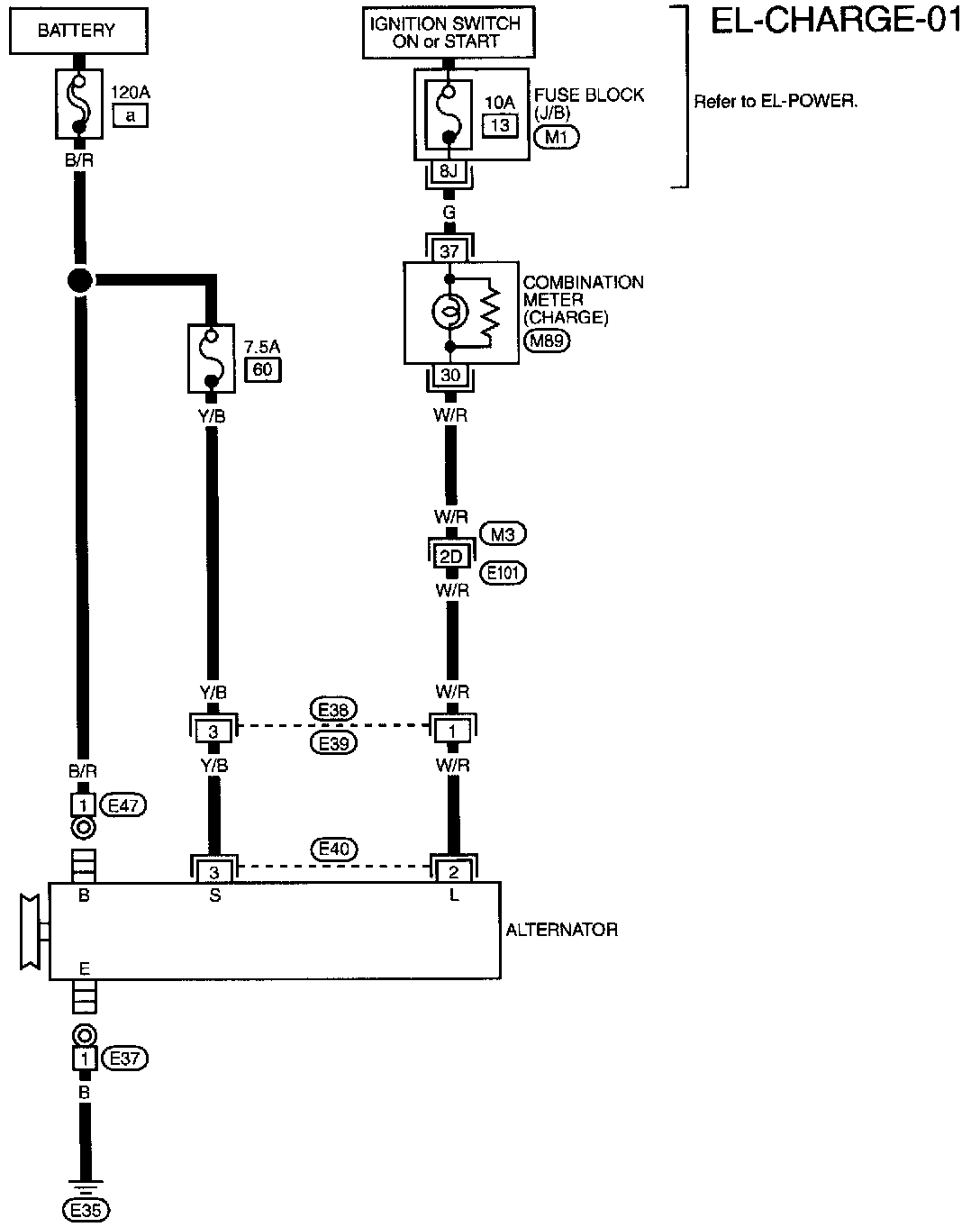

Circuit Diagram

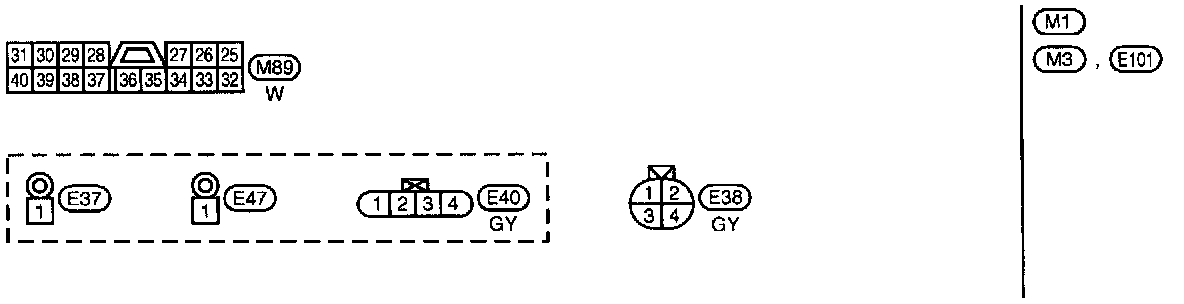

Circuit Connectors





M1 Terminal Arrangement





E101, M3 Engine Room, Main Harness Terminal Arrangement
