Home >> Infiniti >> 1999 >> I30t V6-2988cc 3.0L DOHC MFI (VQ30DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Diagrams

Manual Transmission/Transaxle: Diagrams

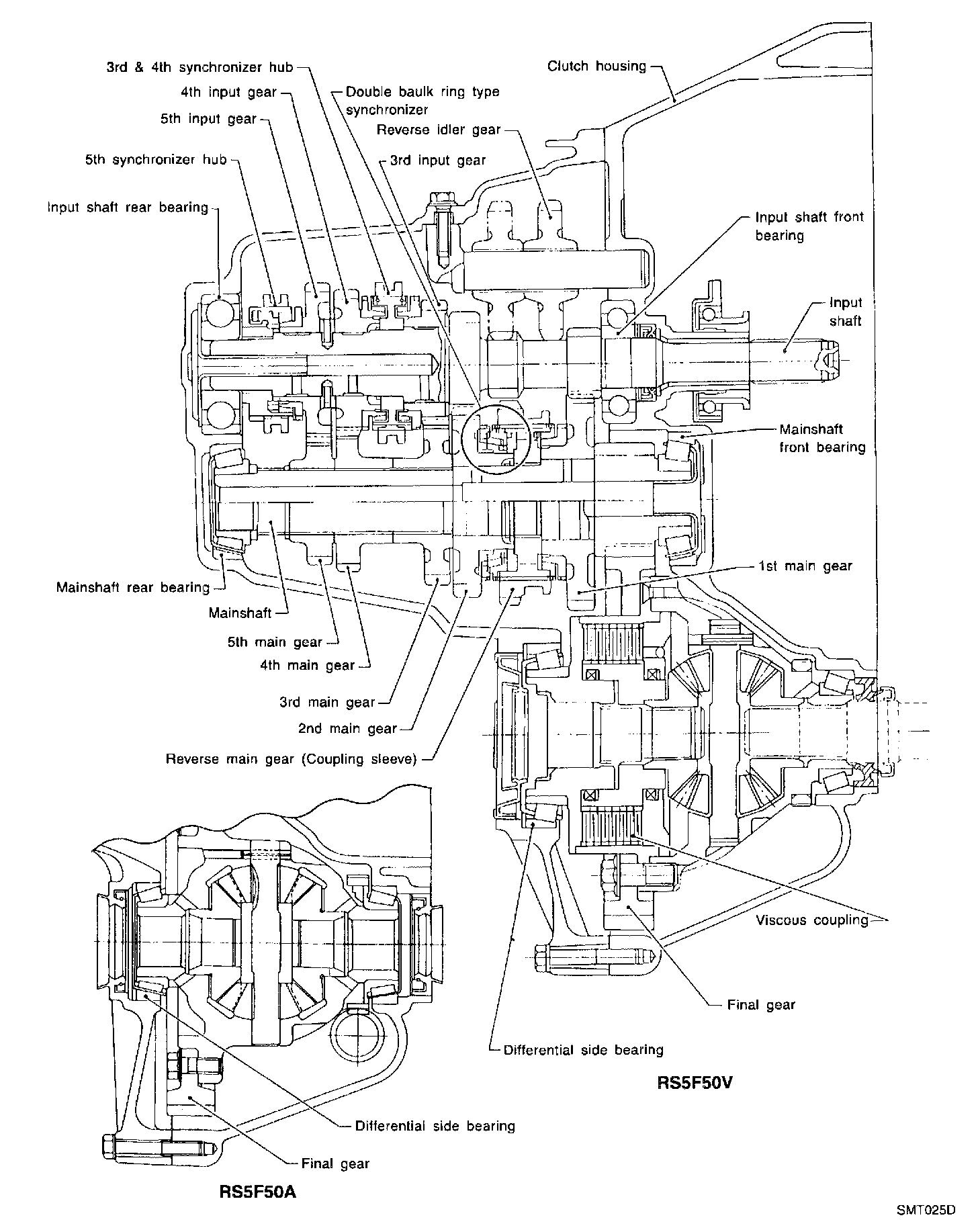

Cross-sectional View - RS5F50A And 50V:
