Connector Views








Circuit Diagrams

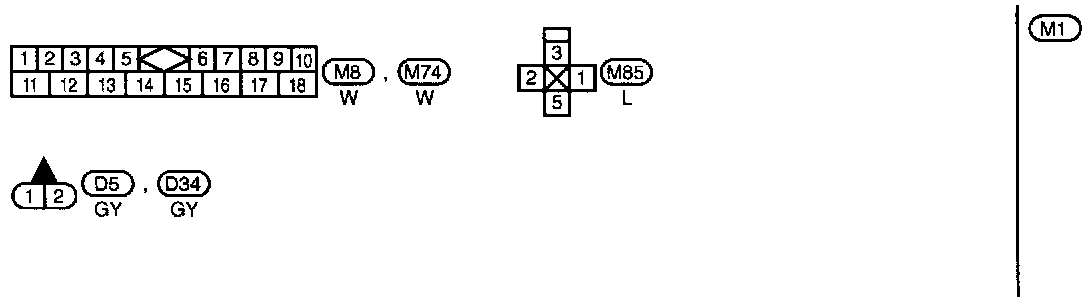

E117, E119, M1 Terminal Arrangement

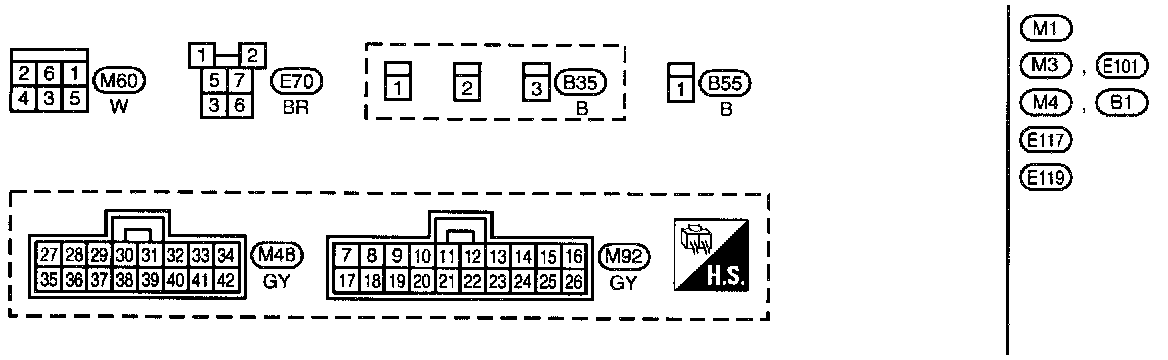

B1, E101, M3, M4 Engine Room, Main Harness Terminal Arrangement
