Home
>>
Infiniti
>>
1999
>>
Q45t V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
EGR Control Solenoid
EGR Control Solenoid
Circuit Connectors

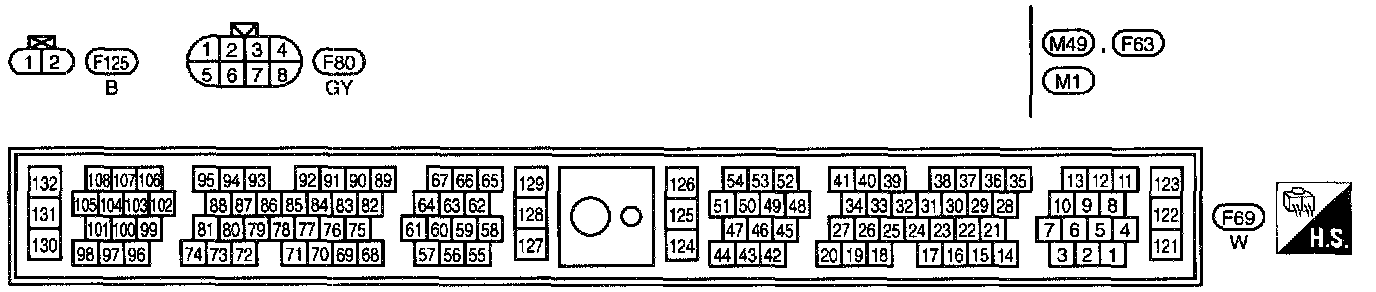

F63, M49, Super Multiple Junction Terminal Arrangement
M1 Terminal Arrangement
