Heating and Air Conditioning

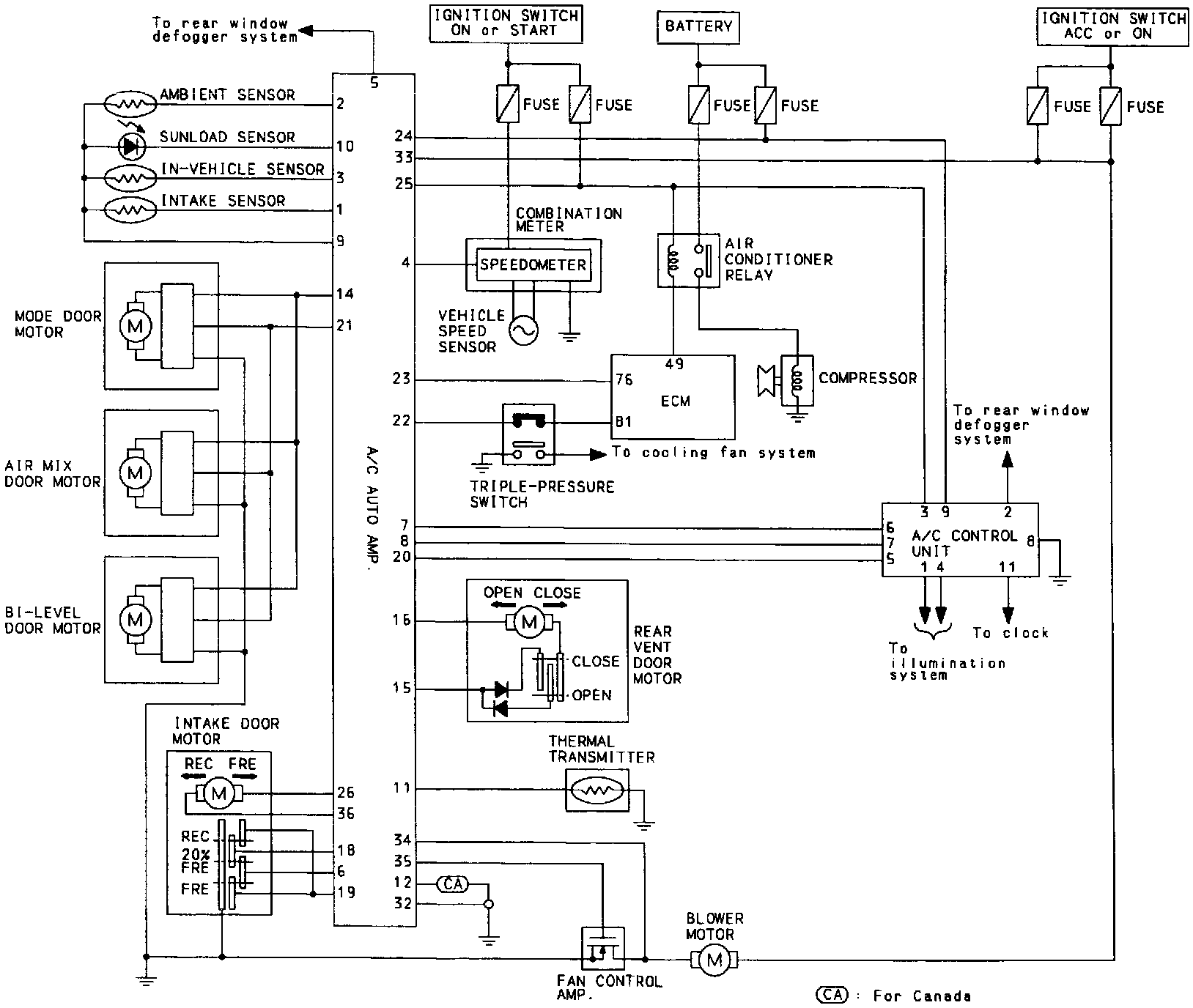

Schematic

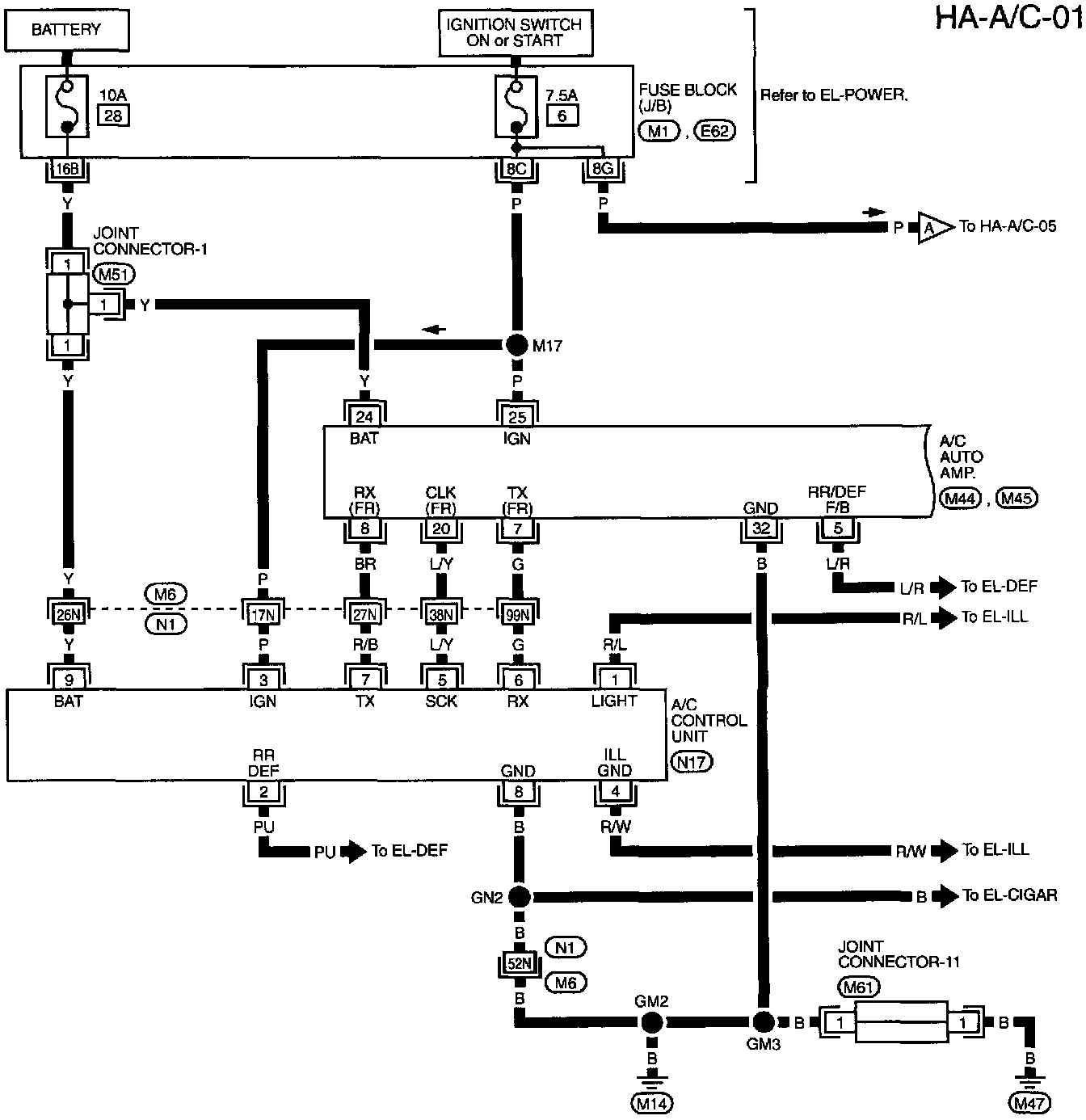

(Part 1 of 5)
A/C Auto AMP.
A/C Control Unit
Battery
Fuse Block (J/B)
Joint Connector - 1, 11

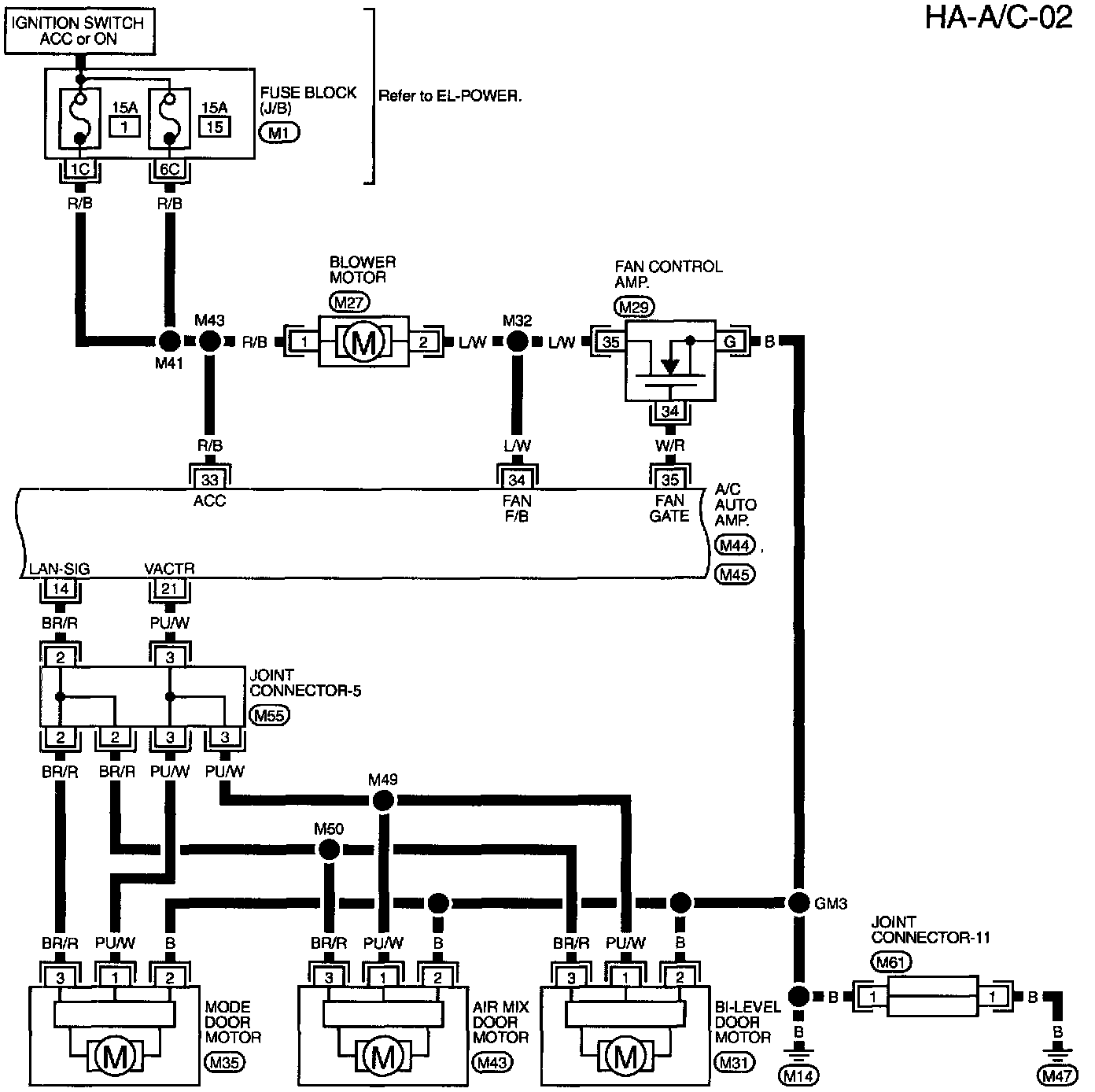

(Part 2 of 5)
A/C Auto AMP
Air Mix Door Motor
BI Level Door Motor
Fan Control AMP
Fuse Block (J/B)
Joint Connector 5, 11
Mode Door Motor

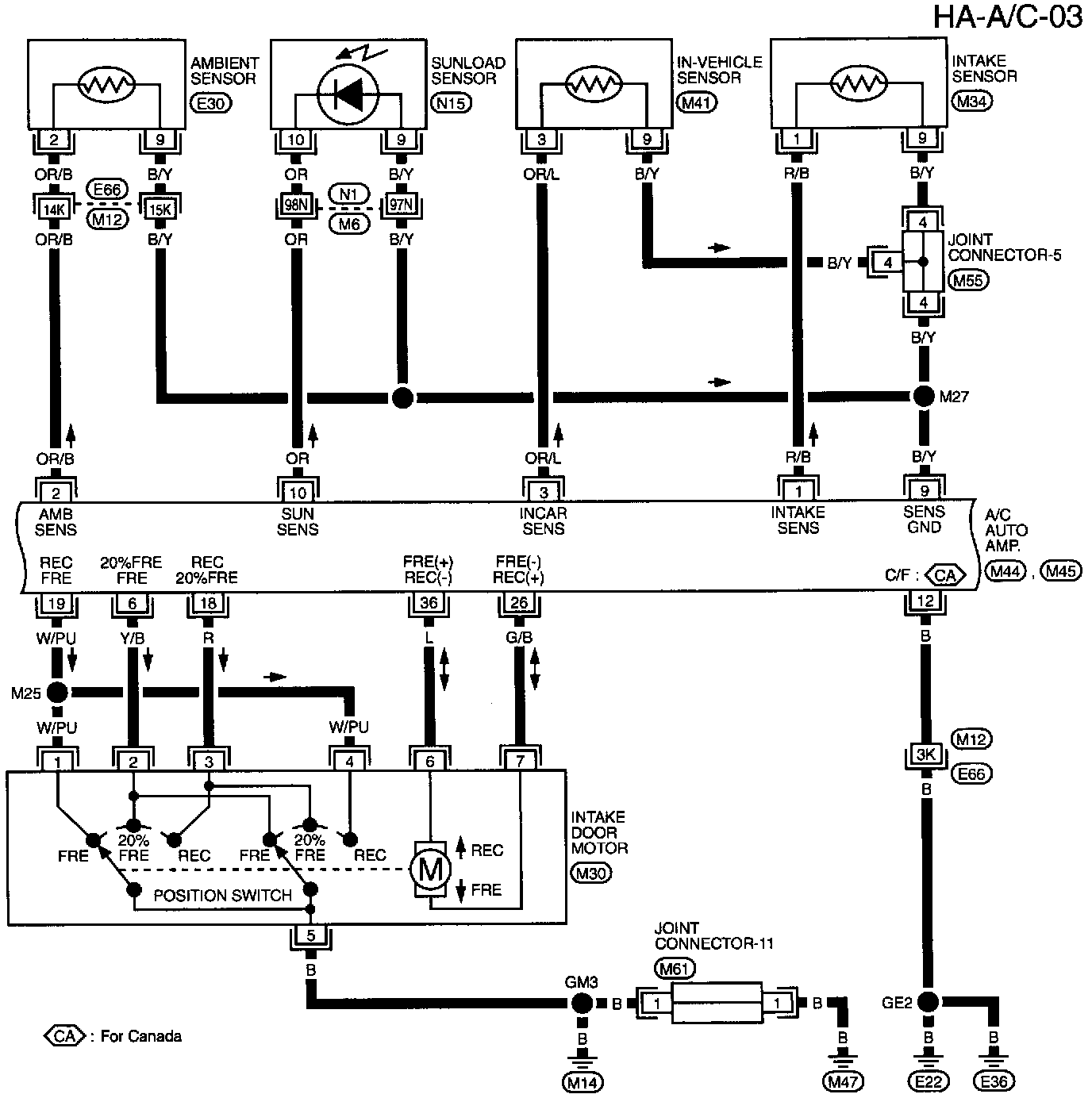

(Part 3 of 5)
A/C Auto AMP
Ambient Sensor
In Vehicle Sensor
Intake Door Motor
Intake Sensor
Joint Connector 5, 11
Sun Load Sensor

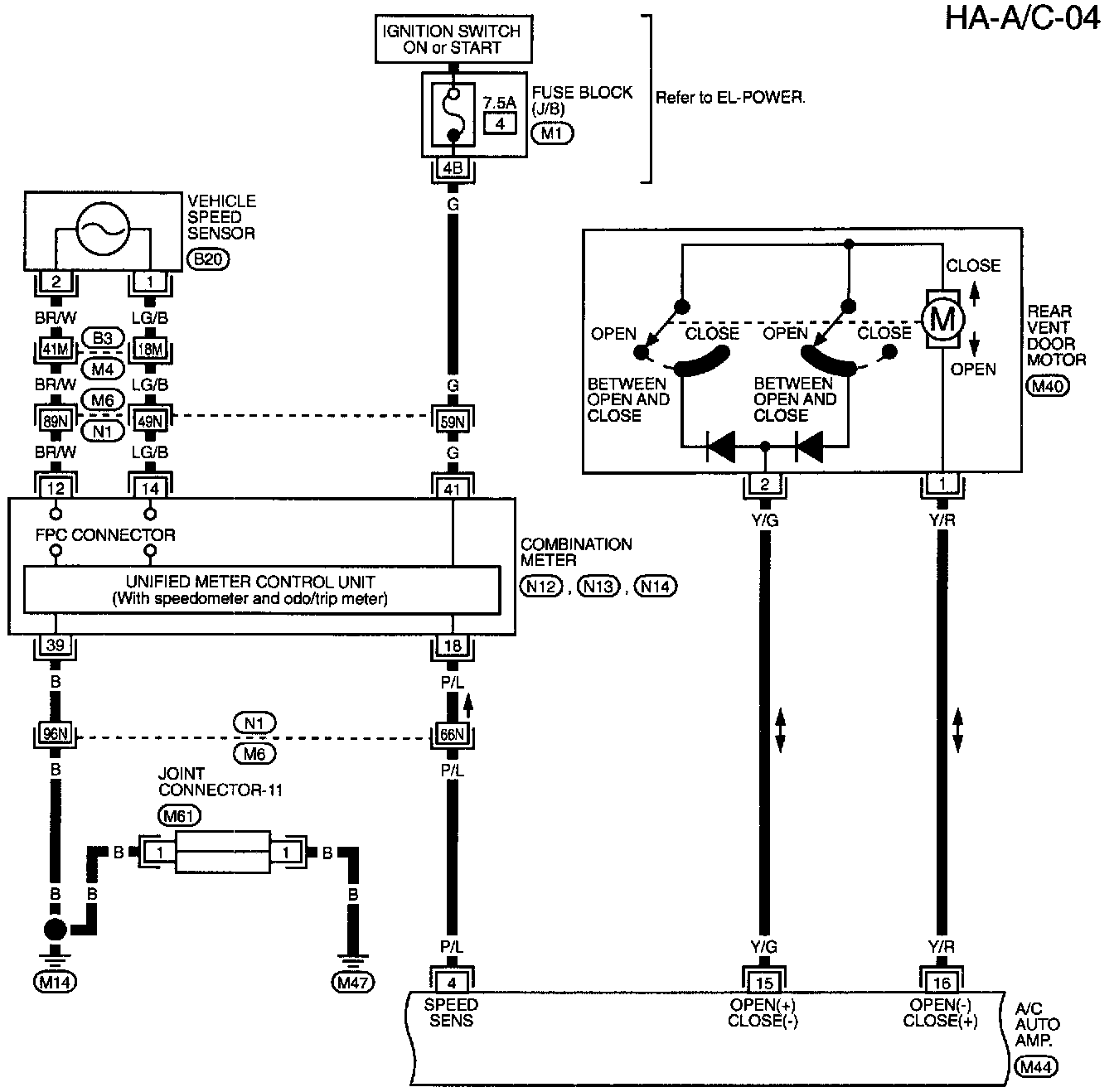

(Part 4 of 5)
A/C Auto AMP
Combination Meter
Fuse Block (J/B)
Joint Connector 11
Rear Vent Door Motor




(Part 5 of 5)
A/C Auto AMP
Air Conditioner Relay
Compressor
Engine Control Module
Thermal Transmitter
Triple Pressure Switch

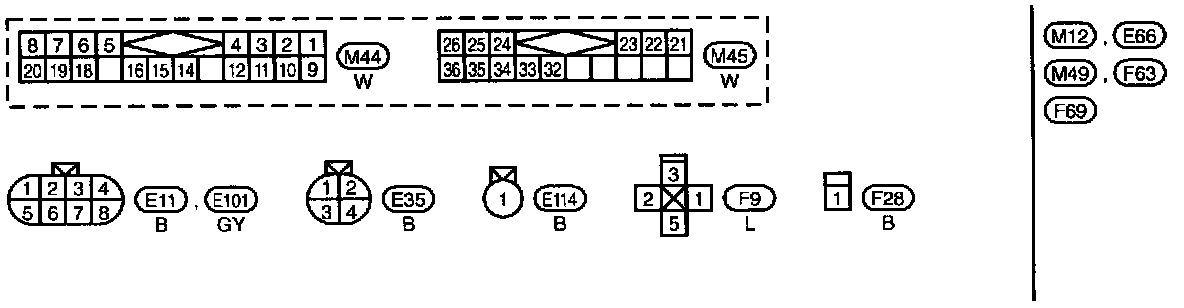

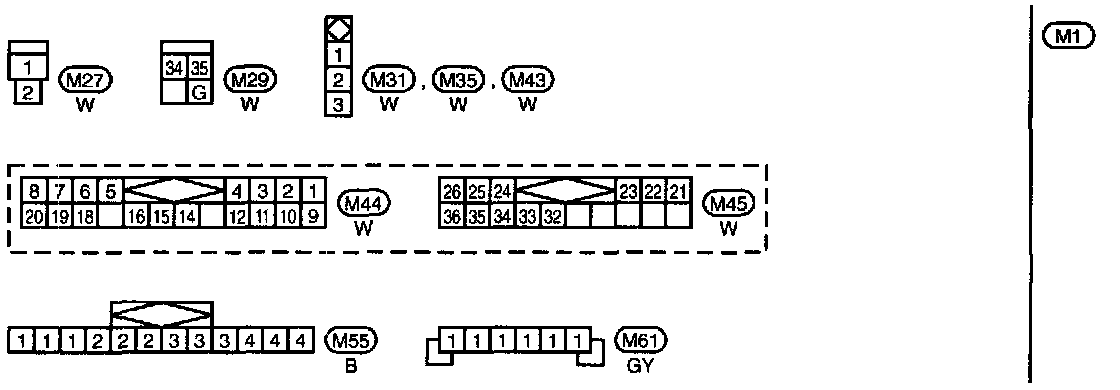

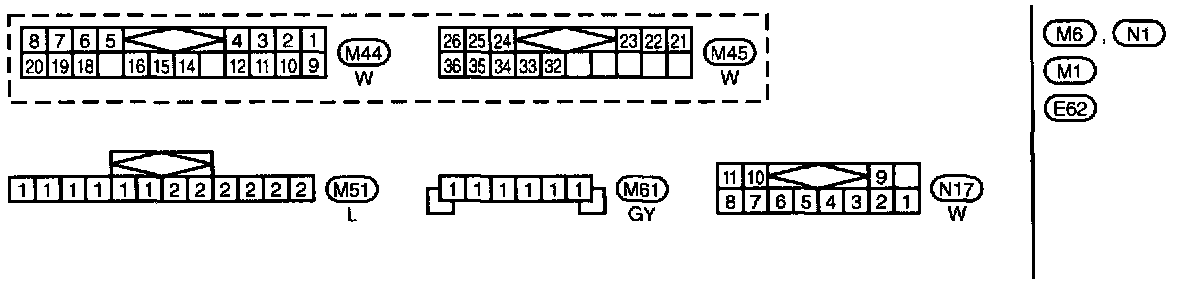

Circuit Connectors





B3, E66, M4, M6, M12, N1 Super Multiple Junction Terminal Arrangement





F69 Electrical Units Terminal Arrangement





F63, M49, Super Multiple Junction Terminal Arrangement





E62, M1, Fuse Block Junction Box Terminal Arrangement
