Ignition System

(Part 1 of 3)
Battery
Condenser
ECM (ECCS Control Module)

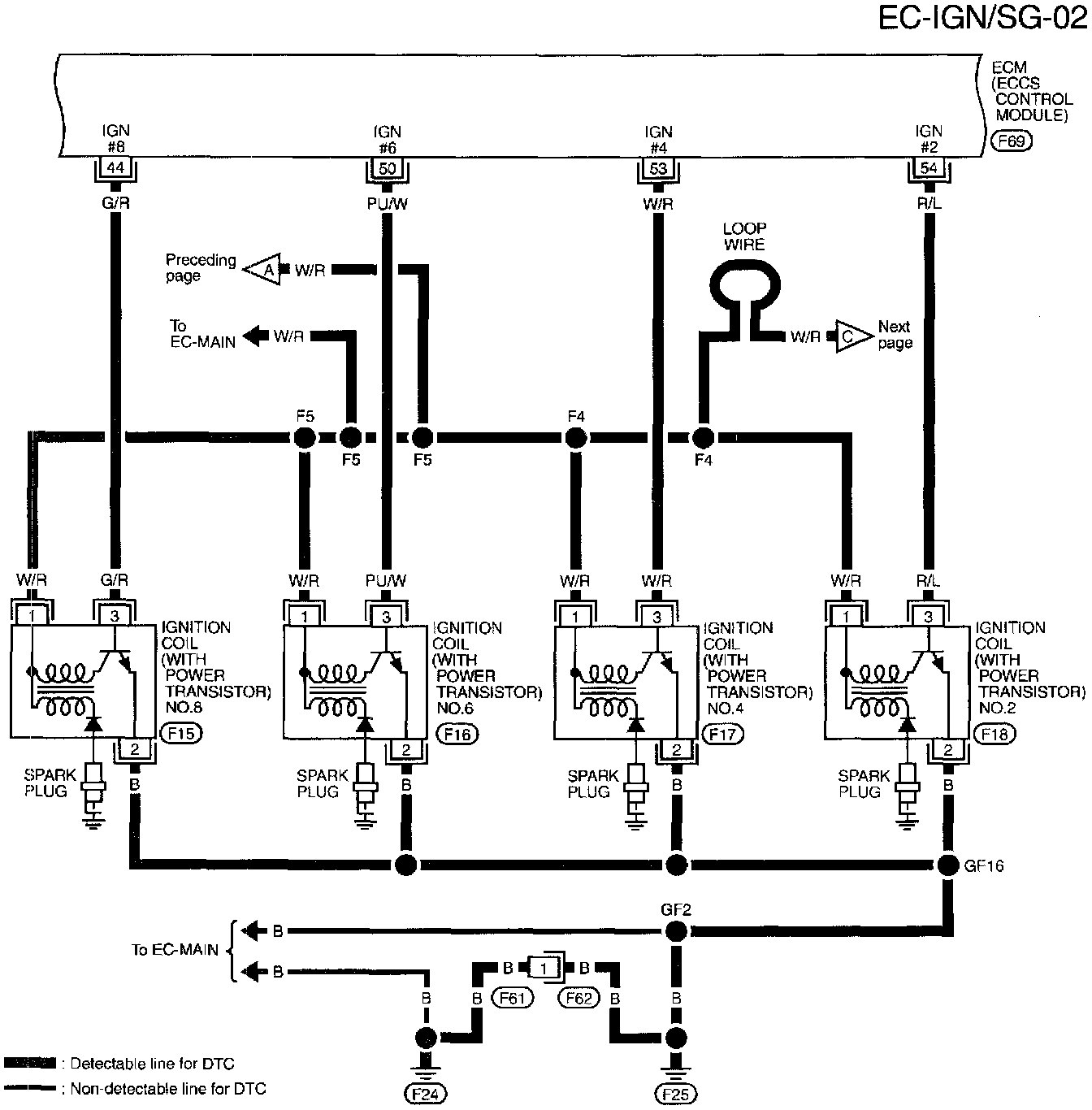

(Part 2 of 3)
ECM (ECCS Control Module)
Ignition Coil (With Power Transistor No.2)
Ignition Coil (With Power Transistor No.4)
Ignition Coil (With Power Transistor No.6)
Ignition Coil (With Power Transistor No.8)

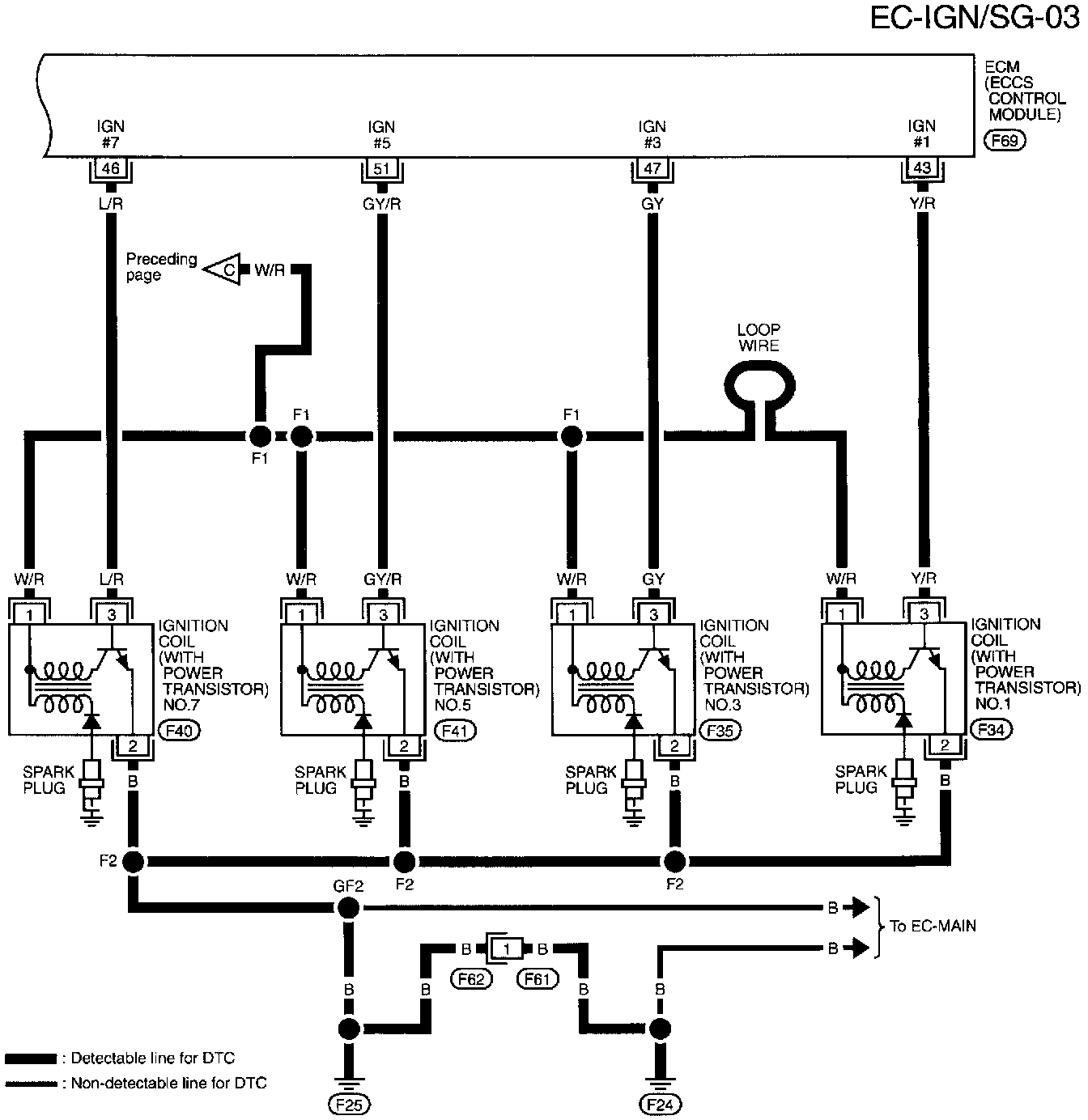

(Part 3 of 3)
ECM (ECCS Control Module)
Ignition Coil (With Power Transistor No.1)
Ignition Coil (With Power Transistor No.3)
Ignition Coil (With Power Transistor No.5)
Ignition Coil (With Power Transistor No.7)

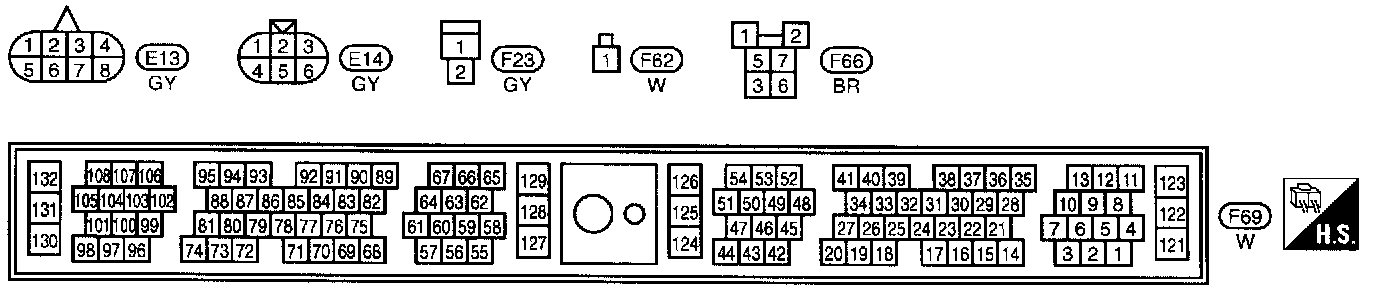

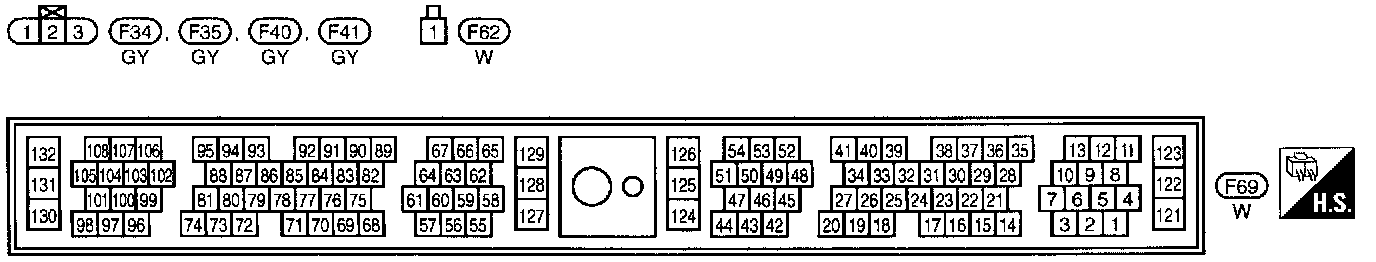

Circuit Connectors
