Home >> Infiniti >> 1999 >> Q45t V8-4130cc 4.1L DOHC MFI (VH41) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Vehicle Speed Sensor

Vehicle Speed Sensor

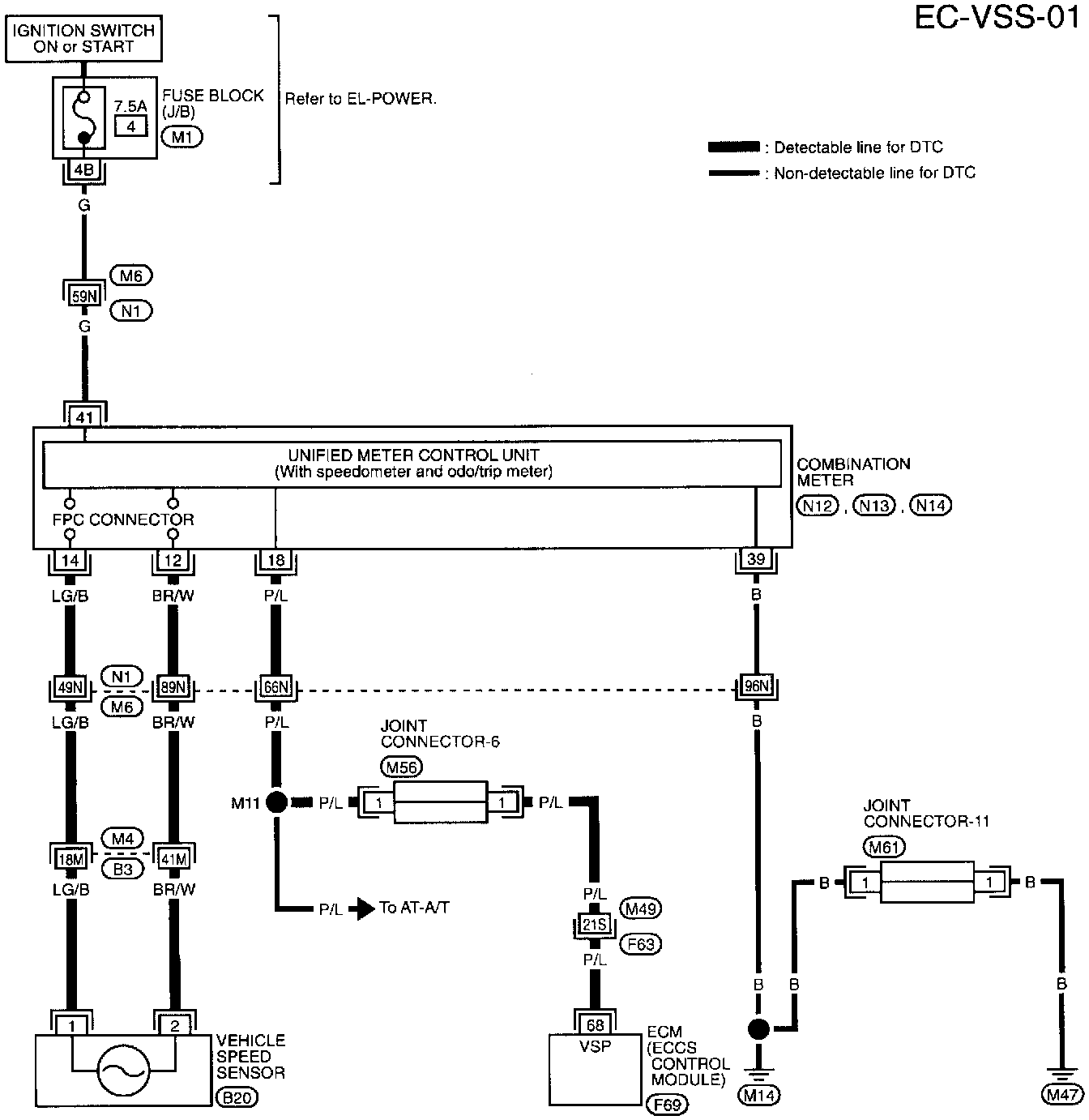

Circuit Diagram

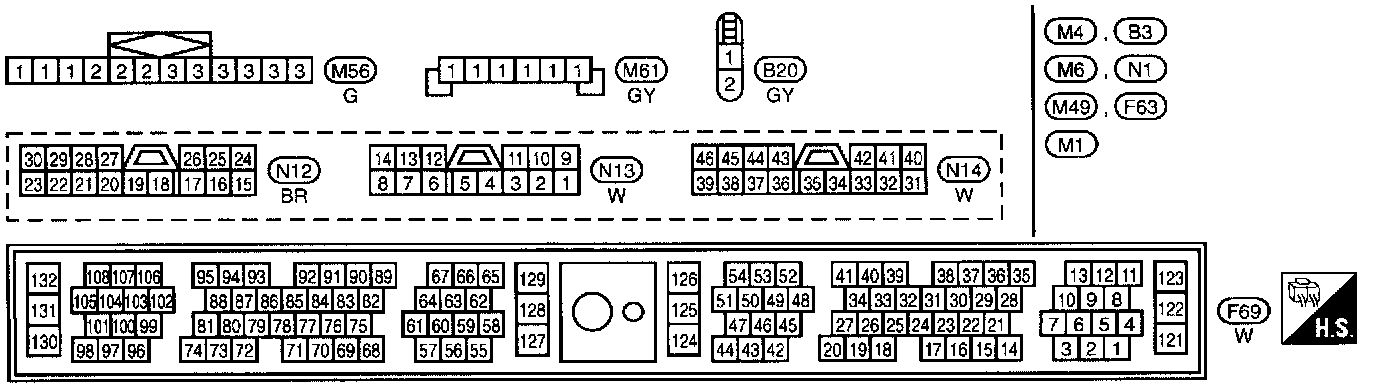

Circuit Connectors





B3, M4, M6, N1 Super Multiple Junction Terminal Arrangement





F63, M49 Super Multiple Junction Terminal Arrangement





M1 Terminal Arrangement
