Intake Door

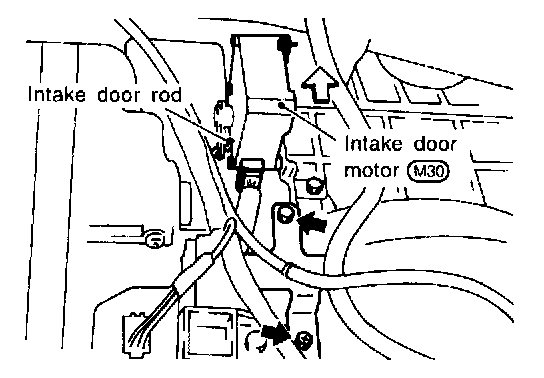

1. Install intake door motor to intake unit and connect it to body harness.
2. Set up code No.41 in Self-diagnosis STEP 4.
3. Move intake door link by hand and hold it at REC position.

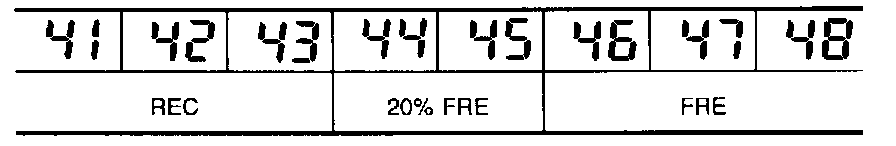

4. Attach intake door lever to rod holder.





5. Check intake door operates properly when changing code No. 41 to 48 by pushing (DEF) switch.
