Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value
PREPARATION

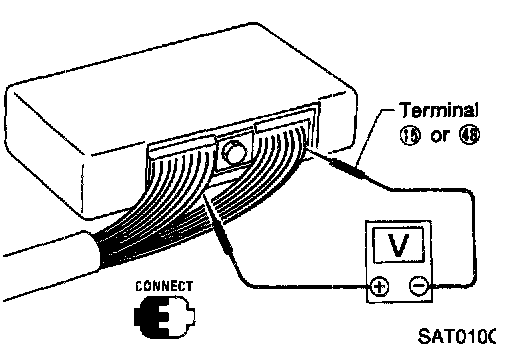

- Measure voltage between each terminal and terminal (15) or (48) by following "TCM INSPECTION TABLE".

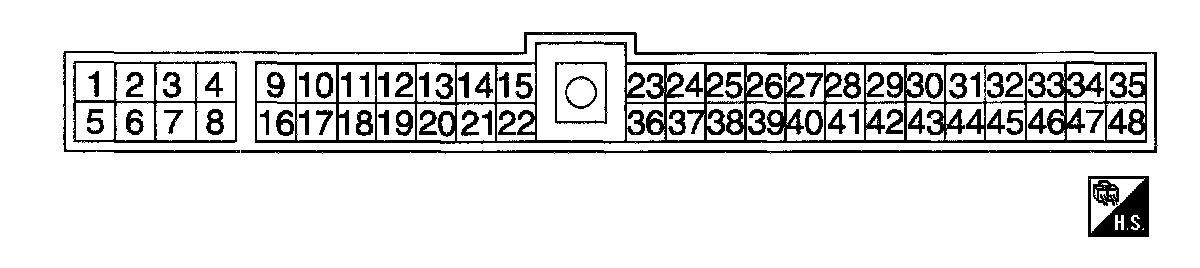

TCM HARNESS CONNECTOR TERMINAL LAYOUT

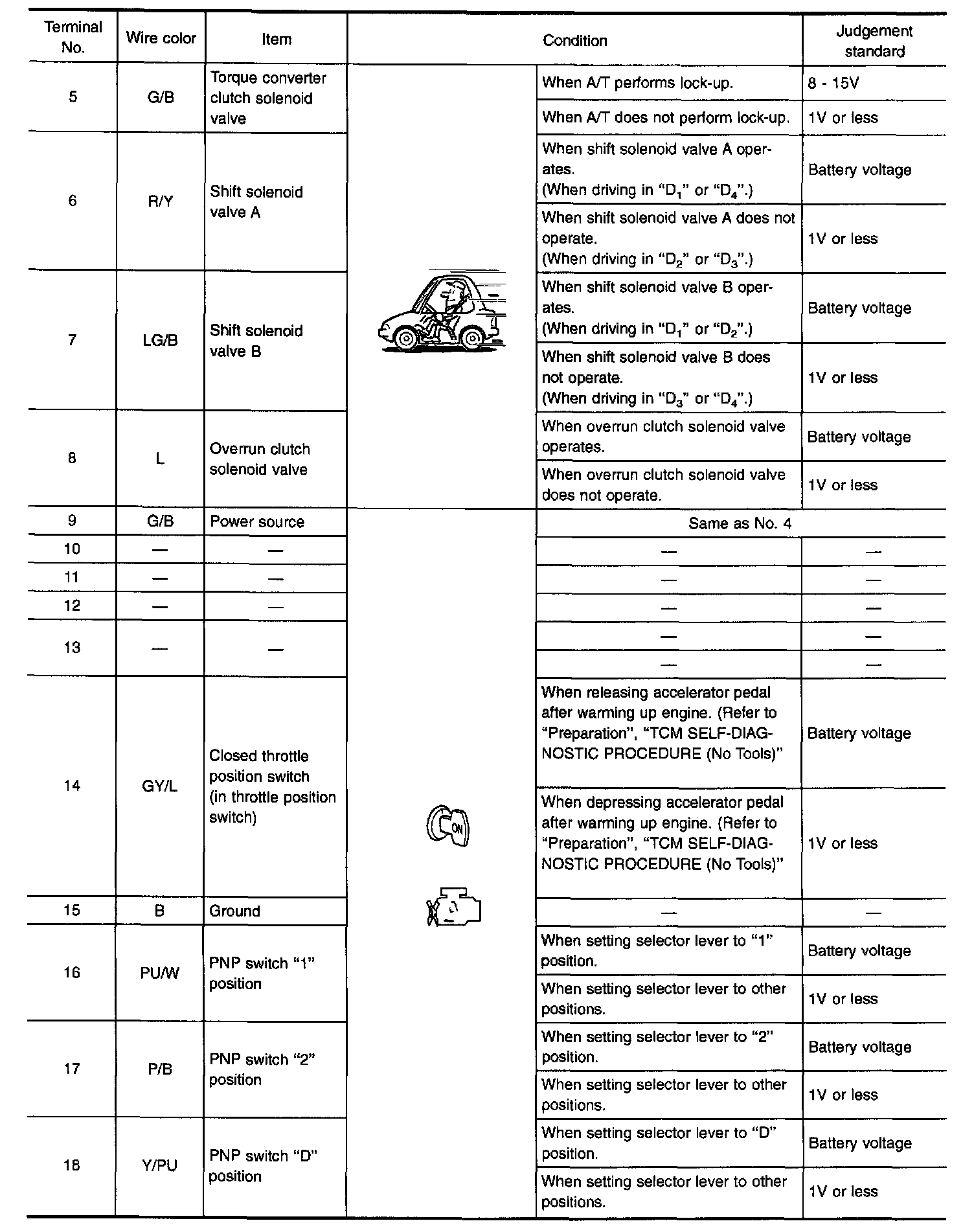

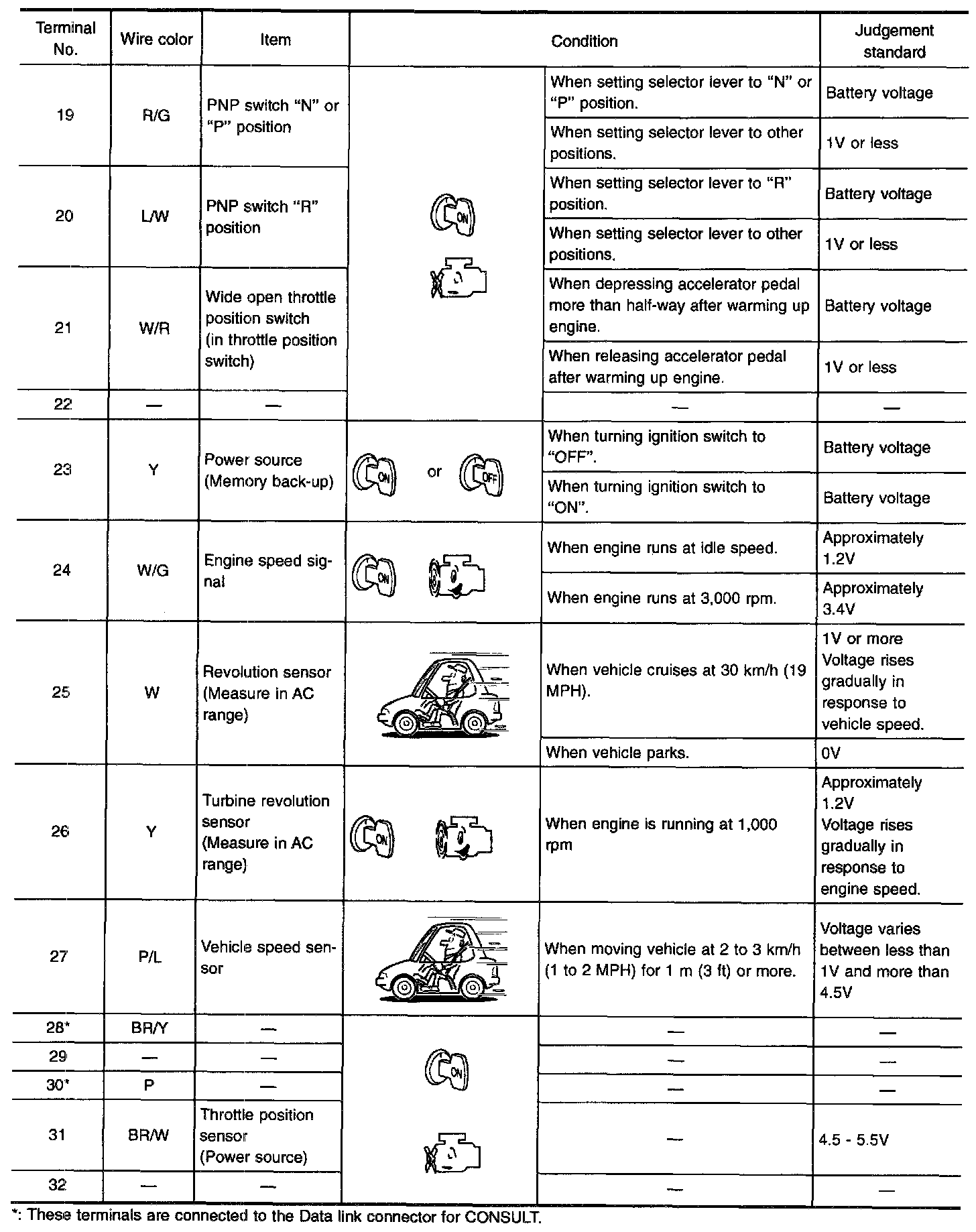

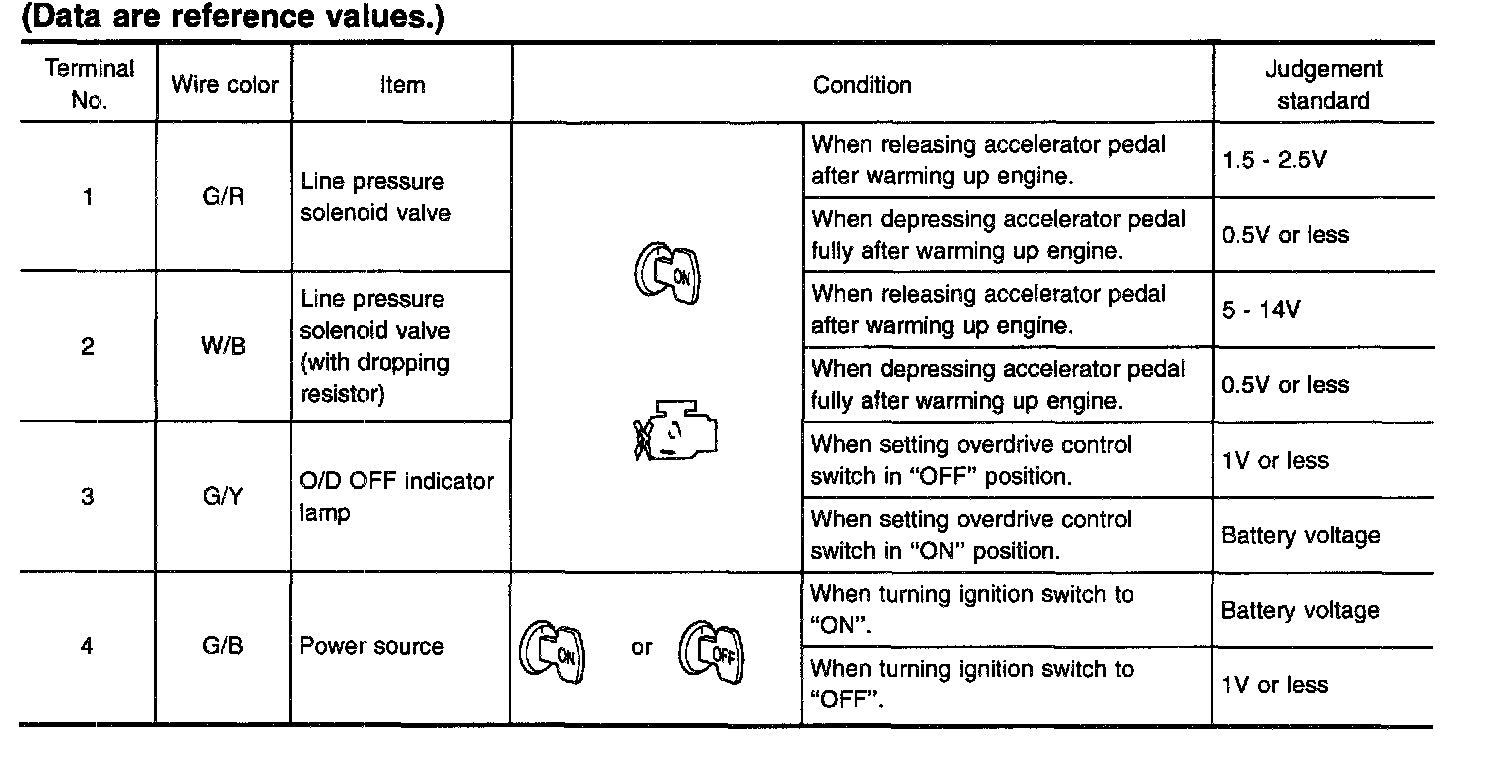

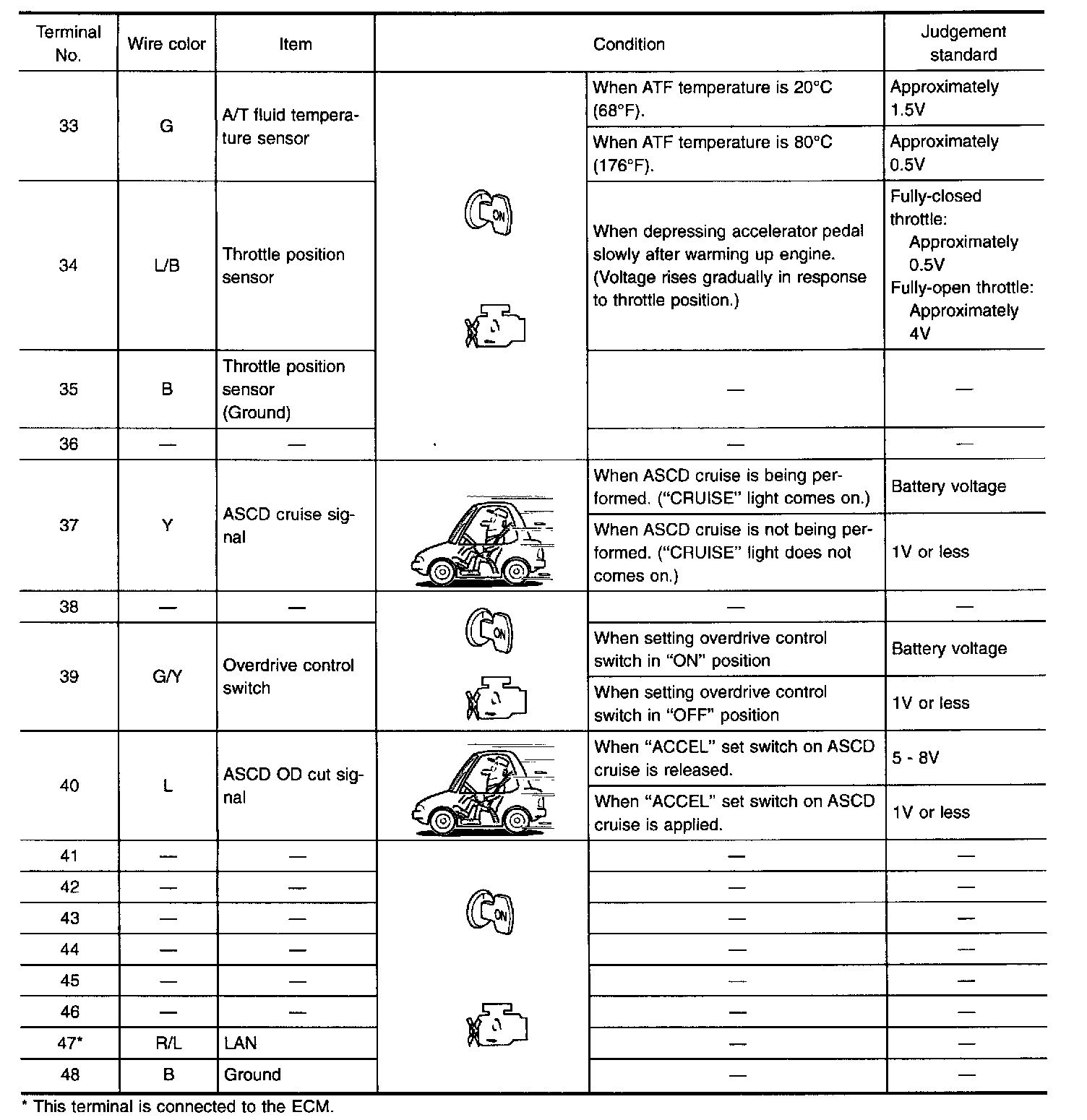

TCM INSPECTION TABLE
