Steering Column

DIMENSIONS





Length:

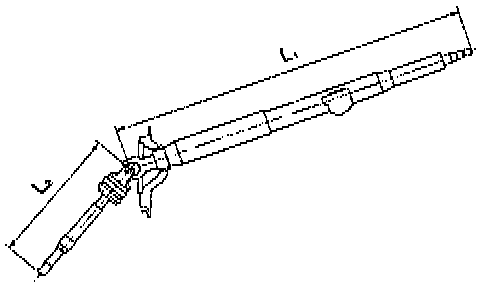

Upper Shaft "L1": 633 - 668 mm (24.92 - 26.30 inch)
Lower Shaft "L2": 334.5 mm (13.17 inch)

TIGHTENING SPECIFICATIONS
Column Mounting Bolts:
Upper And Lower Fasteners: 13 - 18 Nm (108 - 156 inch lbs.)
Nuts At Firewall: 9 - 12 Nm (78 - 104 inch lbs.)
Jacket Upper Tube Assembly Bolts: 16 - 21 Nm (12 - 15 ft. lbs.)
Lower Joint To:
Lower Shaft: 16 - 21 Nm (12 - 15 ft. lbs.)
Steering Gear: 24 - 29 Nm (17 - 22 ft. lbs.)
Upper Shaft Nut: 25 - 34 Nm (18 - 25 ft. lbs.)
Upper Shaft To Upper Joint: 16 - 21 Nm (12 - 15 ft. lbs.)
