Component Tests and General Diagnostics

REAR AXLE AND REAR SUSPENSION PARTS
Check axle and suspension parts for excessive play, wear or damage.





- Shake each rear wheel to check for excessive play.

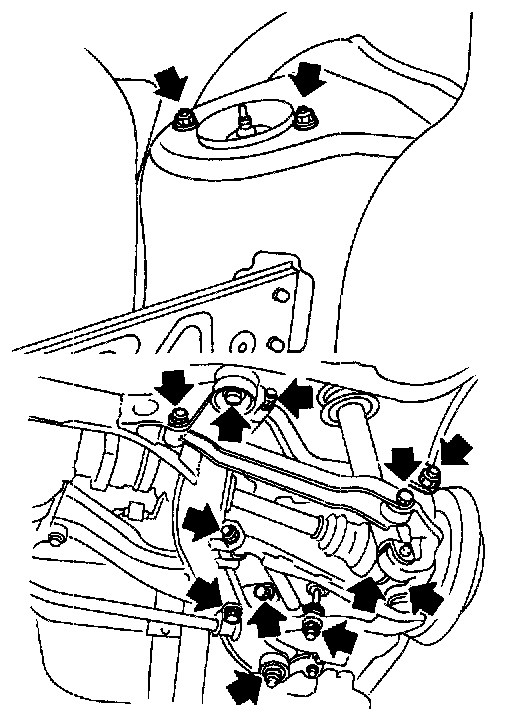

- Retighten all nuts and bolts to the specified torque.

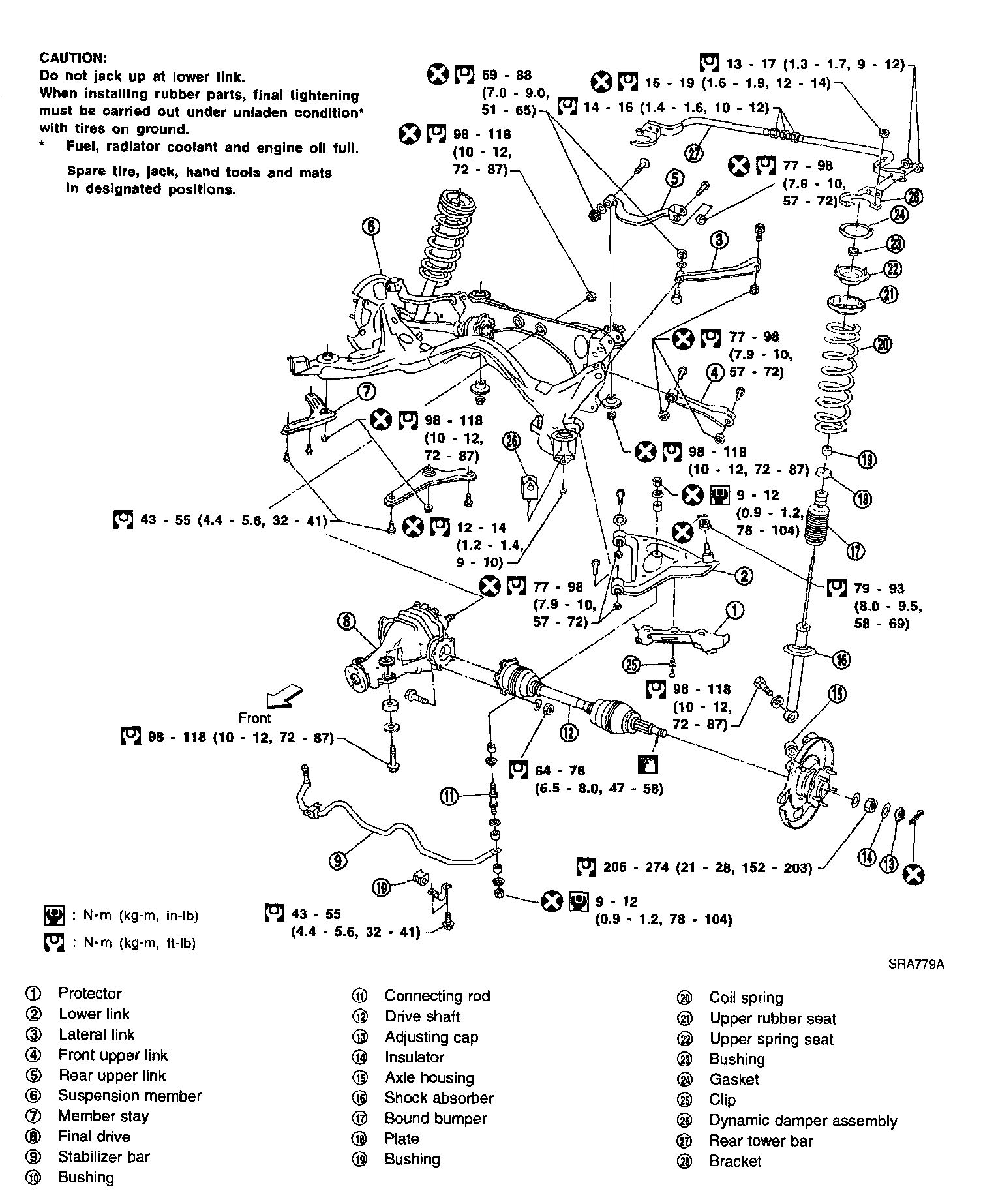

Tightening torque: Refer to image.

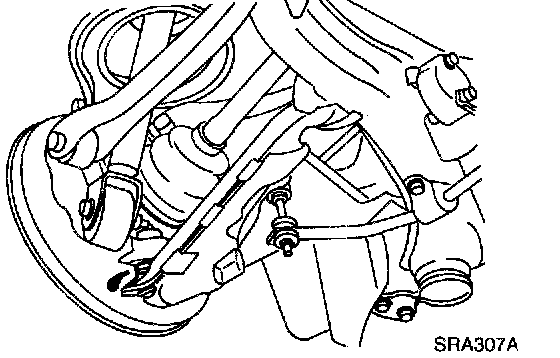

- Make sure that cotter pin is inserted.





- Check shock absorber for oil leakage or other damage.
- Check wheelarch height. Refer to Front Axle and Front Suspension Parts.





- Check suspension ball joint for grease leakage and ball joint dust cover for cracks or other damage.
