Door Mirror

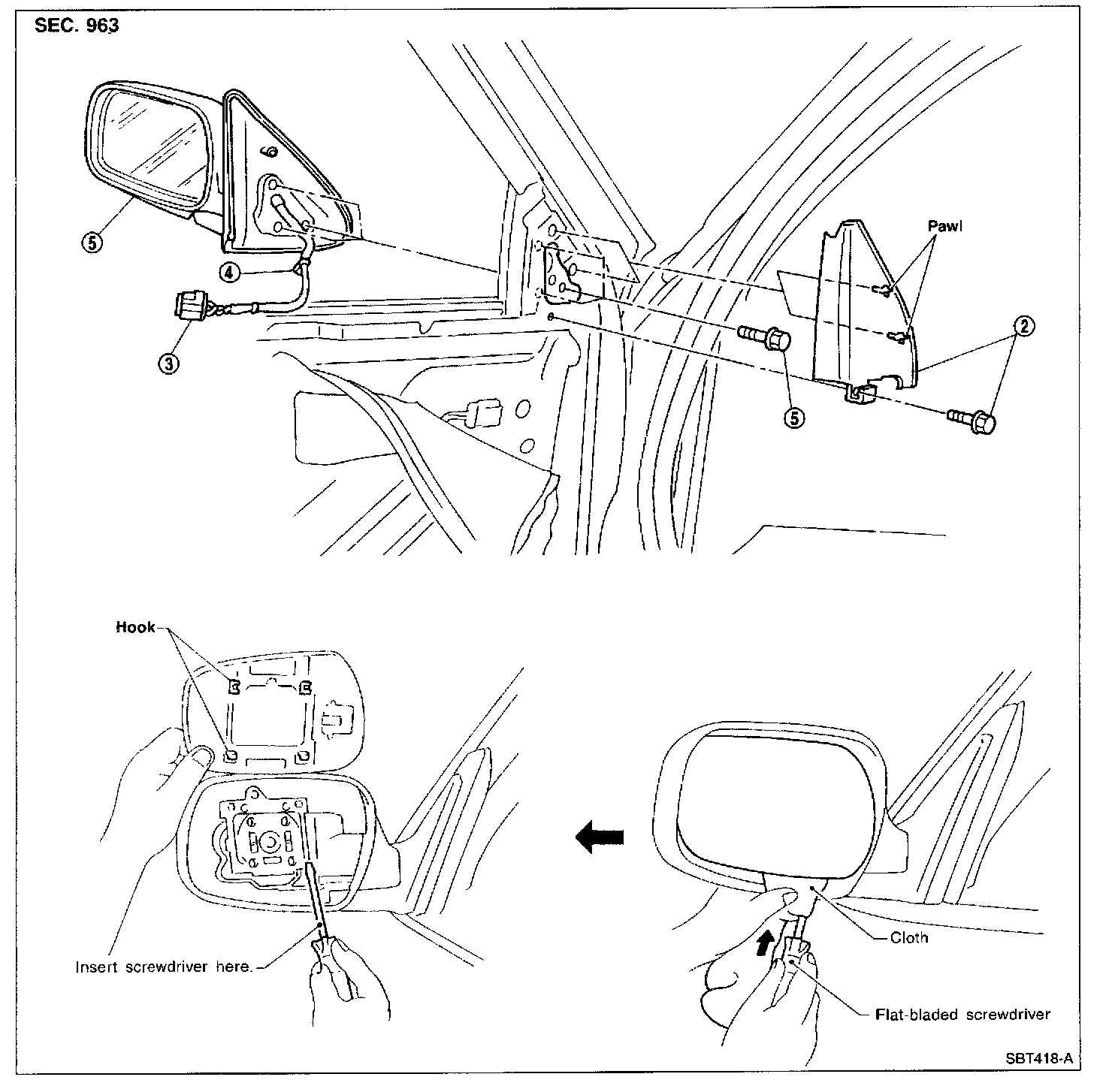

CAUTION: Be careful not to scratch door rearview mirror body.

1. Remove front door trim. Refer to "DOOR TRIM" for details.
2. Remove bolt securing inner cover, then remove inner cover.
3. Disconnect door mirror harness connector.
4. Remove door mirror harness clip.
5. Remove bolts securing door mirror, then remove door mirror assembly.
