Fuse and Fusible Link Box
Fuse and Fusible Link Box

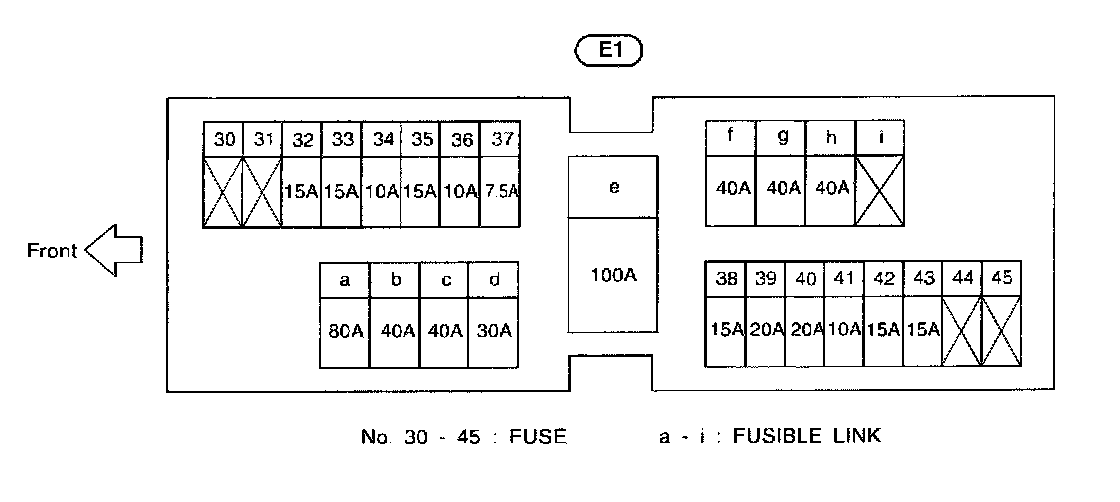

E1 Fuse And
Fusible Link
Box Terminal Arrangement
