Cruise Control
Schematic
Circuit Diagrams

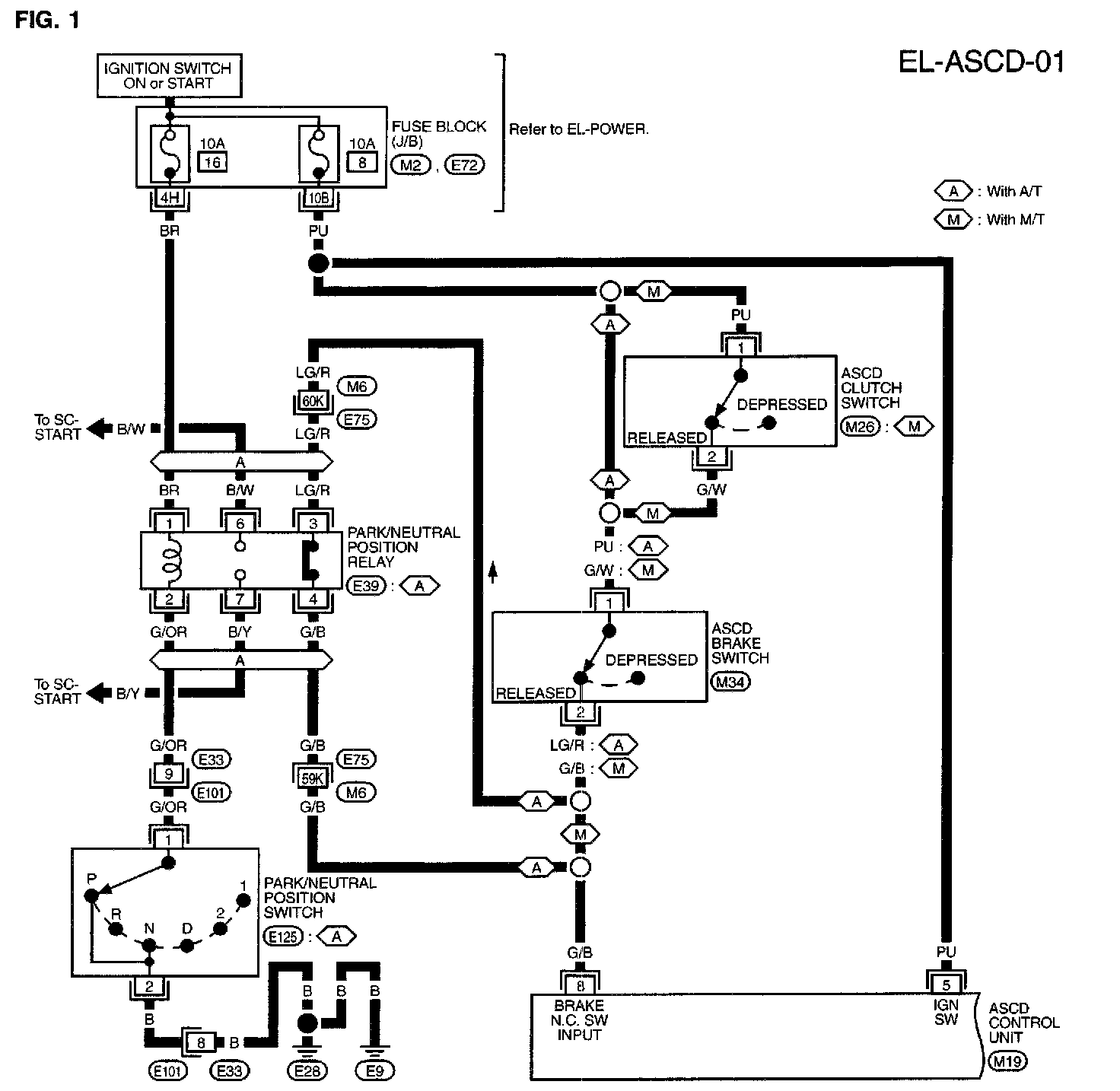

EL-ASCD-01:
(Part 1 of 4)
Fuse Block (J/B)
ASCD Clutch Switch
Park/Neutral Position Relay
ASCD Brake Switch
Park/Neutral Position Switch
ASCD Control Unit

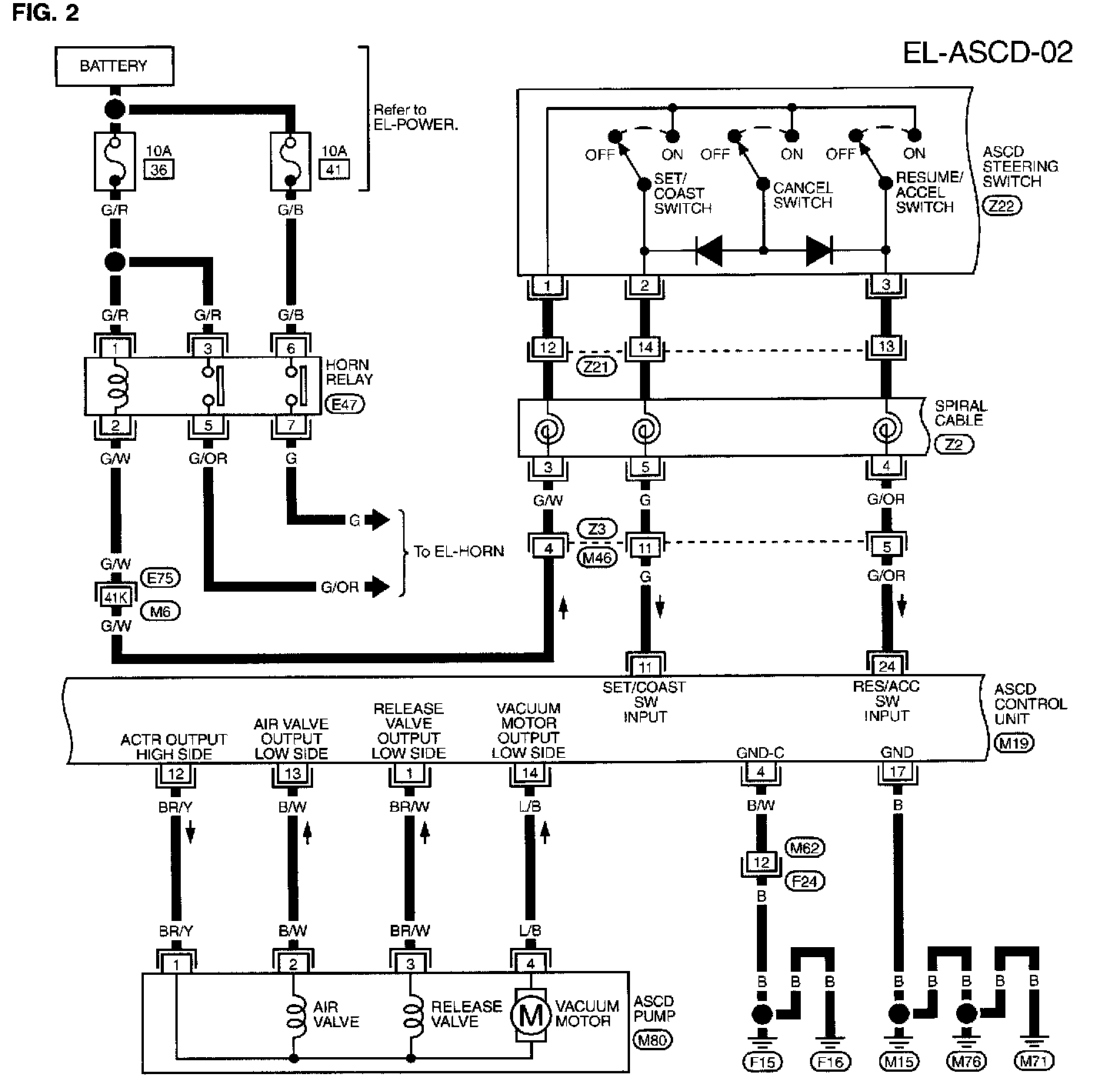

EL-ASCD-02:
(Part 2 of 4)
ASCD Steering Switch
Horn Relay
Spiral Cable
ASCD Control Unit
ASCD Pump
EL-ASCD-03:
(Part 3 of 4)
Fuse Block (J/B)
ASCD Steering Switch
Spiral Cable
Stop Lamp Switch
ASCD Control Unit
TCM (Transmission Control Module)

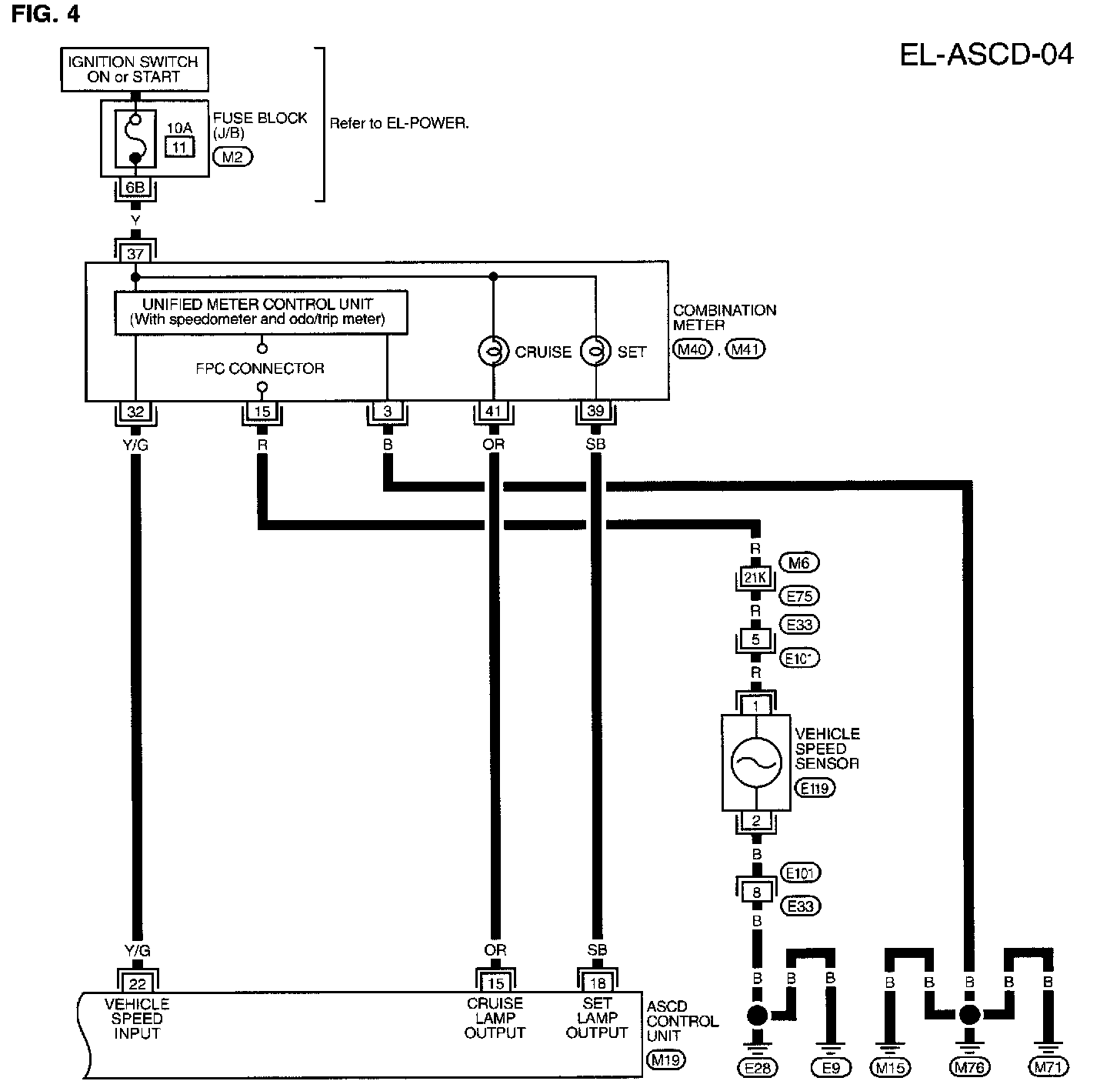

EL-ASCD-04:
(Part 4 of 4)
Fuse Block (J/B)
Combination Meter
Vehicle Speed Sensor
ASCD Control Unit
Circuit Connectors
M6,E75 Connector Views:
M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:
E75, M2, E72, M4, F26 Super Multiple Junction Box (SMJ), Fuse Block - Junction Box (J/B) and Electrical Units Terminal Arrangement
