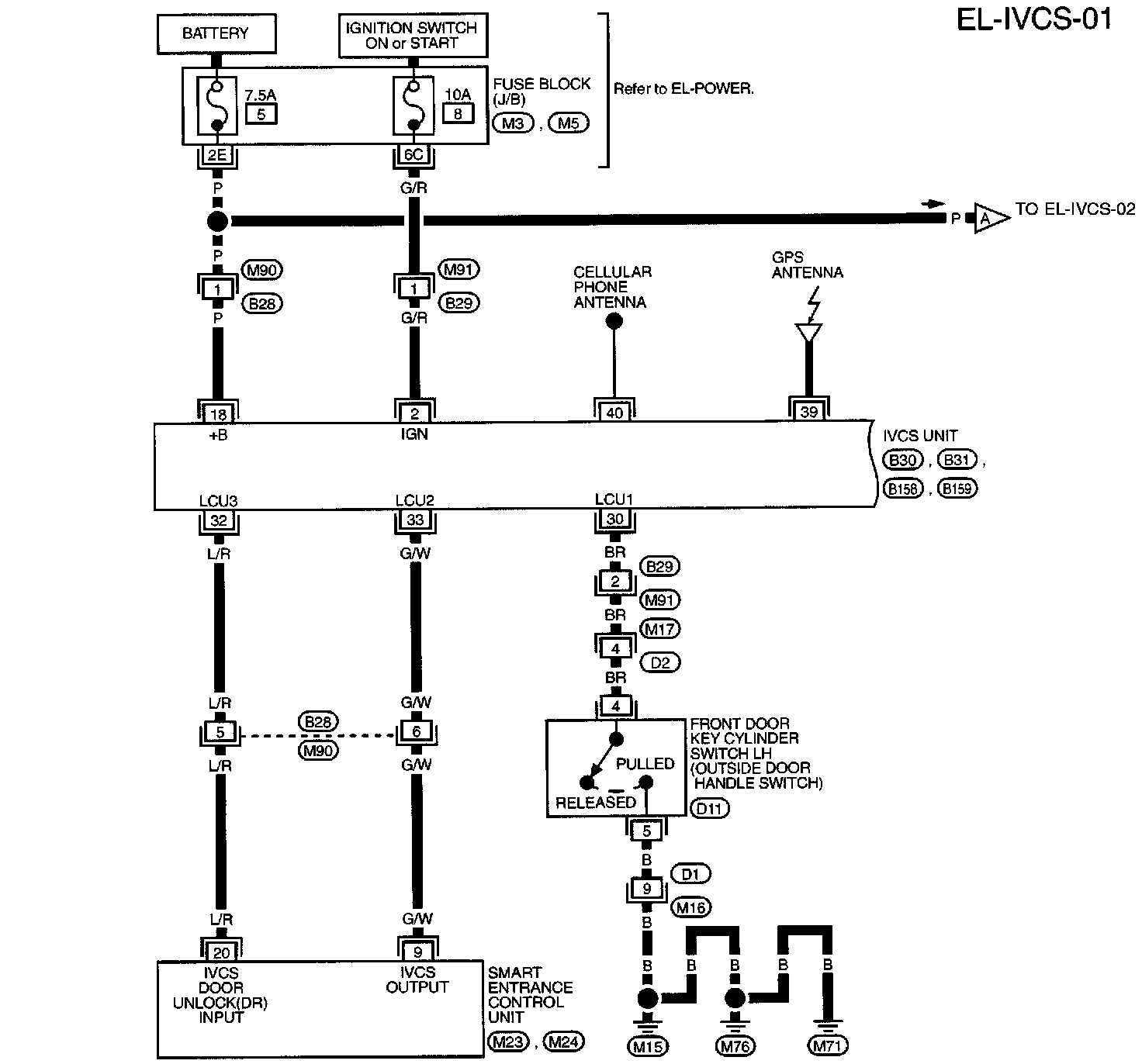

EL-IVCS-01
EL-IVCS-01:
EL-IVCS-01
Circuit Connectors

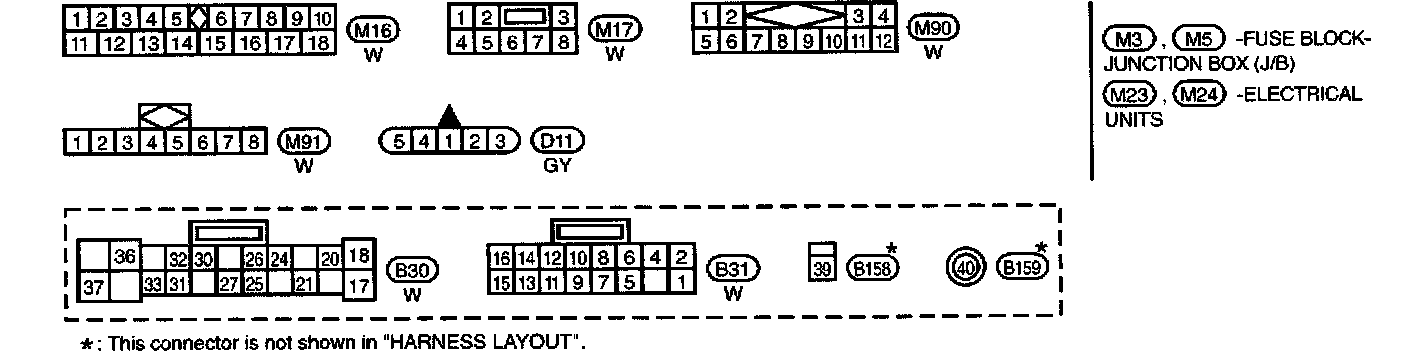

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:
M3, M5, M23, M24 Fuse Block - Junction Box (J/B) and Electrical Units Terminal Arrangement
EL-IVCS-01
Circuit Connectors
M3, M5, M23, M24 Fuse Block - Junction Box (J/B) and Electrical Units Terminal Arrangement
