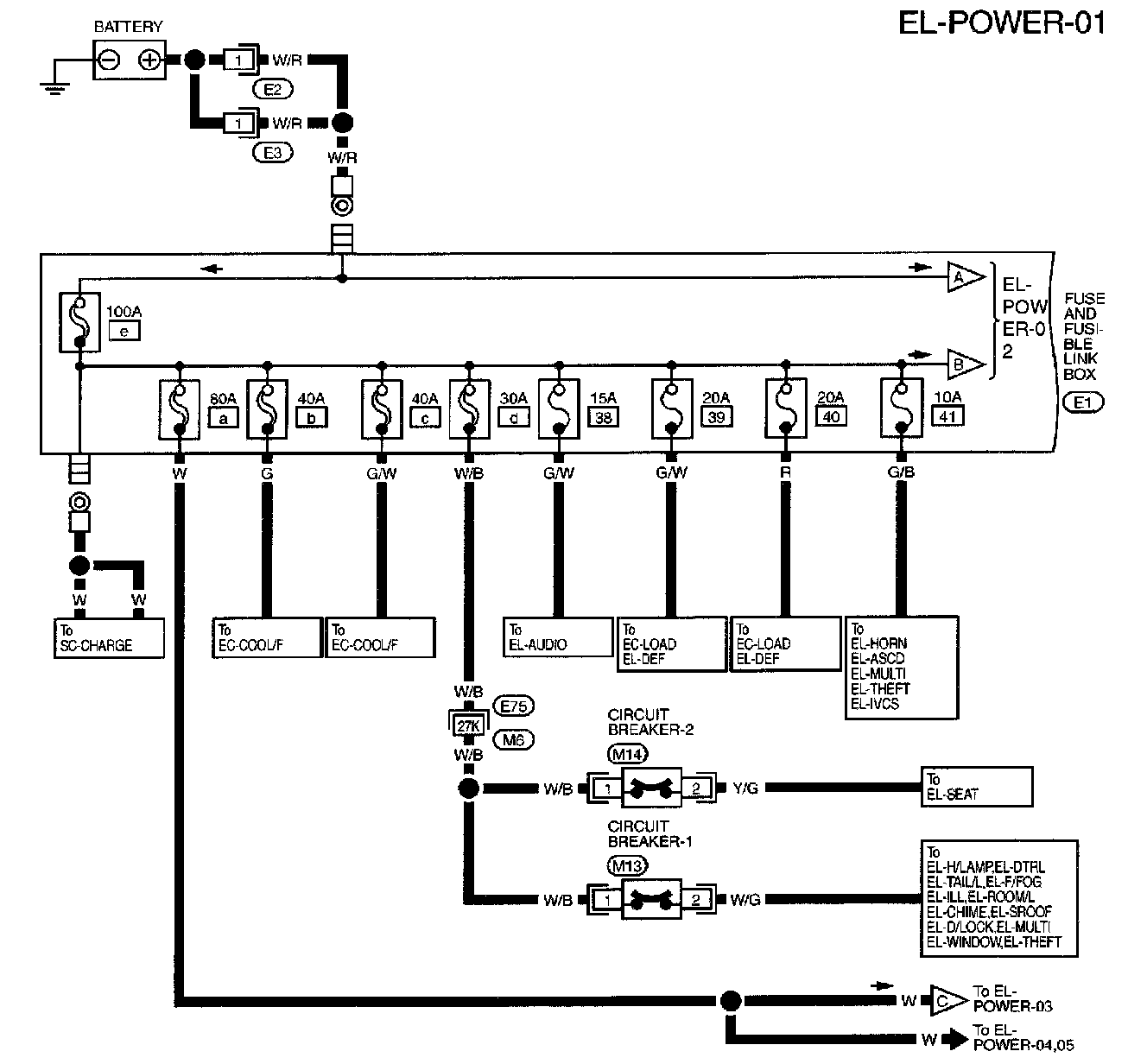

EL-POWER-01
EL-POWER-01
EL-POWER-01:
EL-POWER-01
Circuit Connectors
M6,E75 Connector Views:
E75 Super Multiple Junction (SMJ) Terminal Arrangement
