Instrument Cluster / Carrier

Schematic

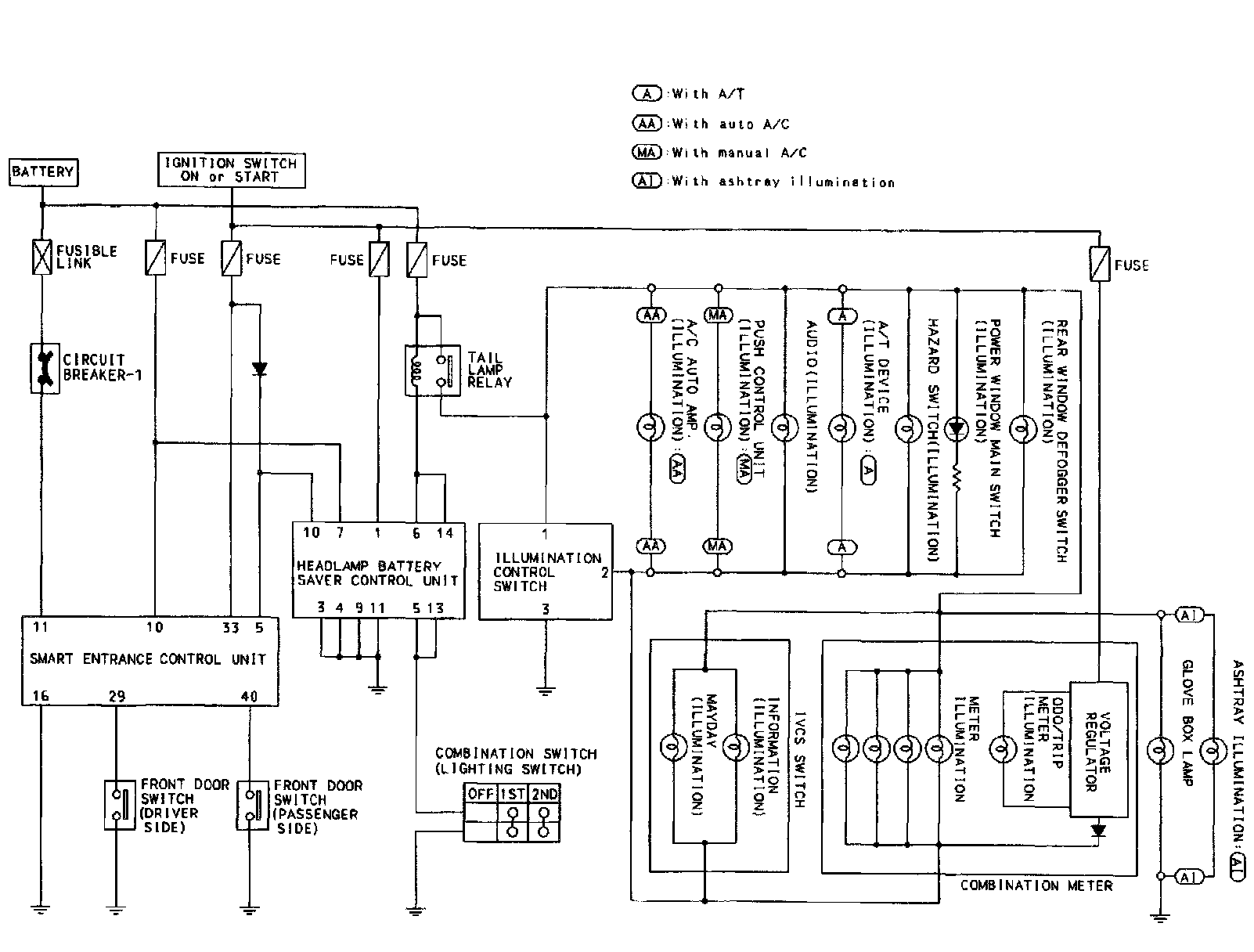

Circuit Diagram

EL-ILL-01:

(Part 1 of 4)
Fuse Block (J/B)
Circuit Breaker-1
Smart Entrance Control Unit
Headlamp Battery Saver Control Unit
Front Door Switch (Driver Side)

EL-ILL-02:

(Part 2 of 4)
Tail Lamp Relay
Fuse Block (J/B)
Headlamp Battery Saver Control Unit
Combination Switch (Lighting Switch)
Illumination Control Switch
A/C Auto Amp.(Illumination)
Push Control Unit (Illumination)

EL-ILL-03:

(Part 3 of 4)
Audio (Illumination)
Hazard Switch (Illumination)
Rear Window Defogger Switch (Illumination)
A/T Device (Illumination)
Power Window Main Switch (Illumination)
IVCS (Illumination)

EL-ILL-04:

(Part 4 of 4)

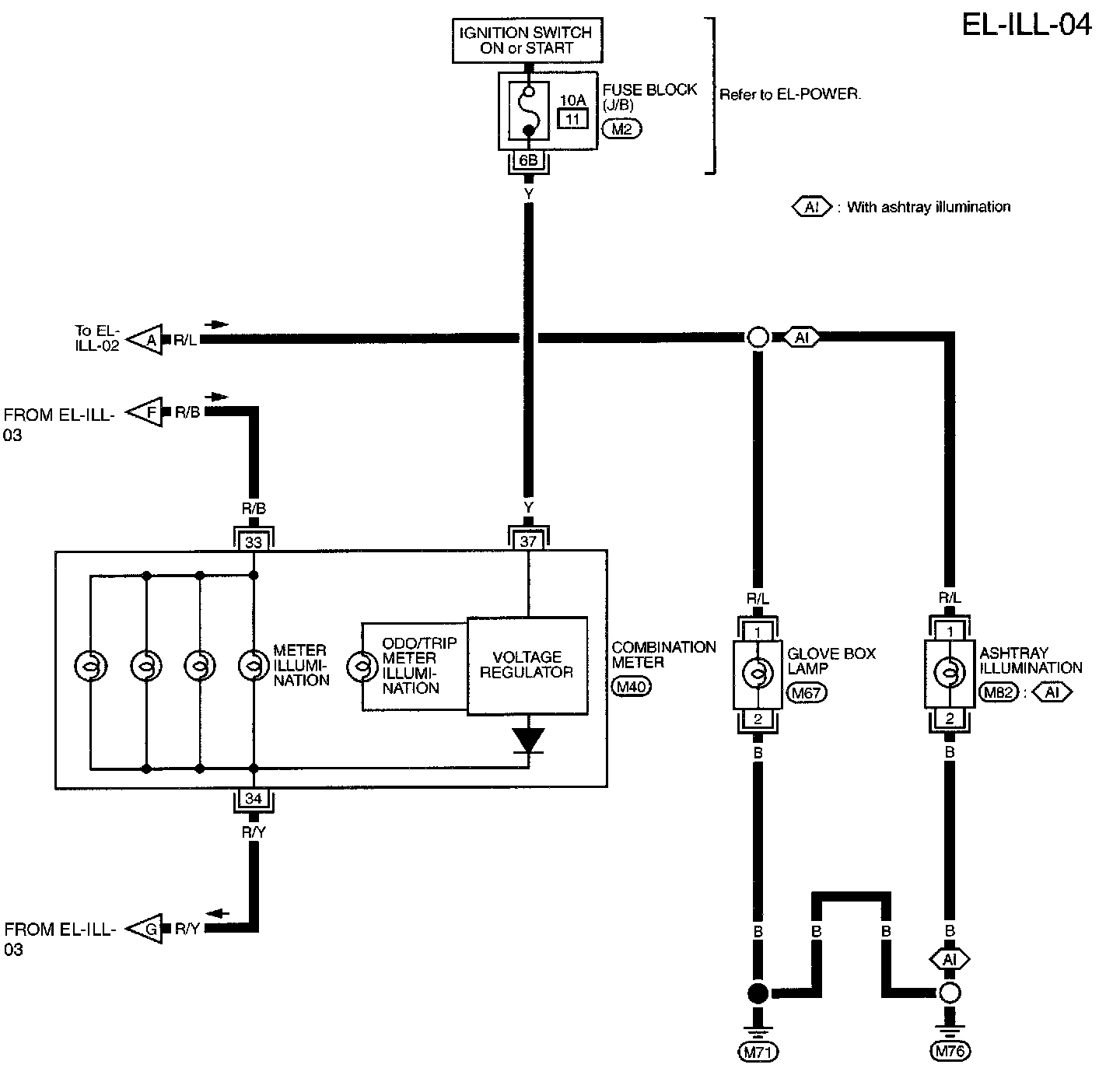

Combination Meter
Glove Box Lamp
Ashtray Illumination













Circuit Connectors

M6,E75 Connector Views:

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

E75, M2, M3, E72, M4 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
