Seat Temperature Element

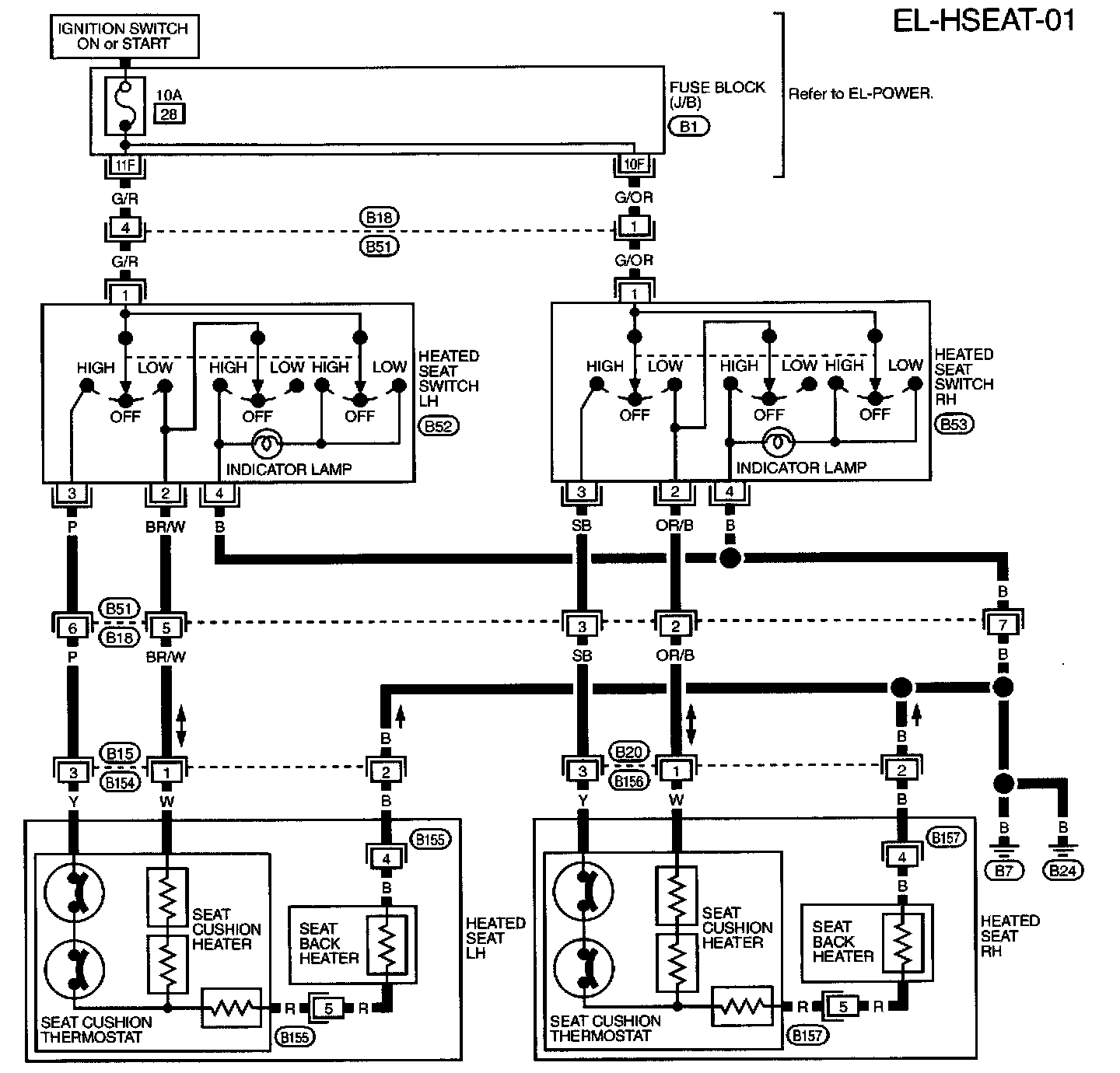

EL-HSEAT-01:




Circuit Diagrams




Circuit Connectors

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:




B1 Fuse Block - Junction Box (J/B) Terminal Arrangement
