Electrical Diagrams

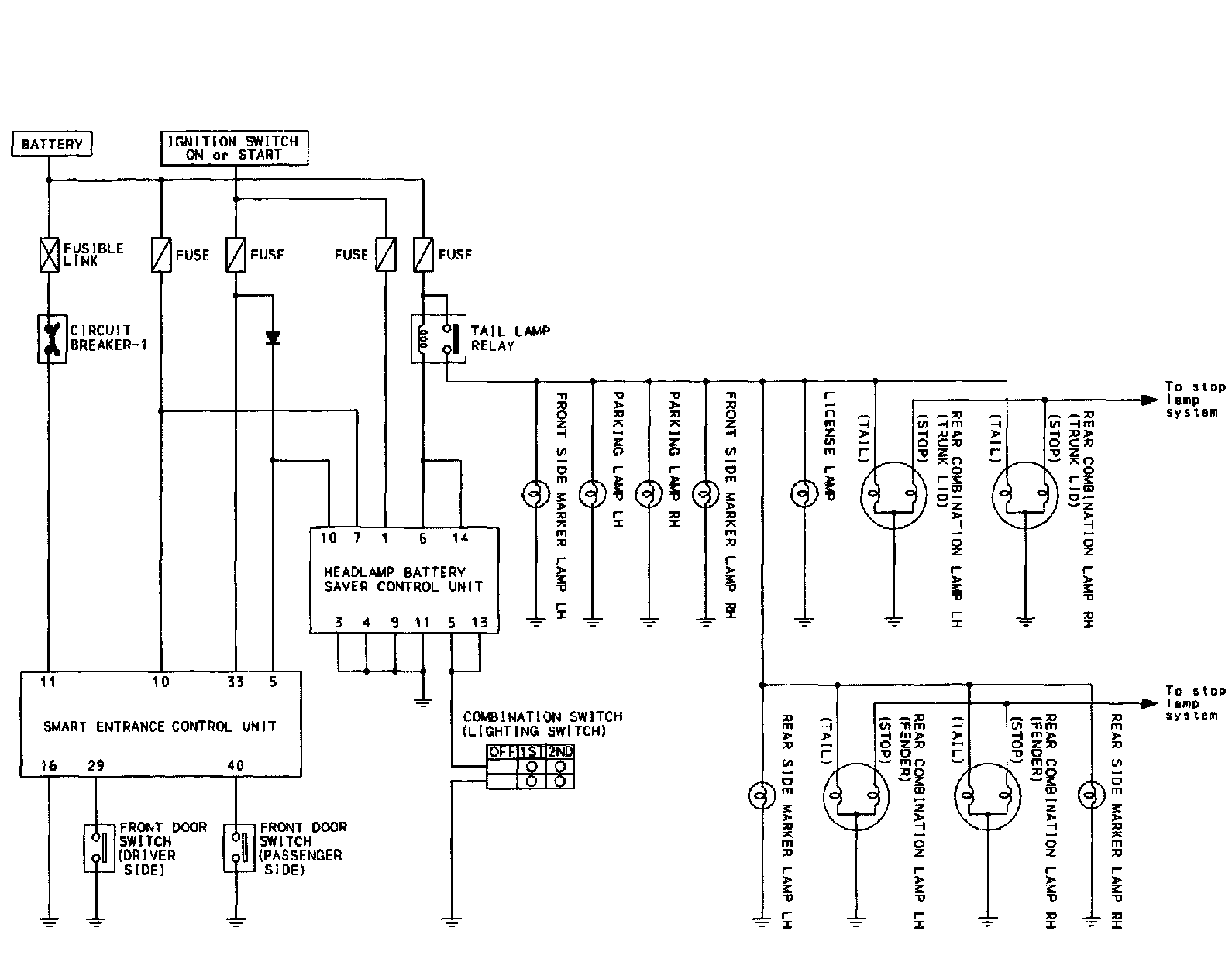

Schematic

Circuit Diagrams

EL-TAIL/L-01:

(Part 1 of 3)
Fuse Block (J/B)
Circuit Breaker-1
Diode
Smart Entrance Control Unit
Headlamp Battery Saver Control Unit
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)

EL-TAIL/L-02:

(Part 2 of 3)
Tail Lamp Relay
Fuse Block (J/B)
Headlamp Battery Saver Control Unit
Front Side Marker Lamp LH
Parking Lamp LH
Parking Lamp RH
Front Side Marker Lamp RH
Combination Switch (Lightning Switch)

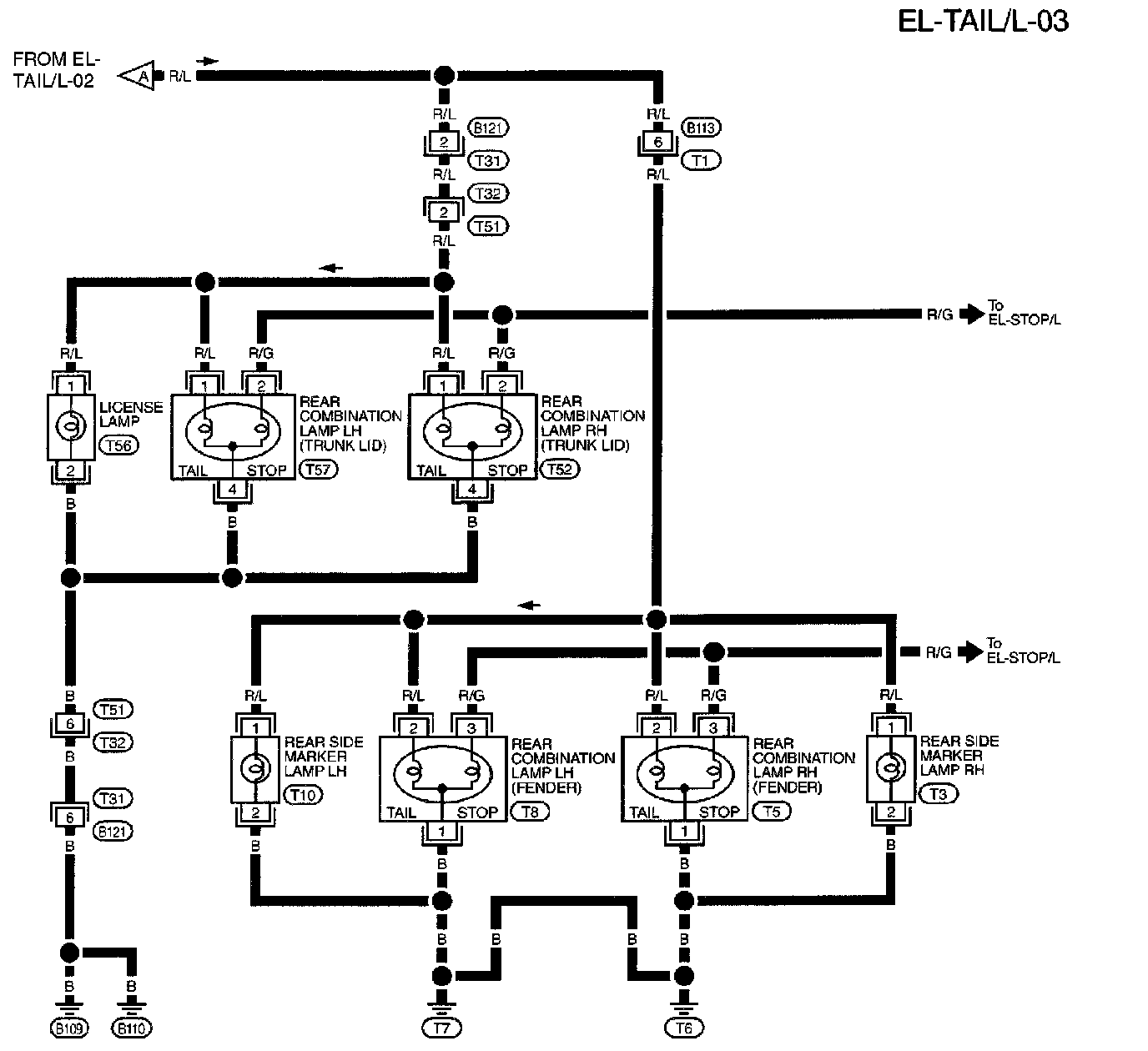

EL-TAIL/L-03:

(Part 3 of 3)
License Lamp
Rear Combination Lamp LH (Trunk Lid)
Rear Combination Lamp RH (Trunk Lid)
Rear Side Marker Lamp LH
Rear Combination Lamp LH (Fender)
Rear Combination Lamp RH (Fender)
Rear Side Marker Lamp RH










Circuit Connectors

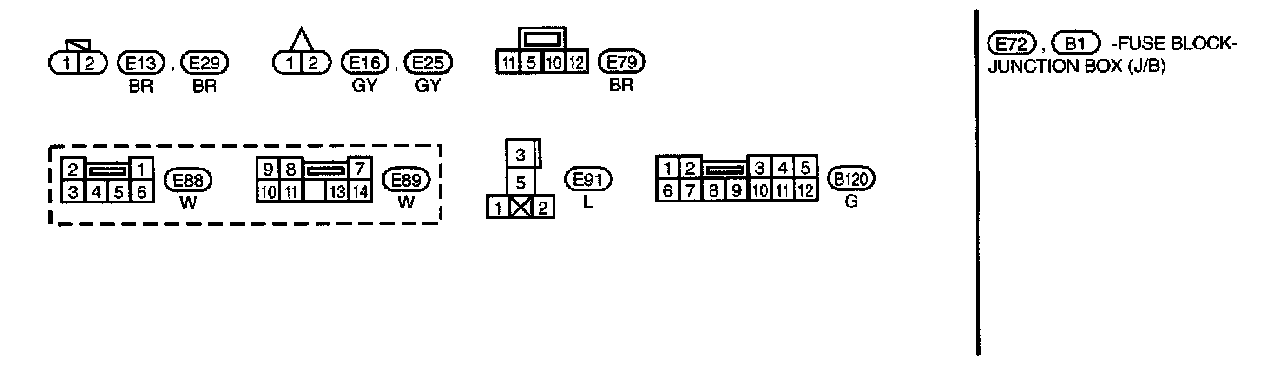

M6,E75 Connector Views:

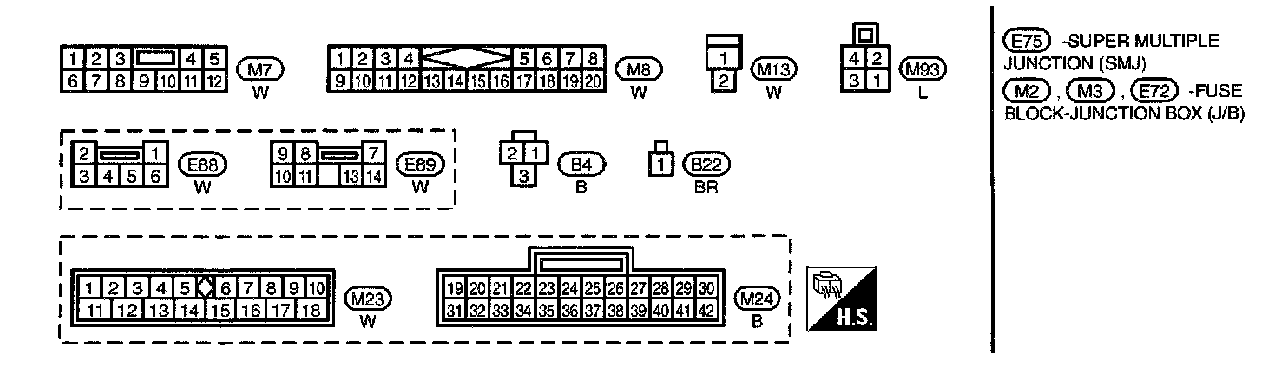

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

E75, M2, M3, E72, B1 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
