Automatic Transaxle
FINAL DRIVE
DIFFERENTIAL SIDE GEAR THRUST WASHERS

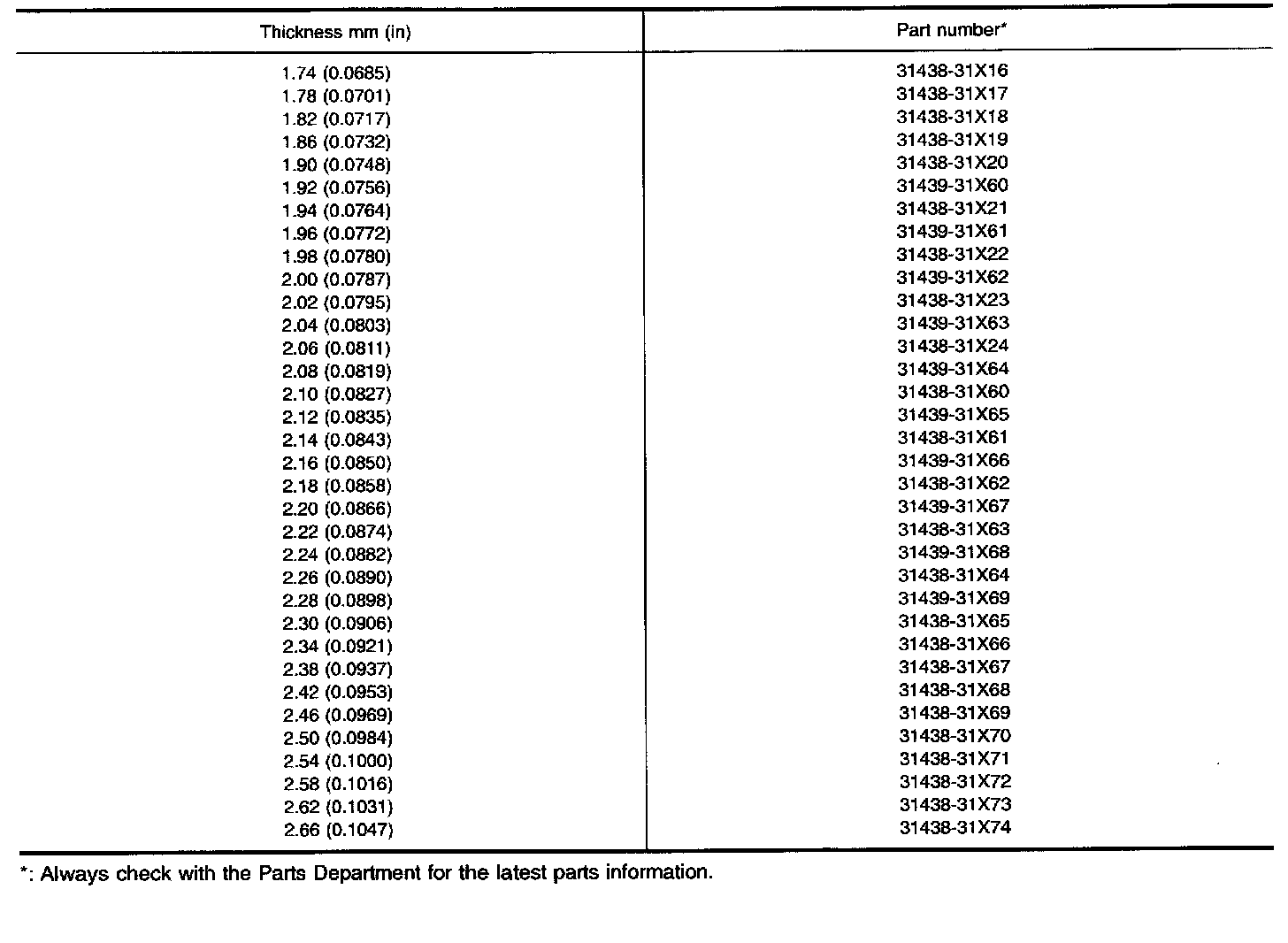

DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS

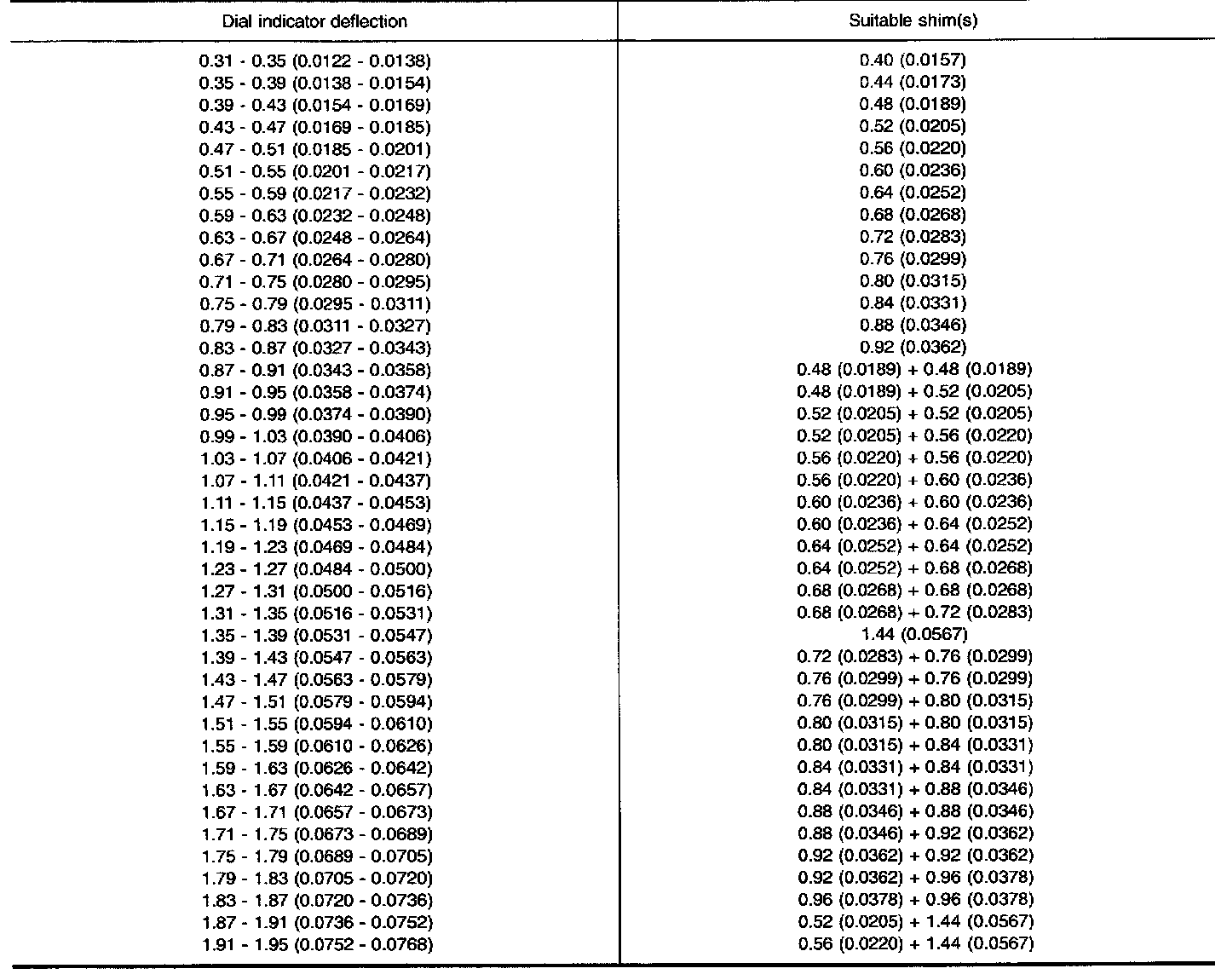

TABLE FOR SELECTING DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS

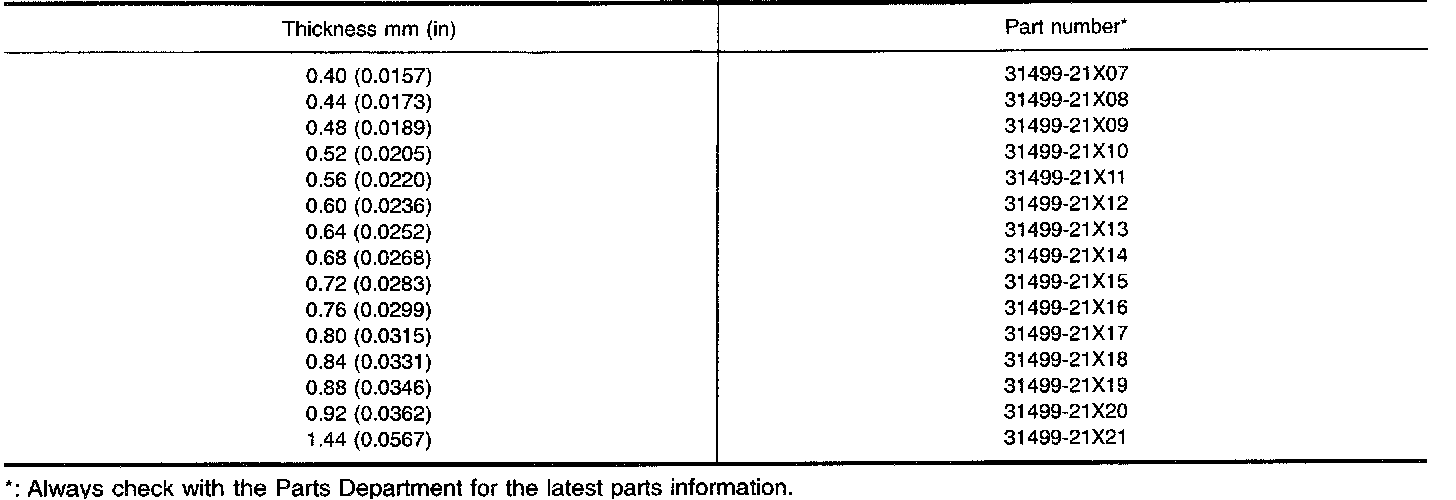

REDUCTION PINION GEAR BEARING ADJUSTING SHIMS
TABLE FOR SELECTING REDUCTION PINION GEAR BEARING ADJUSTING SHIM
OUTPUT SHAFT END PLAY ADJUSTING SHIMS
TOTAL END PLAY
BEARING RACE FOR ADJUSTING TOTAL END PLAY
REVERSE CLUTCH END PLAY

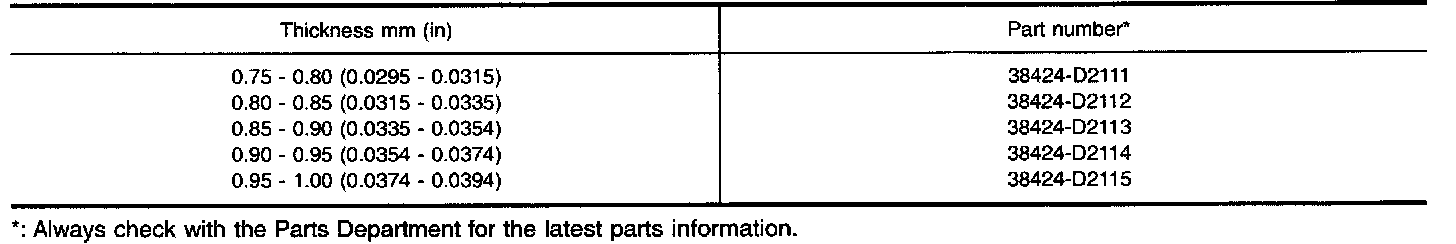

THRUST WASHERS FOR ADJUSTING REVERSE CLUTCH END PLAY
