Clutch: Testing and Inspection

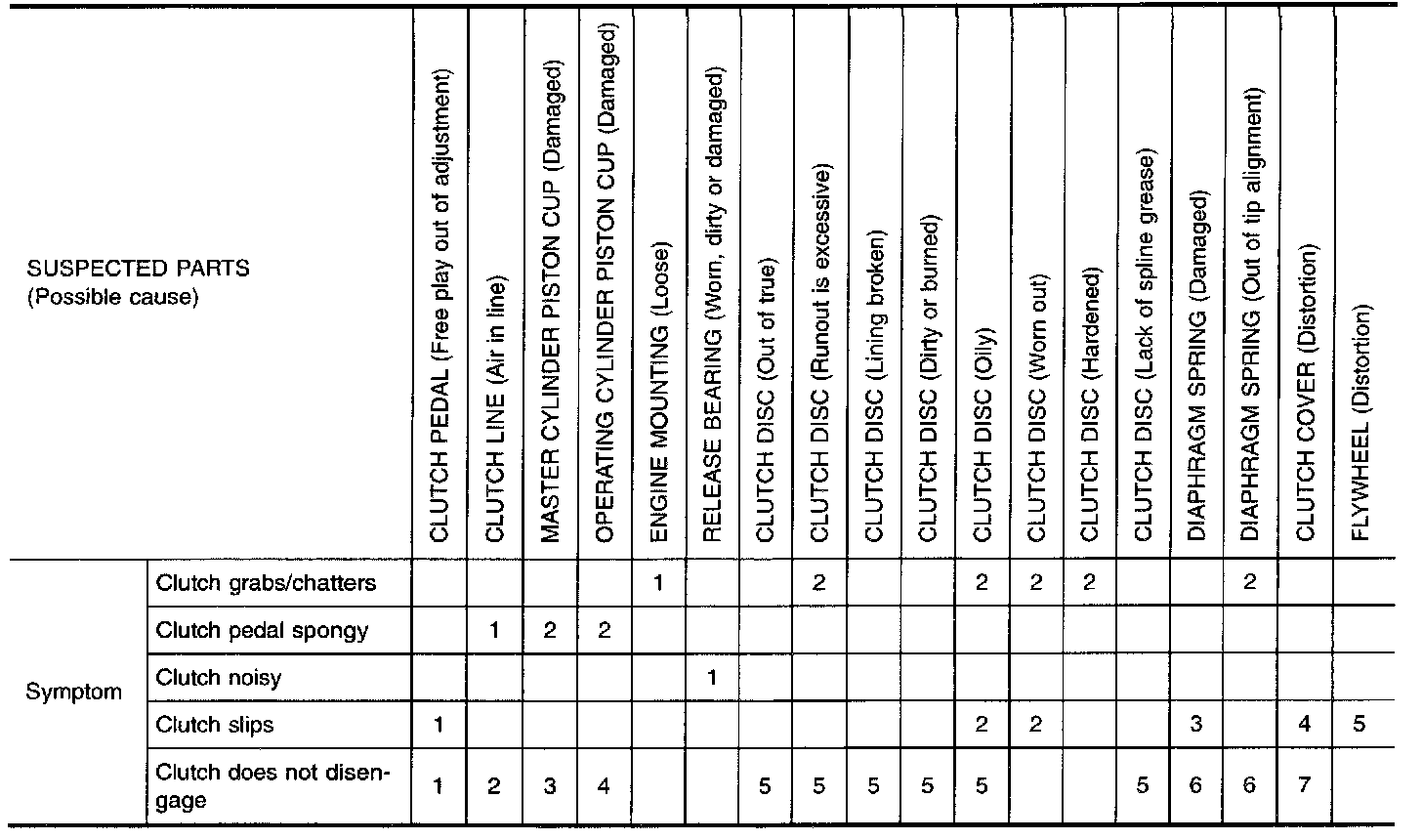

NOISE, VIBRATION AND HARSHNESS (NVH) Troubleshooting Chart





Use the chart to help you find the cause of the symptom. The numbers indicate the order of inspection. Check each part in order. If necessary, repair or replace these parts.
