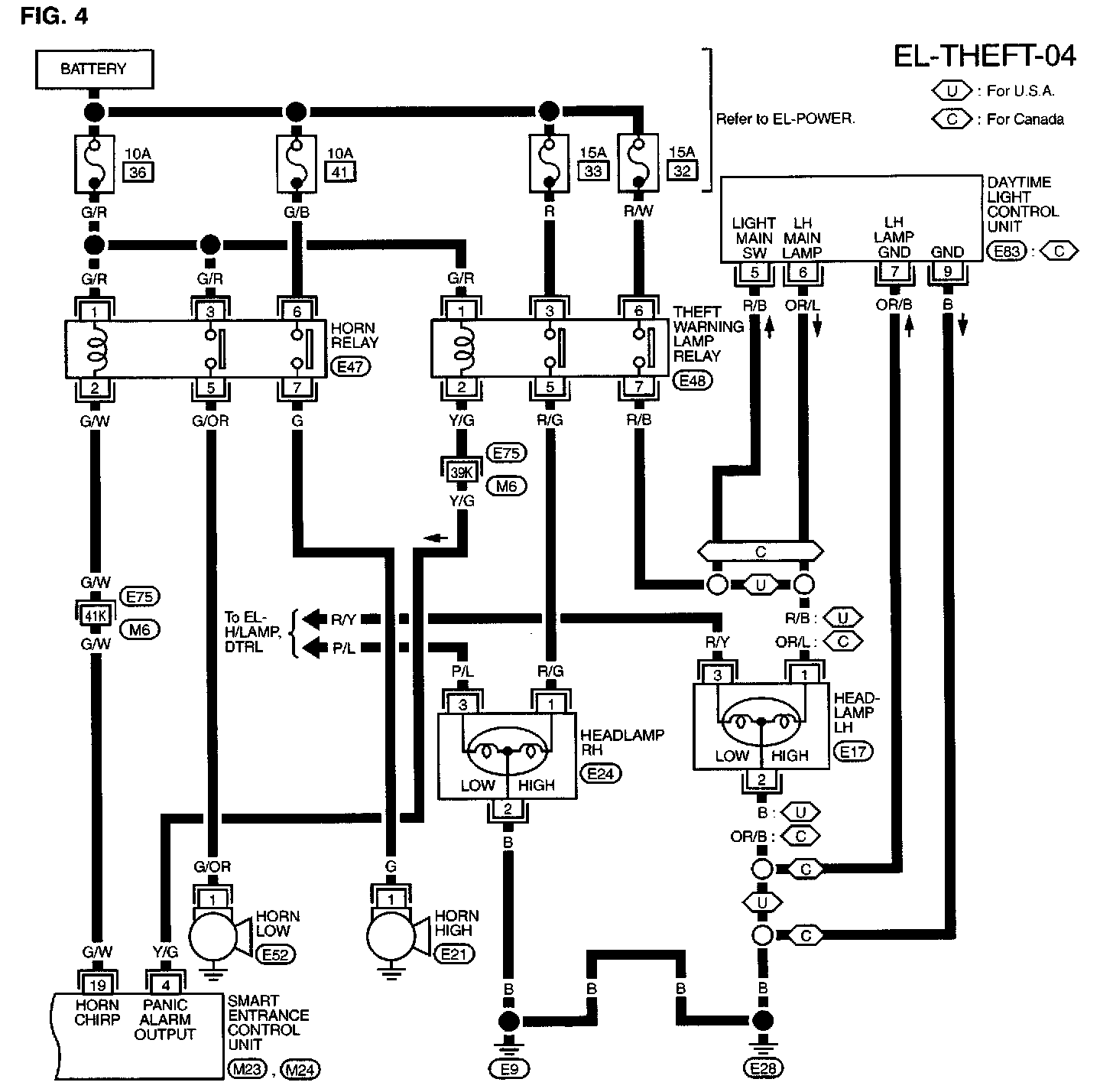

EL-THEFT-04
EL-THEFT-04
EL-THEFT-04:
EL-THEFT-04

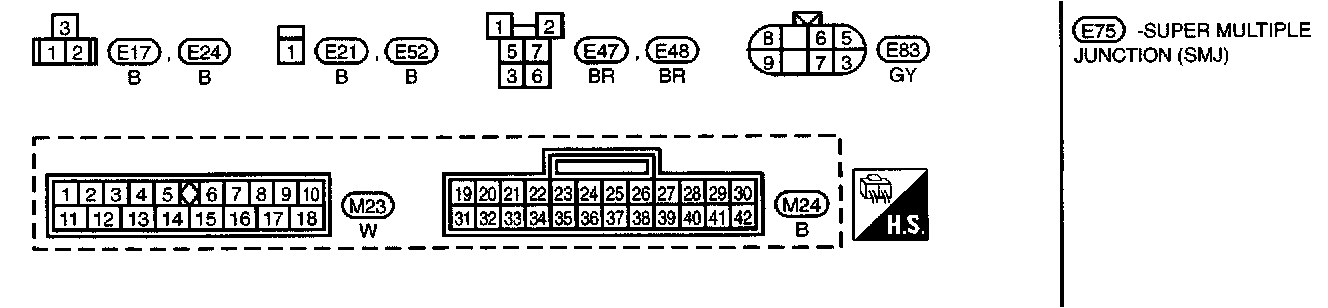

Circuit Connectors
M6,E75 Connector Views:
E75 Super Multiple Junction Box (SMJ) Terminal Arrangement
