Differential: Application and ID

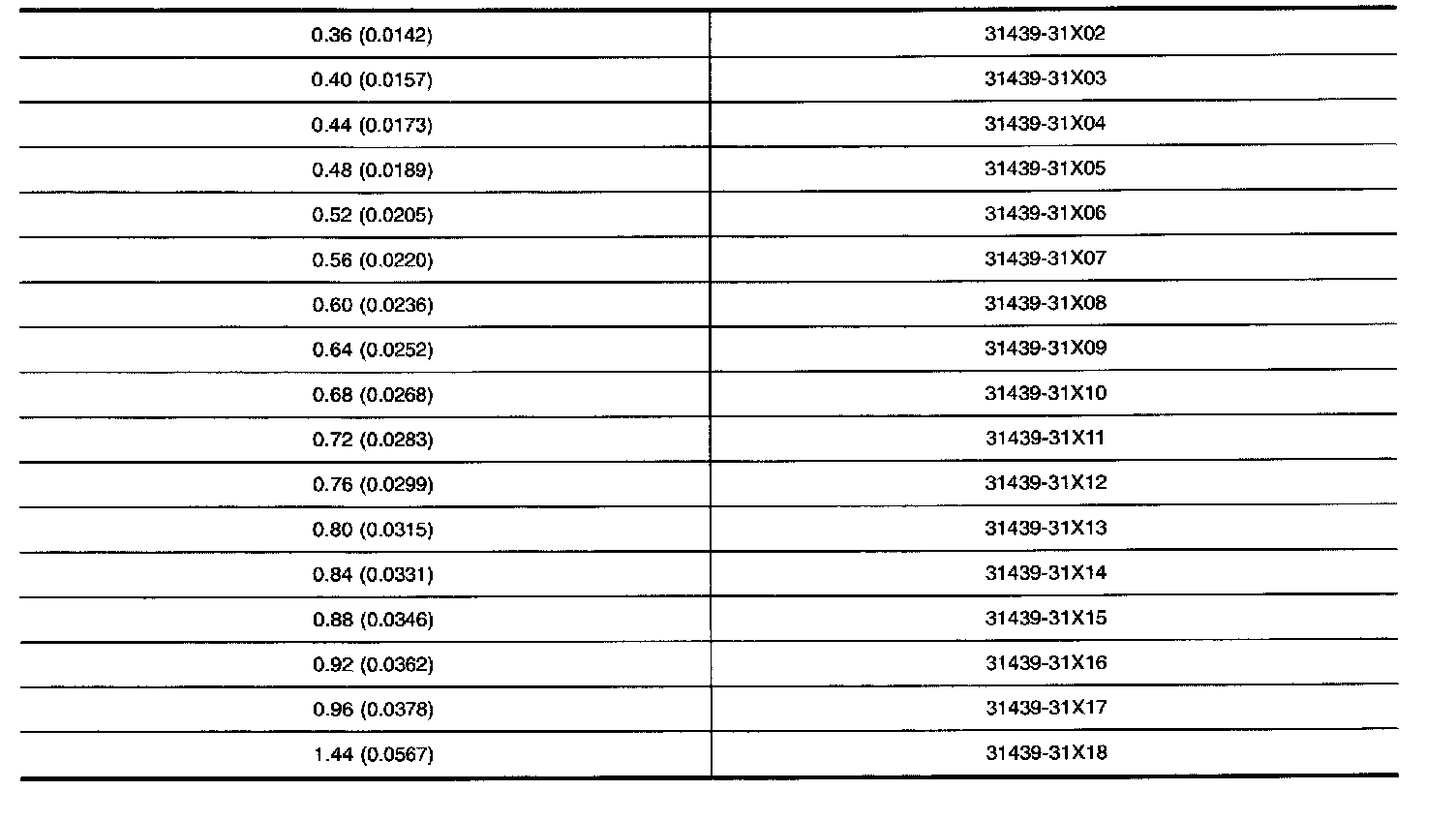

AVAILABLE WASHER
DIFFERENTIAL SIDE GEAR THRUST WASHER





Part 1 of 2





Part 2 of 2

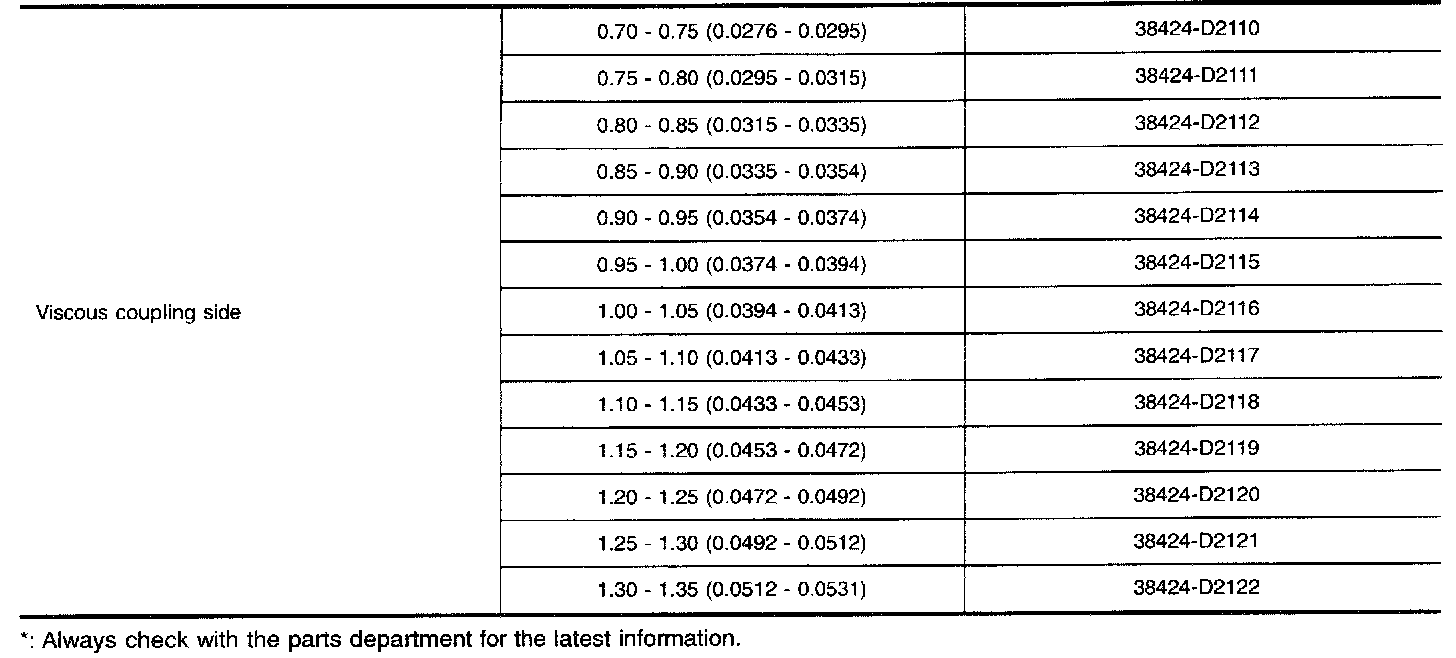

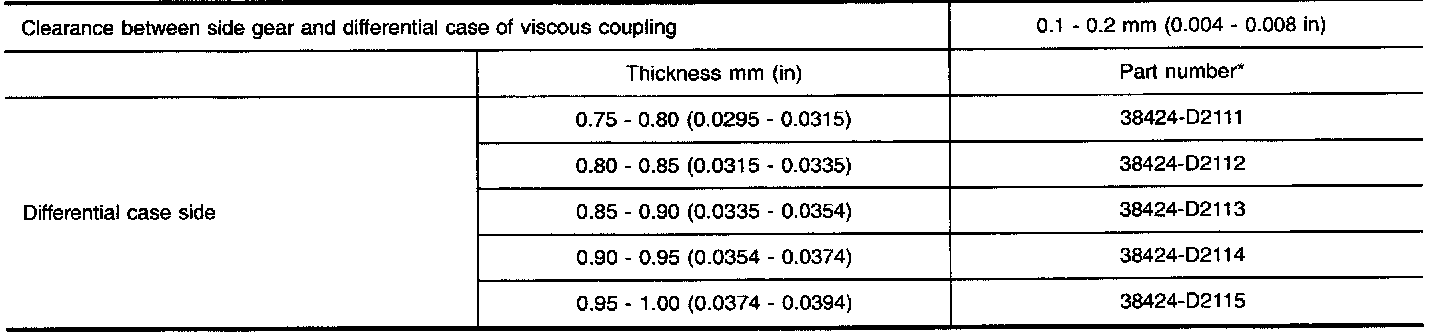

AVAILABLE SHIMS - ADJUSTING SHIM
DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS





Part 1 of 2





Part 2 of 2
