Front Seat

Power Seat:





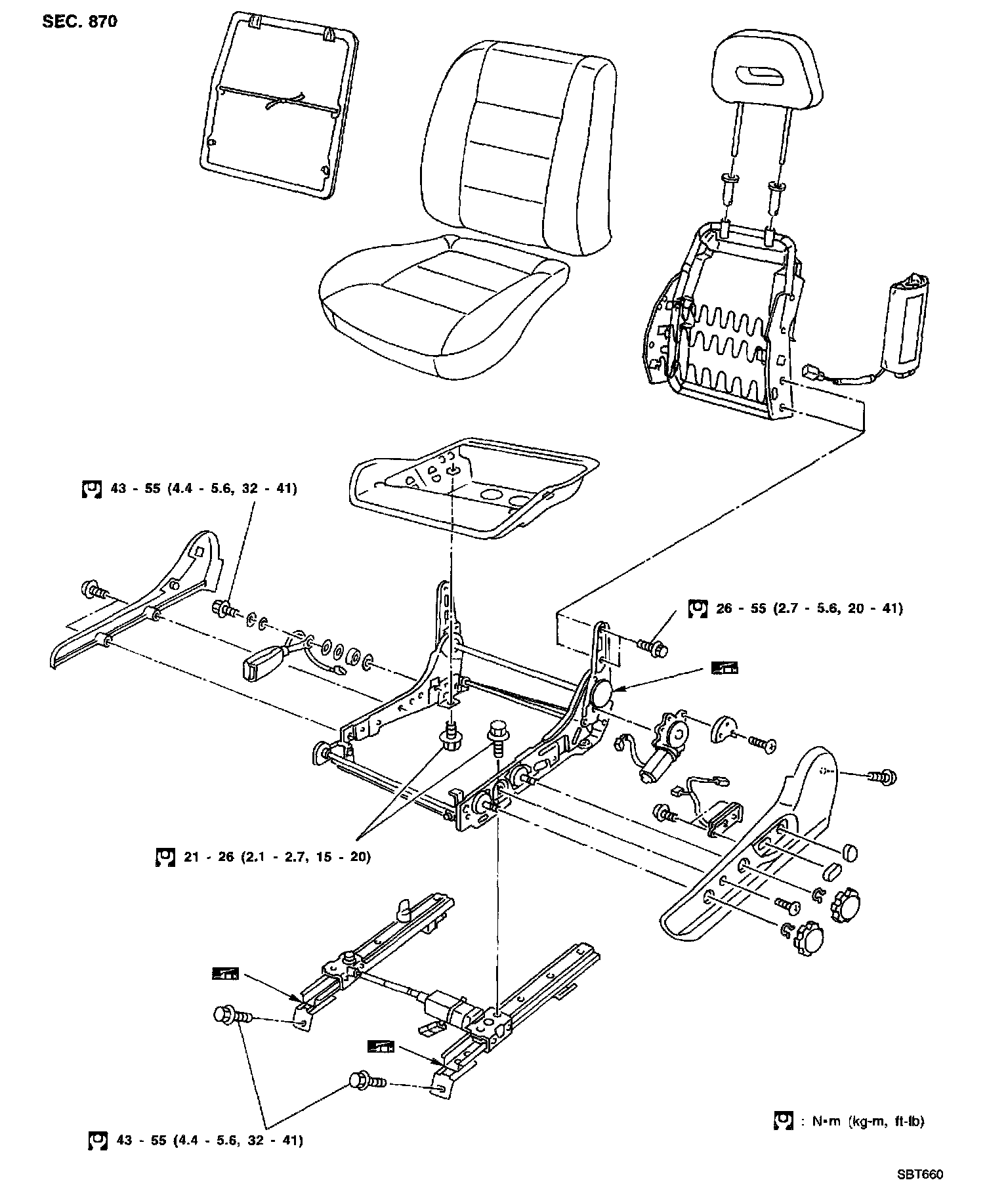

Removal and Installation
- When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

* For Wiring Diagram, refer to "Wiring Diagram - SEAT".

CAUTION:
- Before removing the rear seat, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag to deploy.
- Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
- Disconnect the side air bag harness connector, power seat switch harness connector and heated seat harness connector from under the seat before removing the seat.
- Disconnect the side air bag harness connector before removing the seat back. (Refer to "Side Air Bag Module".)
