Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2001
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Restraints and Safety Systems
>>
System Diagram
System Diagram
RS-SRS-01:

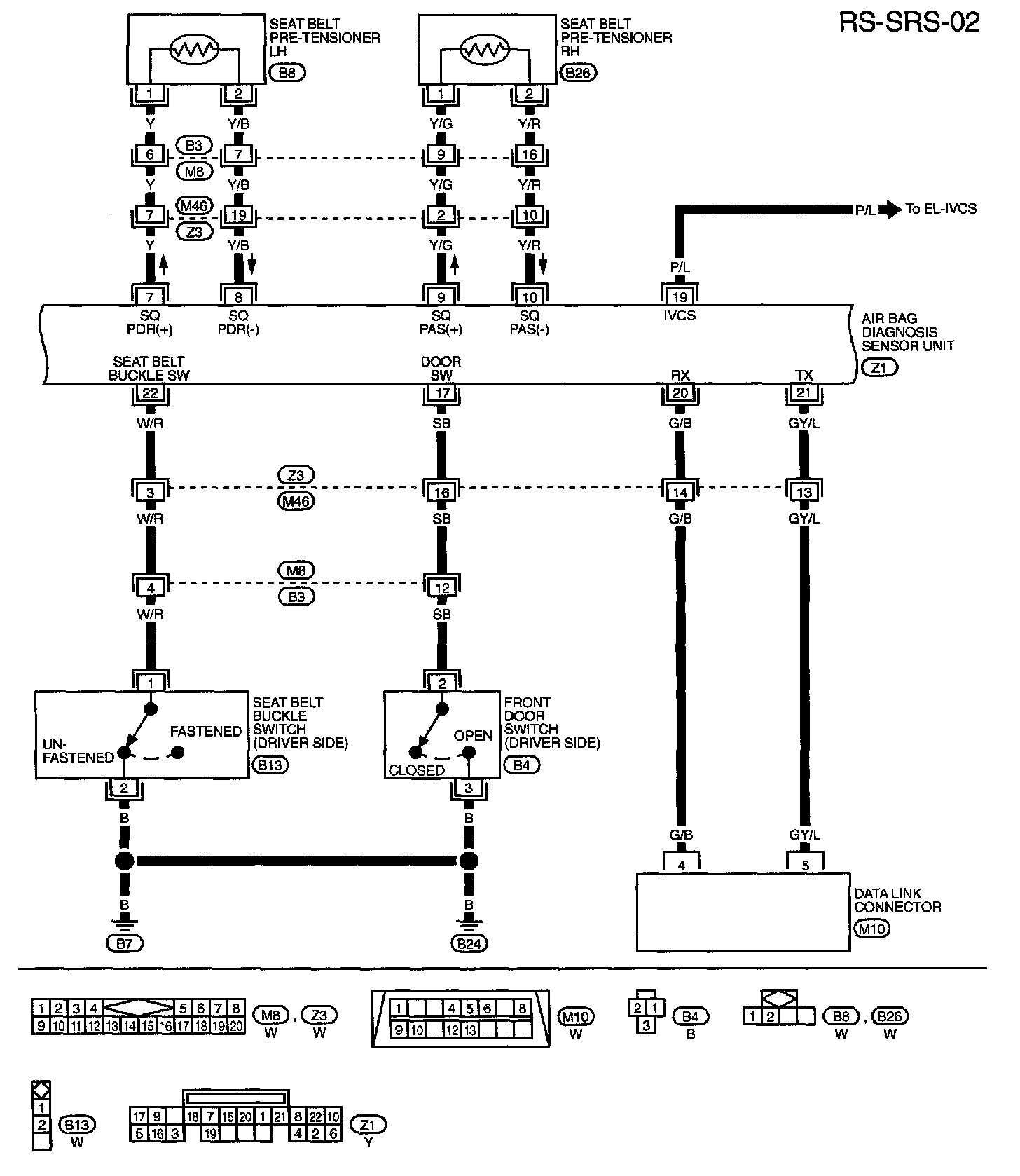

RS-SRS-02:
RS-SRS-03:
