Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2001
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft
Axle Shaft
DRIVE SHAFT

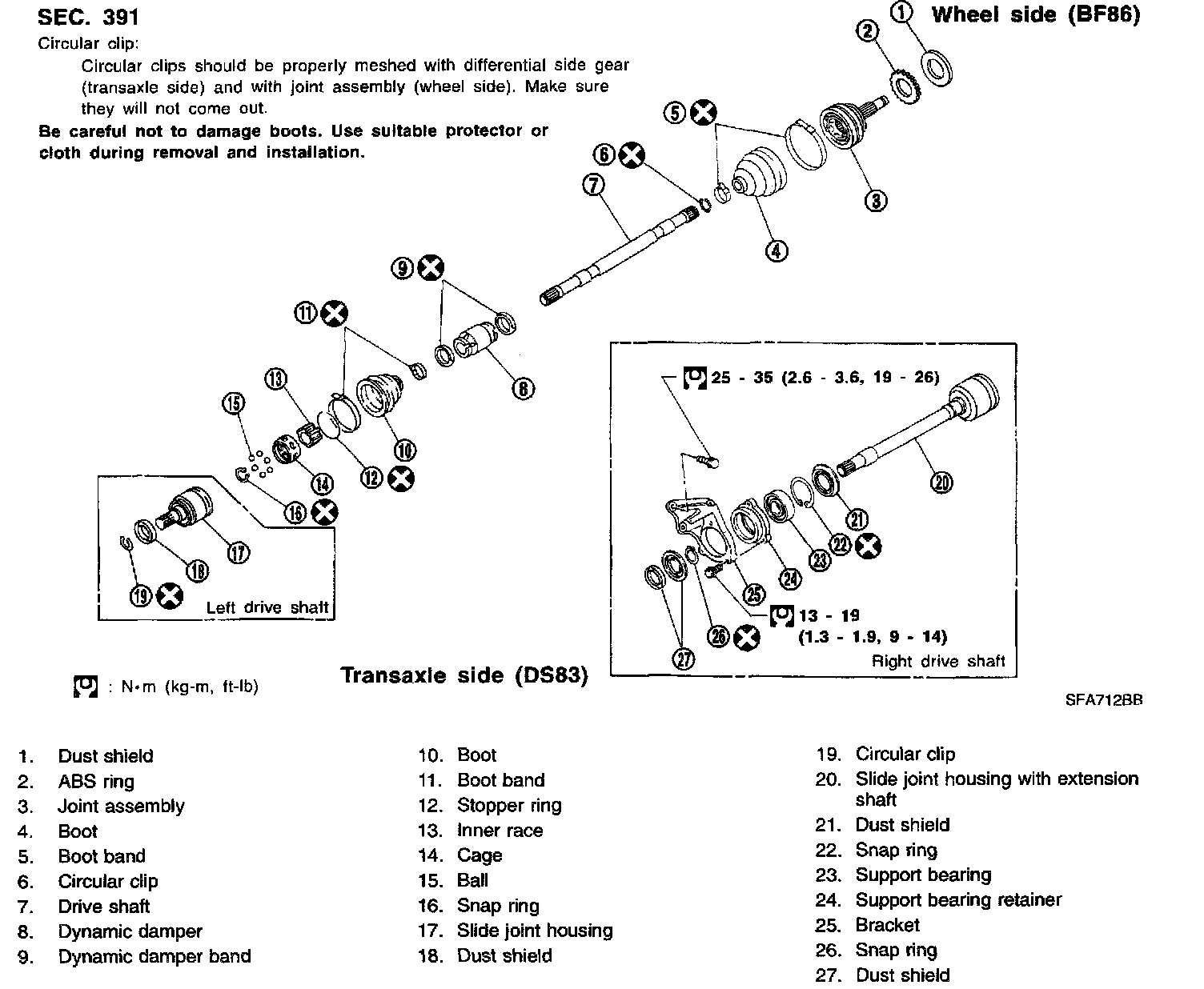

Transaxle Side (DS83) / Wheel Side (BF86)

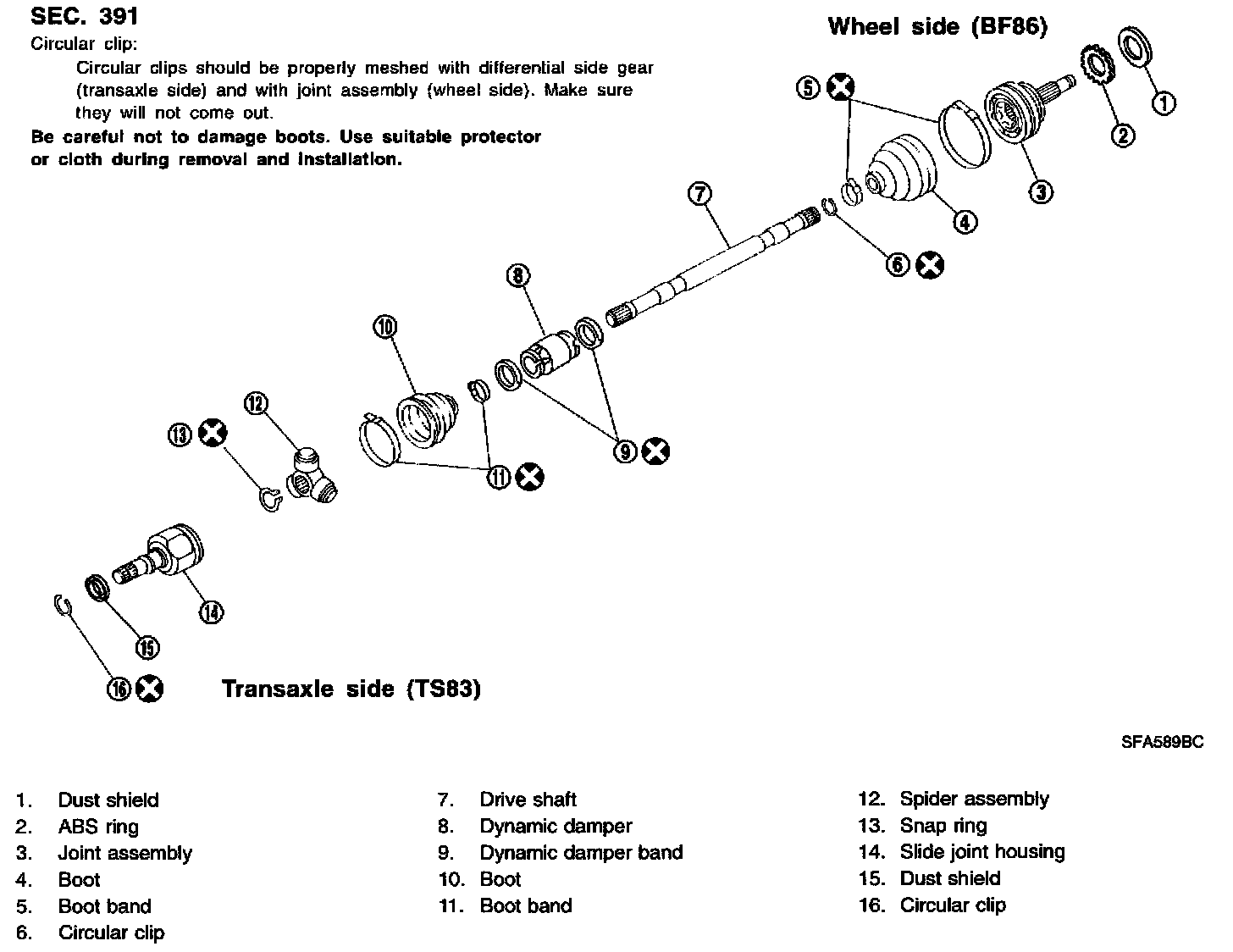

Transaxle Side (TS83) / Wheel Side (BF86)
