Home >> Infiniti >> 2001 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Automatic Air Conditioner

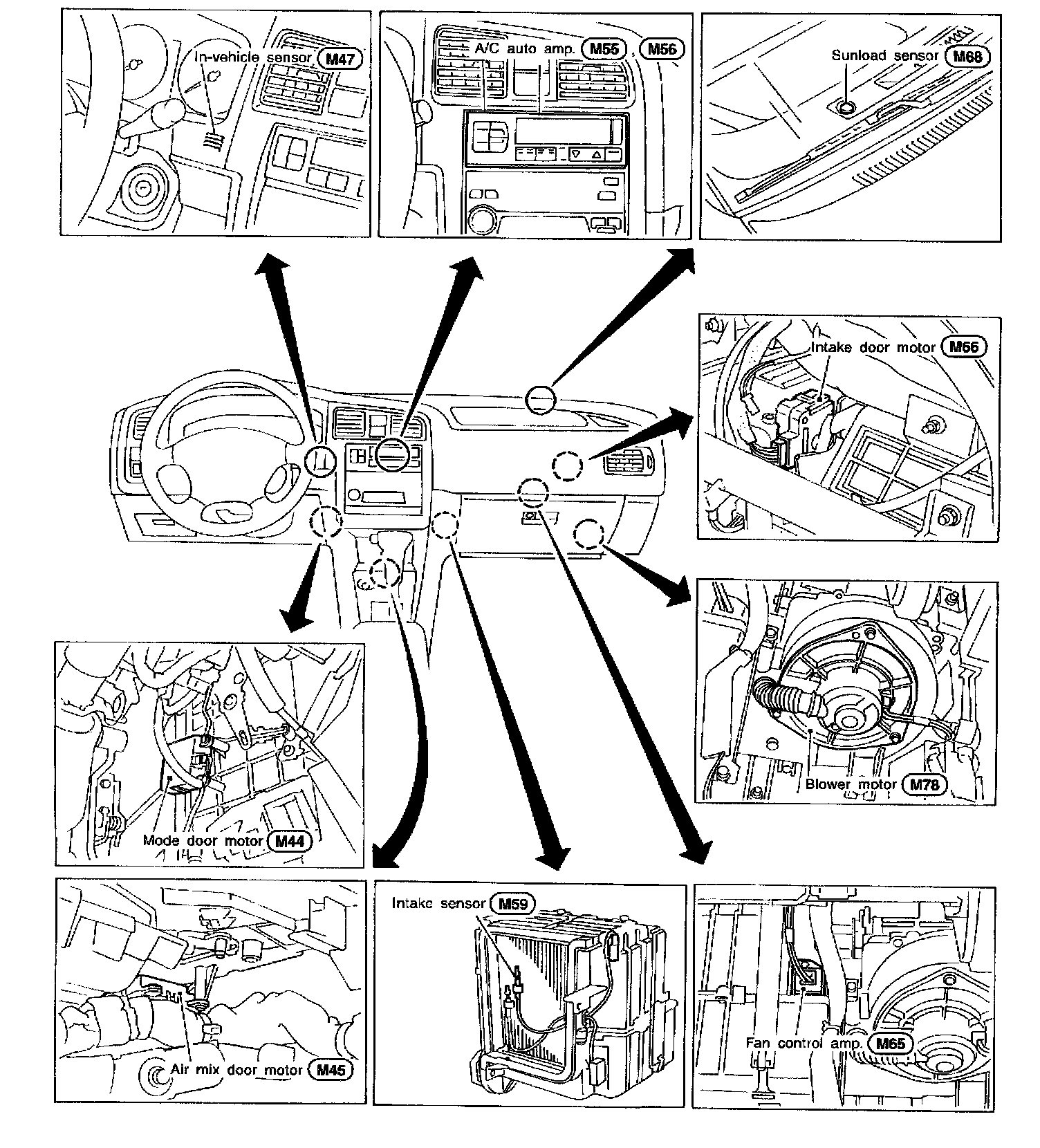

Automatic Air Conditioner

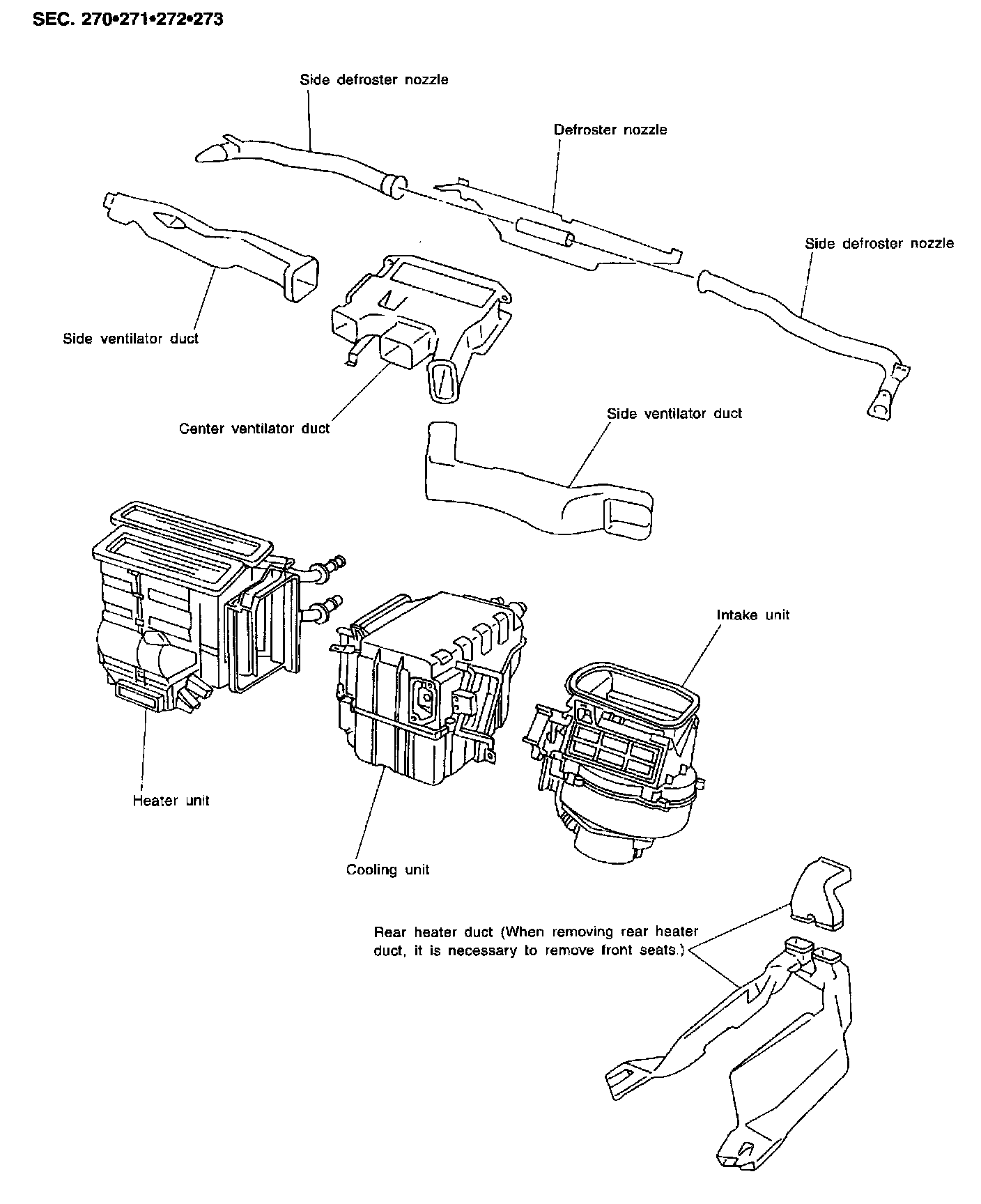

Cases And Ducting:



Engine Compartment:



Passenger Compartment:
