Pinout Values and Diagnostic Parameters

INSPECTION OF AUTO AMP.




- Measure voltage between each terminal and body ground by following "AUTO AMP. INSPECTION TABLE".




- Pin connector terminal layout

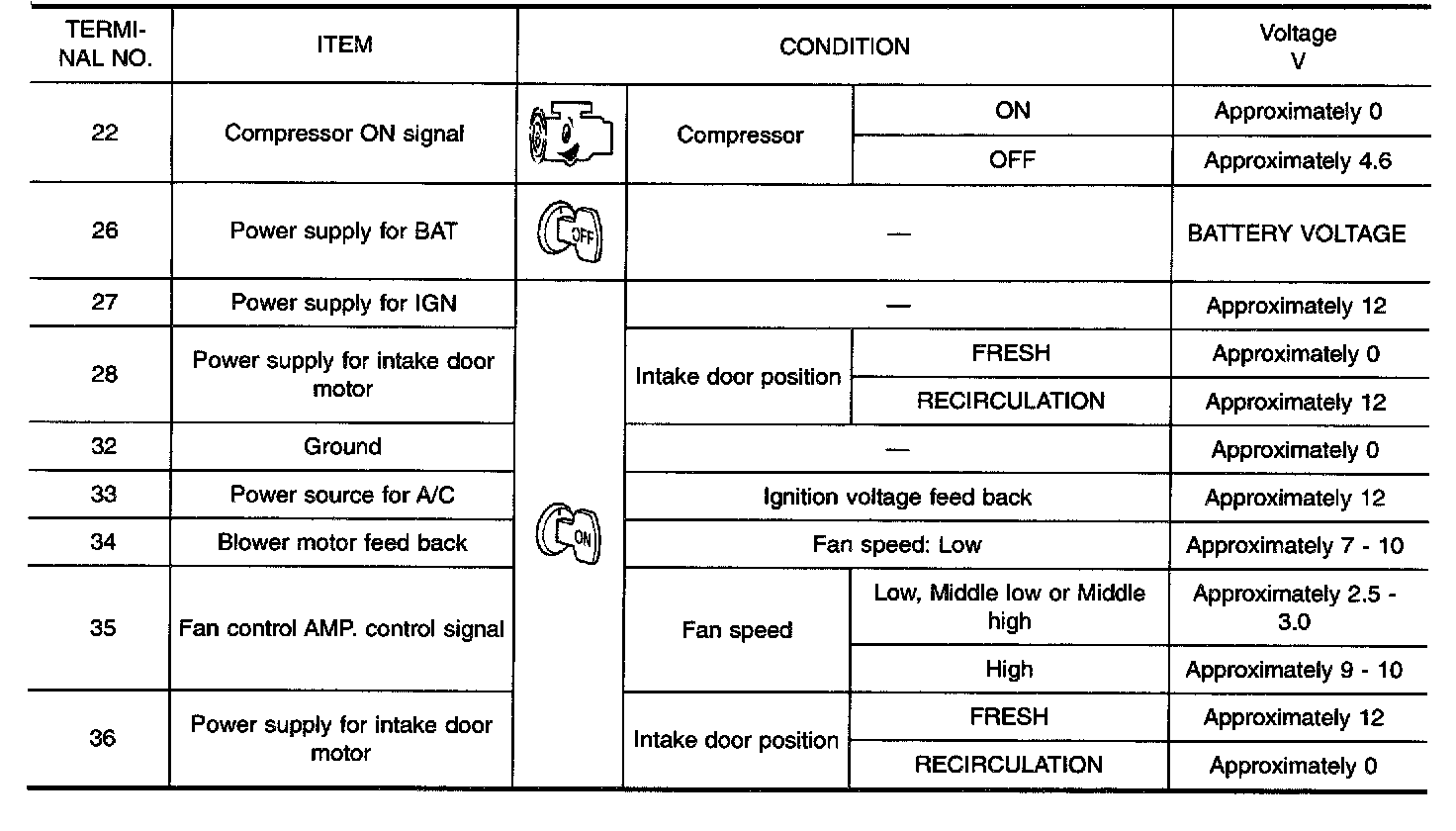

Auto Amp. Inspection Table Part 1:




Auto Amp. Inspection Table Part 2:
