Engine Room Harness

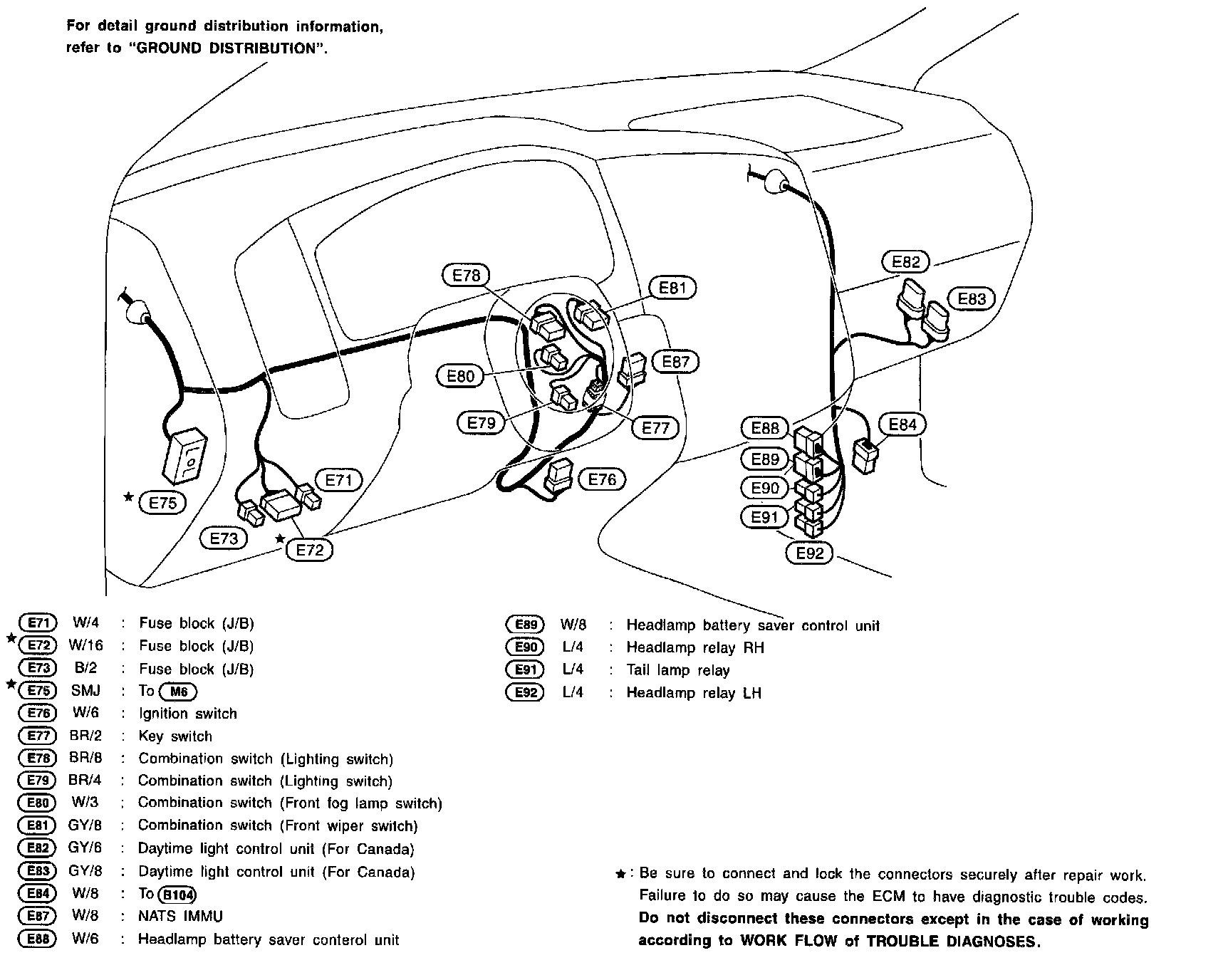

Engine Room Harness Part 1:

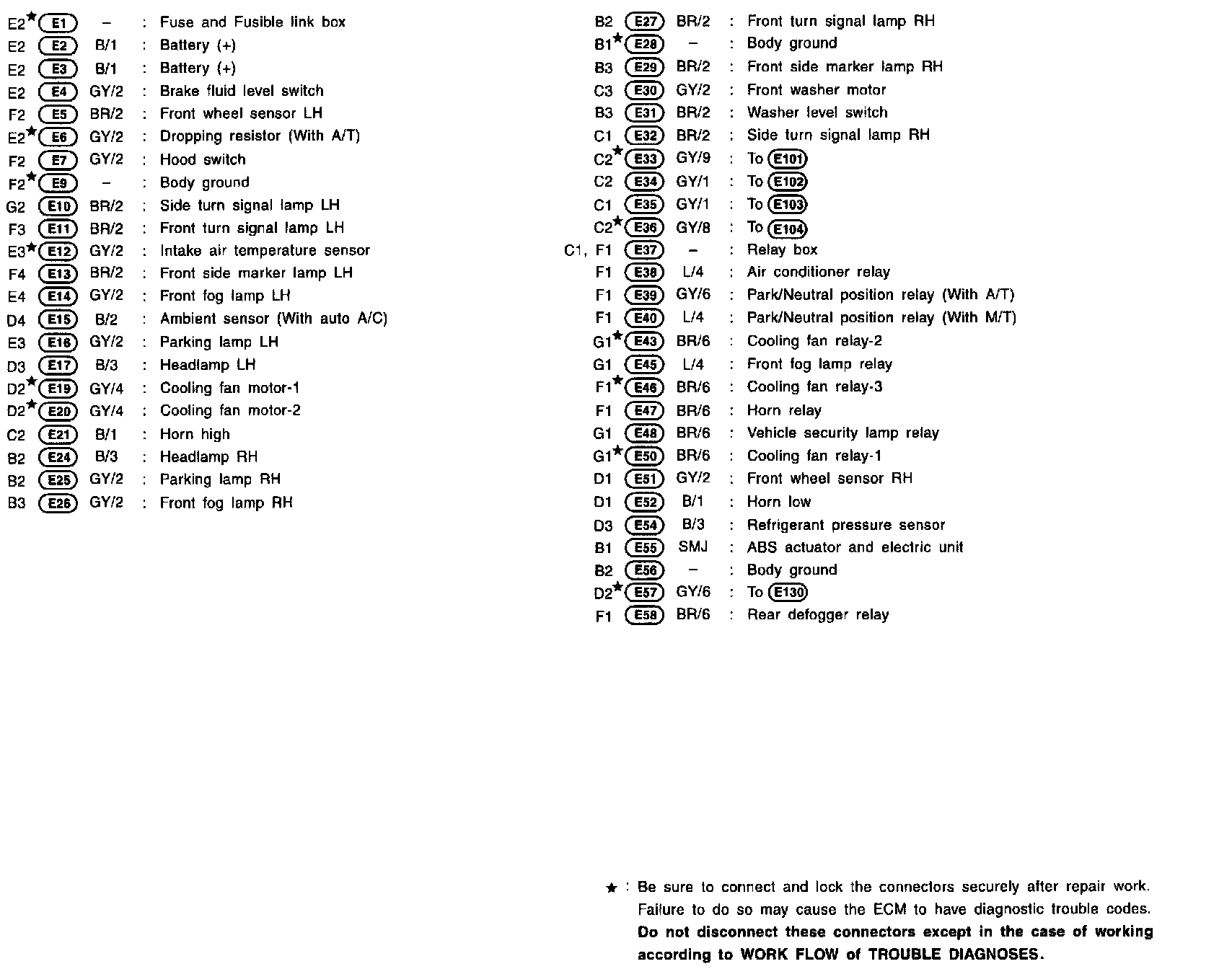

Engine Room Harness Part 2:

Engine Room Harness Part 3:
