Manual Transmission/Transaxle: Application and ID
Available Snap Rings
SNAP RING

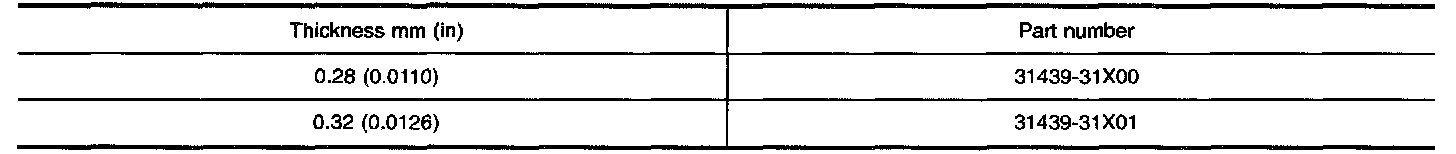

Available C-rings
4TH INPUT GEAR C-RING
5TH INPUT GEAR REAR C-RING
MAINSHAFT C-RING

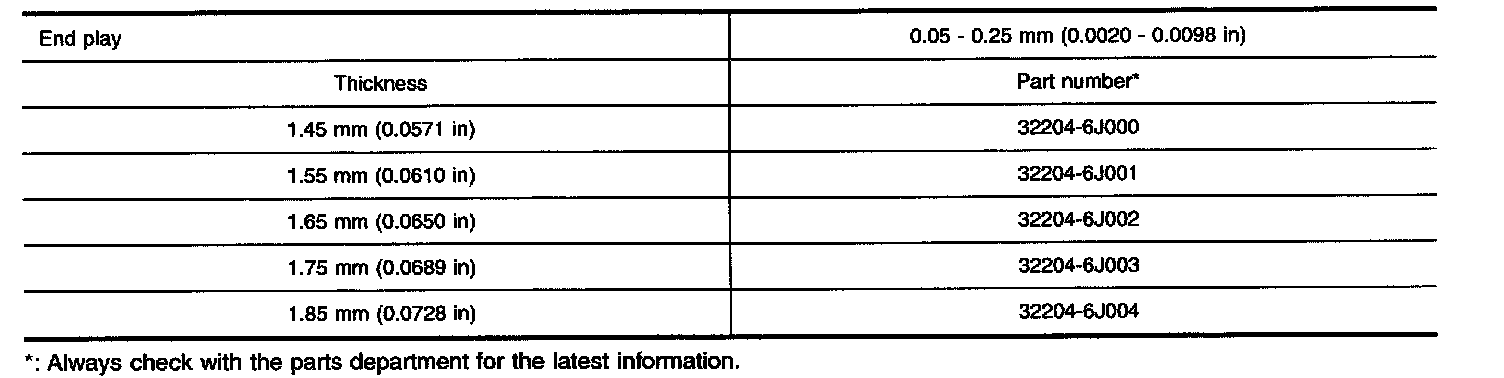

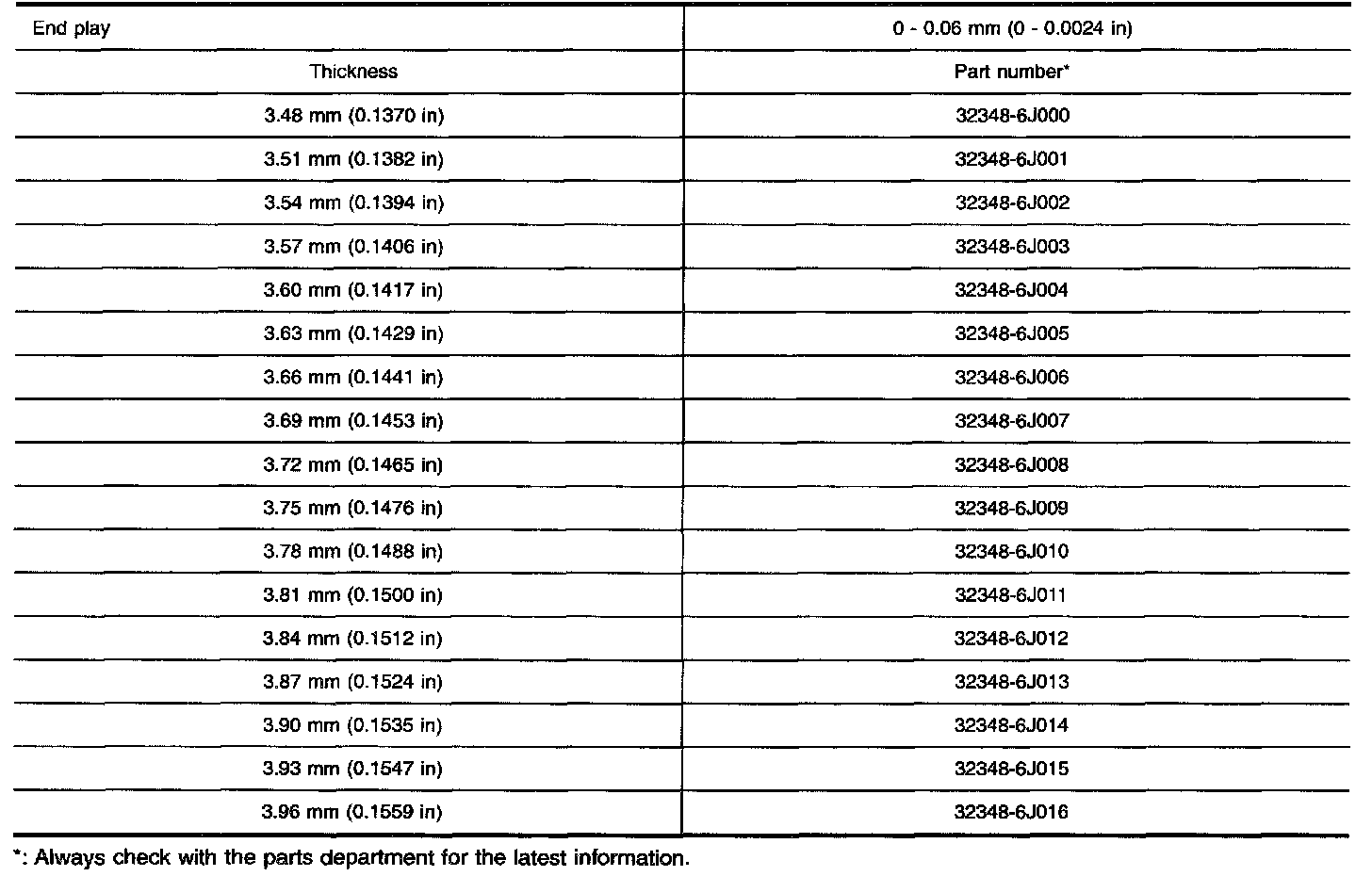

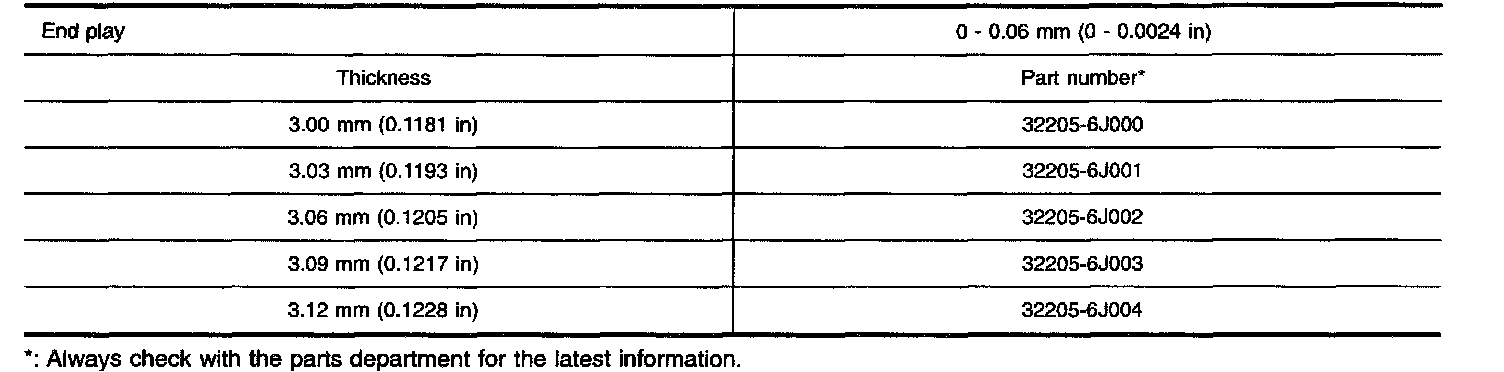

Available Adjusting Shims
INPUT SHAFT REAR BEARING ADJUSTING SHIM

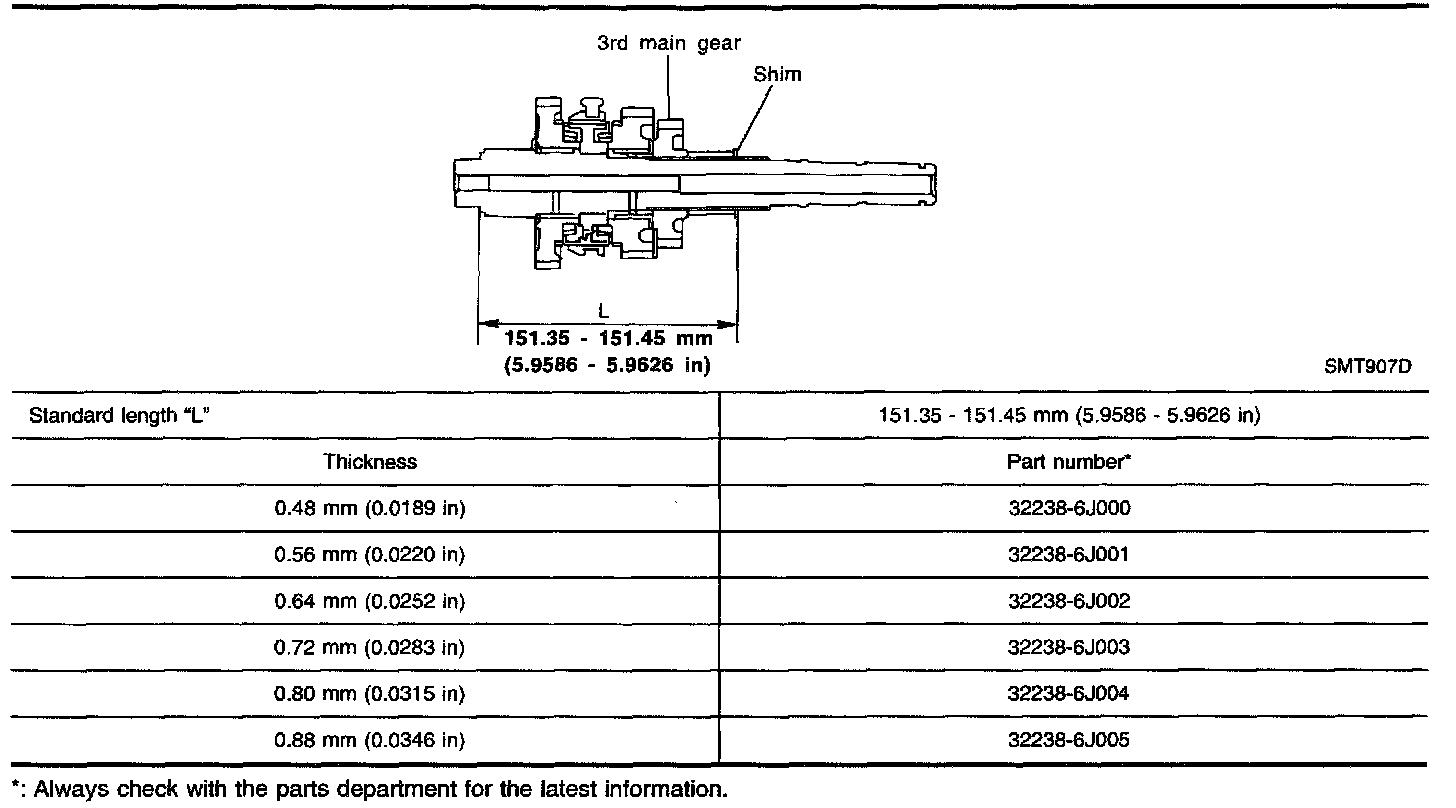

MAINSHAFT ADJUSTING SHIM
MAINSHAFT REAR BEARING ADJUSTING SHIM
Available Thrust Washer
MAINSHAFT THRUST WASHER
Available Washers
DIFFERENTIAL SIDE GEAR THRUST WASHER
RS5F70A
RS5F70V
1 of 2
2 of 2

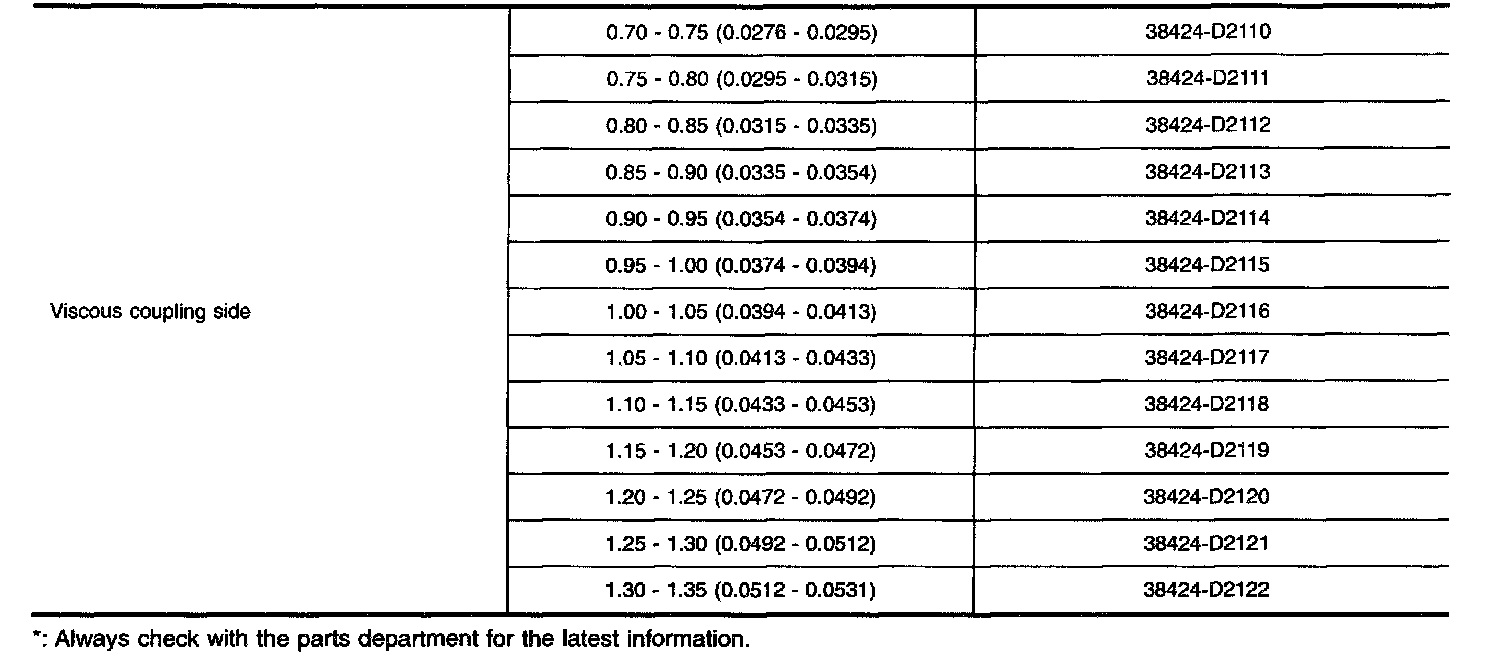

Available Shims Differential Side Bearing Preload and Adjusting Shim

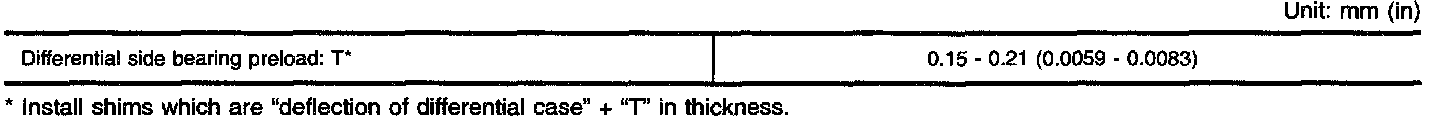

BEARING PRELOAD
DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS
RSSF70A
RS5F70V
1 of 2
2 of 2
