Component Description

NAVI Control Unit
- The gyro (angular speed sensor) and the CD-ROM drive are built-in units that control the navigation functions.
- Signals are received from the gyro, the vehicle speed sensor, and the GPS antenna. Vehicle location is determined by combining this data with the data contained in the CD-ROM map. Locational information is shown on liquid crystal display panel.

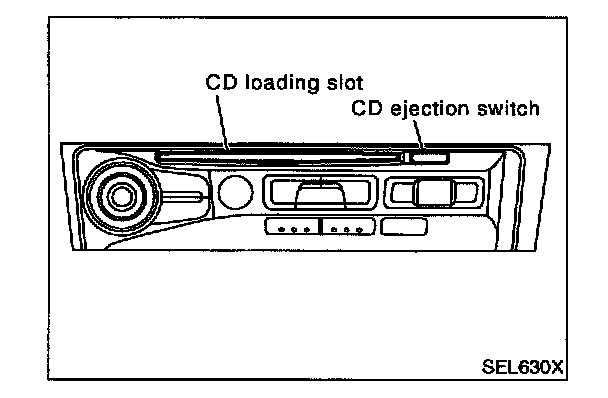

CD-ROM Driver
Maps, traffic control regulations, and other pertinent information can be easily red from the CD-ROM disc.

Map CD-ROM
- The map CD-ROM has maps, traffic control regulations, and other pertinent information.
- To improve CD-ROM map matching and route determination functions, the CD-ROM uses an exclusive Nissan format. Therefore, the use of a CD-ROM provided by other manufacturers cannot be used.




Gyro (Angular Speed Sensor)
- The oscillator gyro sensor is used to detect changes in vehicle steering angle.
- The oscillator gyro periodically senses oscillatory variation at the oscillation terminals. This variation is caused by changes in the vehicle angular velocity. Voltage variations are sensed by ceramic voltage sensors at the left and right sides of the terminals. Vehicle angular velocity corresponds directly with these changes in voltage.
- The gyro is built into the navigation (NAVI) control unit.




BIRDVIEW (R)
The BIRDVIEW (R) provides a detailed and easily seen display of road conditions covering the vehicle's immediate to distant area.




Description
- Display area: Trapezoidal representation showing approximate distances (Wn, D, and Wd).
- Ten horizontal grid lines indicate display width while six vertical grid lines indicate display depth and direction.
- Drawing line area shows open space, depth, and immediate front area. Each area is to a scale of approximately 5:6:25.
- Pushing the "ZOOM IN" button during operation displays the scale change and the view point height on the left side of the screen.

The height of the view point increases or decreases when "ZOOM" OR "WIDE" is selected with the joystick.




MAP DISPLAY
Function of each icon is as follows:
1. Azimuth indication
2. Position marker
The tip of the arrow shows the current position. The shaft of the arrow indicates the direction in which the vehicle is traveling.
3. GPS reception signal (indicates current reception conditions)
4. Distance display (shows the distance in a reduced scale)

FUNCTION OF PANEL SWITCH




Display with Pushed "DEST" Switch




Display with Pushed "ROUTE" Switch




Display with Pushed "SETTING" Switch
