Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC
EC-RP/SEN-01 Connector View:

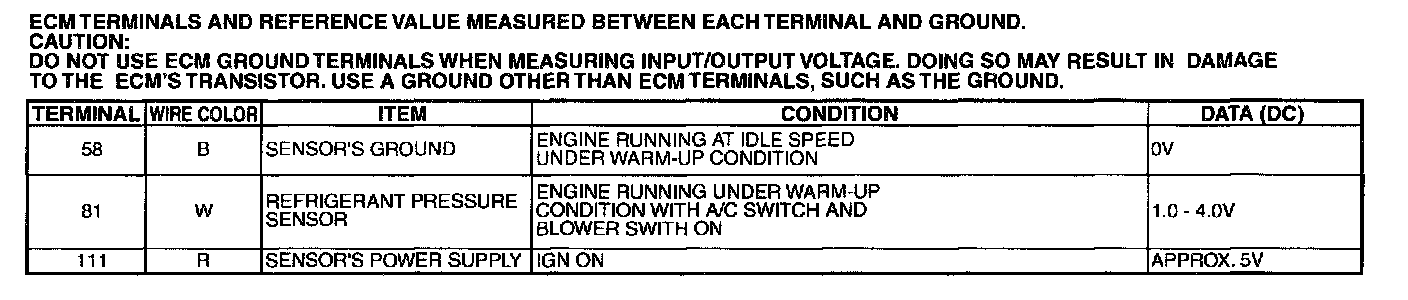

ECM Terminals And Reference Value:
