Navigation System
Navigation System

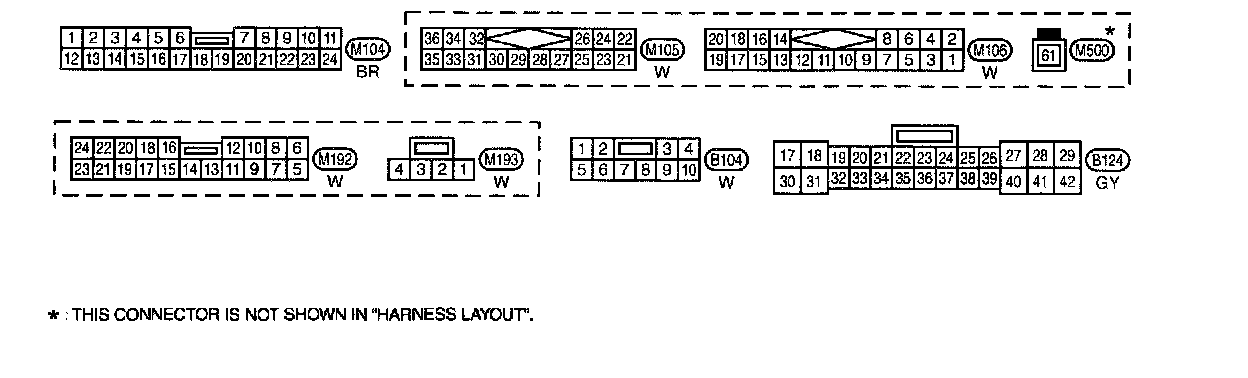

EL-NAVI-01 Connector Views:

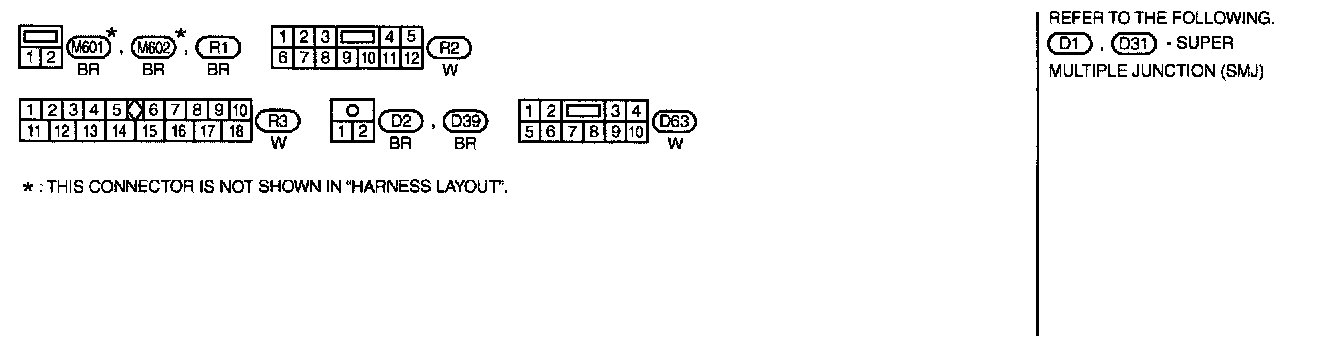

EL-NAVI-02 Connector Views:
EL-NAVI-03 Connector Views:
EL-NAVI-04 Connector Views:
EL-NAVI-05 Connector Views:
