Power Locks
Power Locks

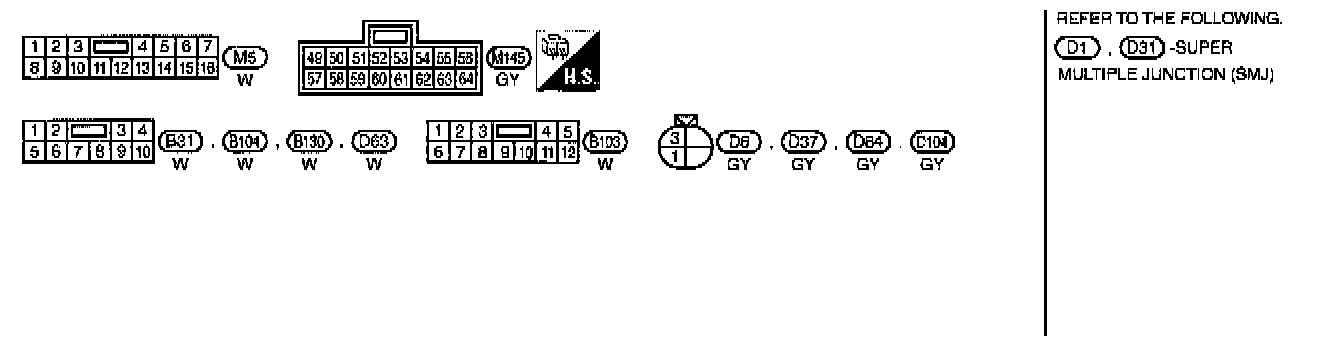

EL-D/LOCK-01 Connector Views:

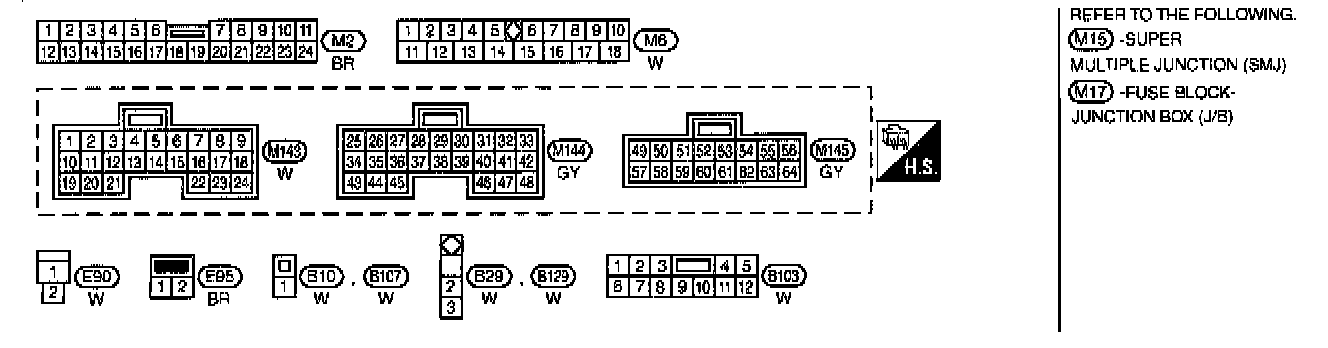

EL-D/LOCK-02 Connector Views:

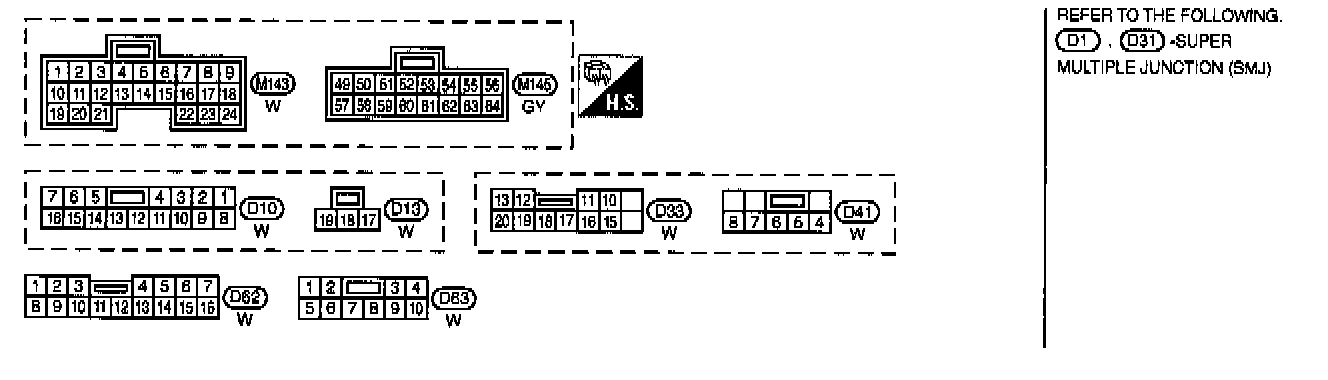

EL-D/LOCK-03 Connector Views:

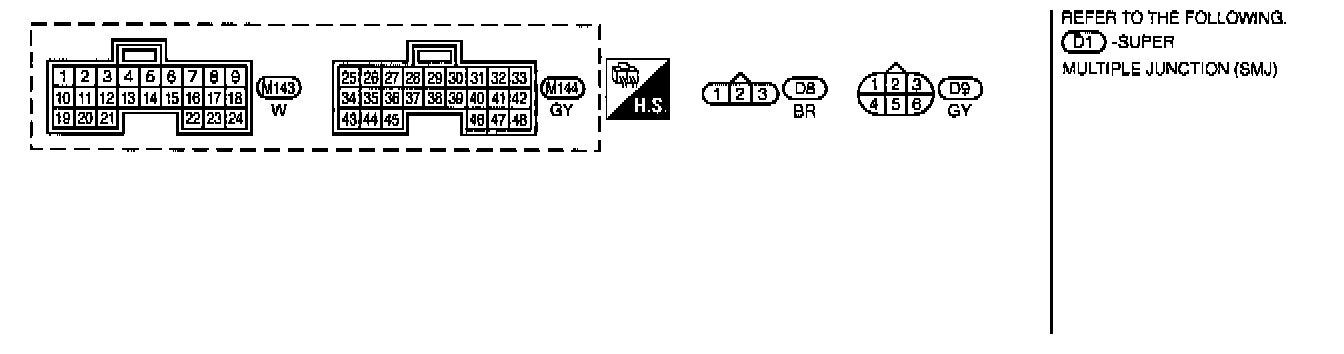

EL-D/LOCK-04 Connector Views:

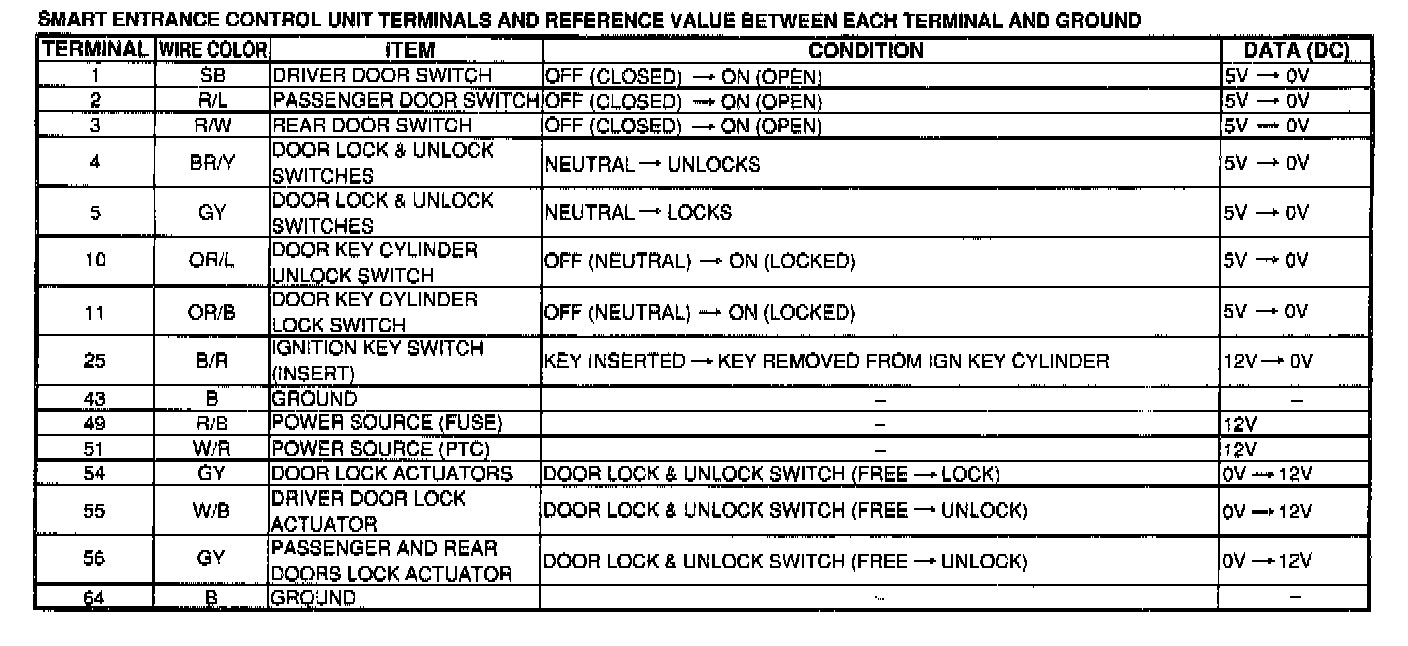

Smart Entrance Control Unit Terminals And Reference Value:
