Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Meters and Gauges
>>
El-Meter
El-Meter

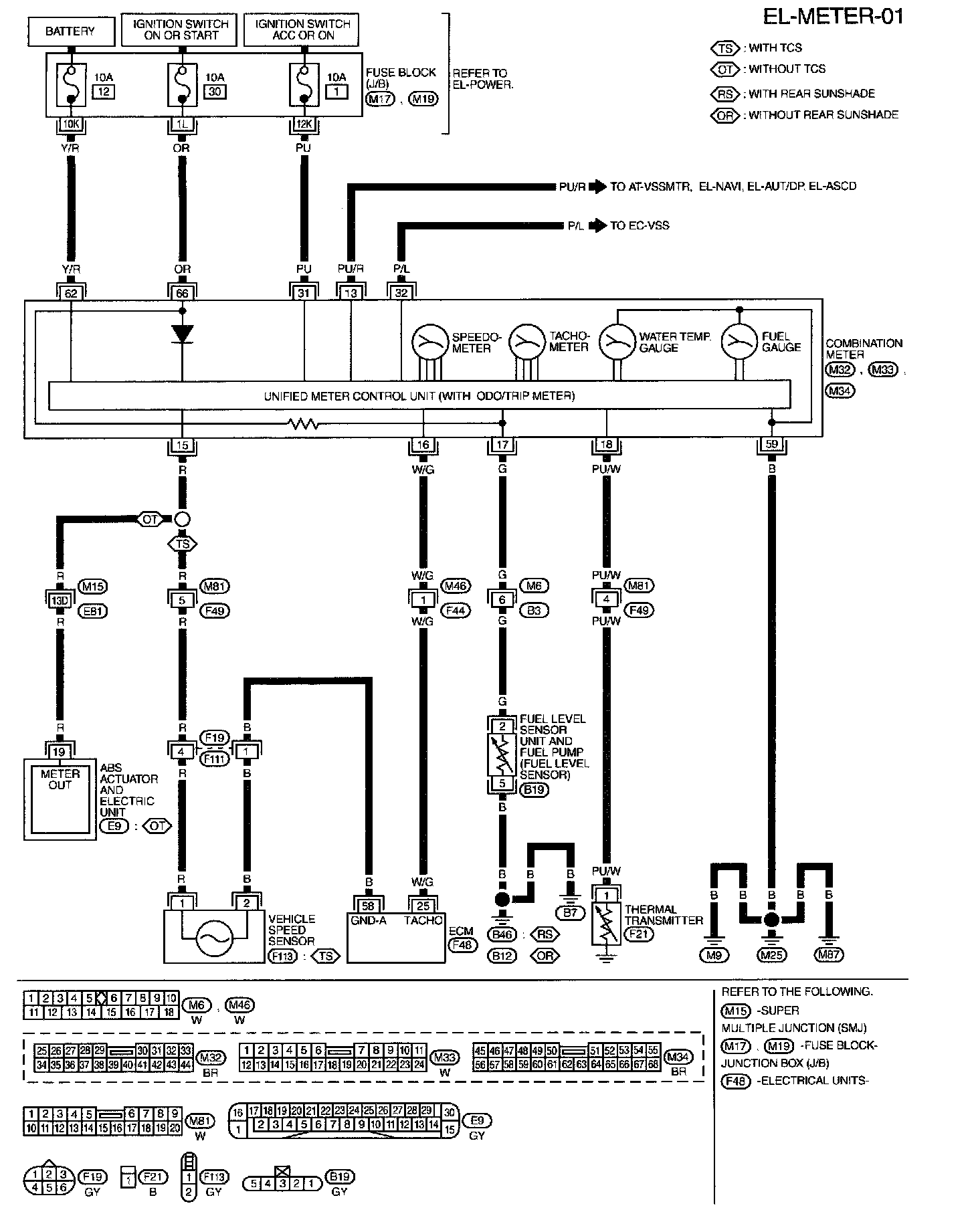

EL-METER-01:
