Major Overhaul
COMPONENTS
1 of 3
2 of 3
3 of 3

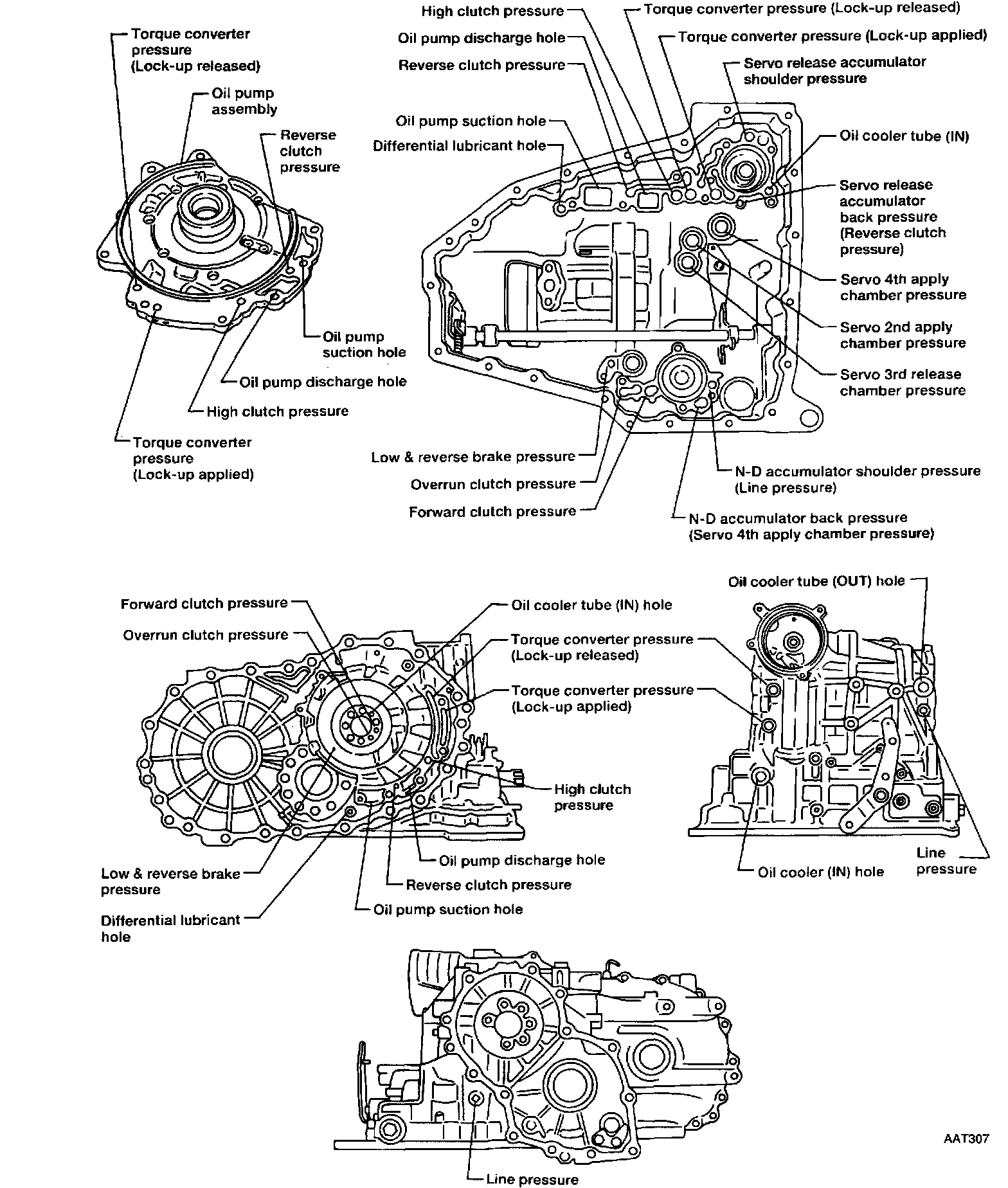

OIL CHANNEL

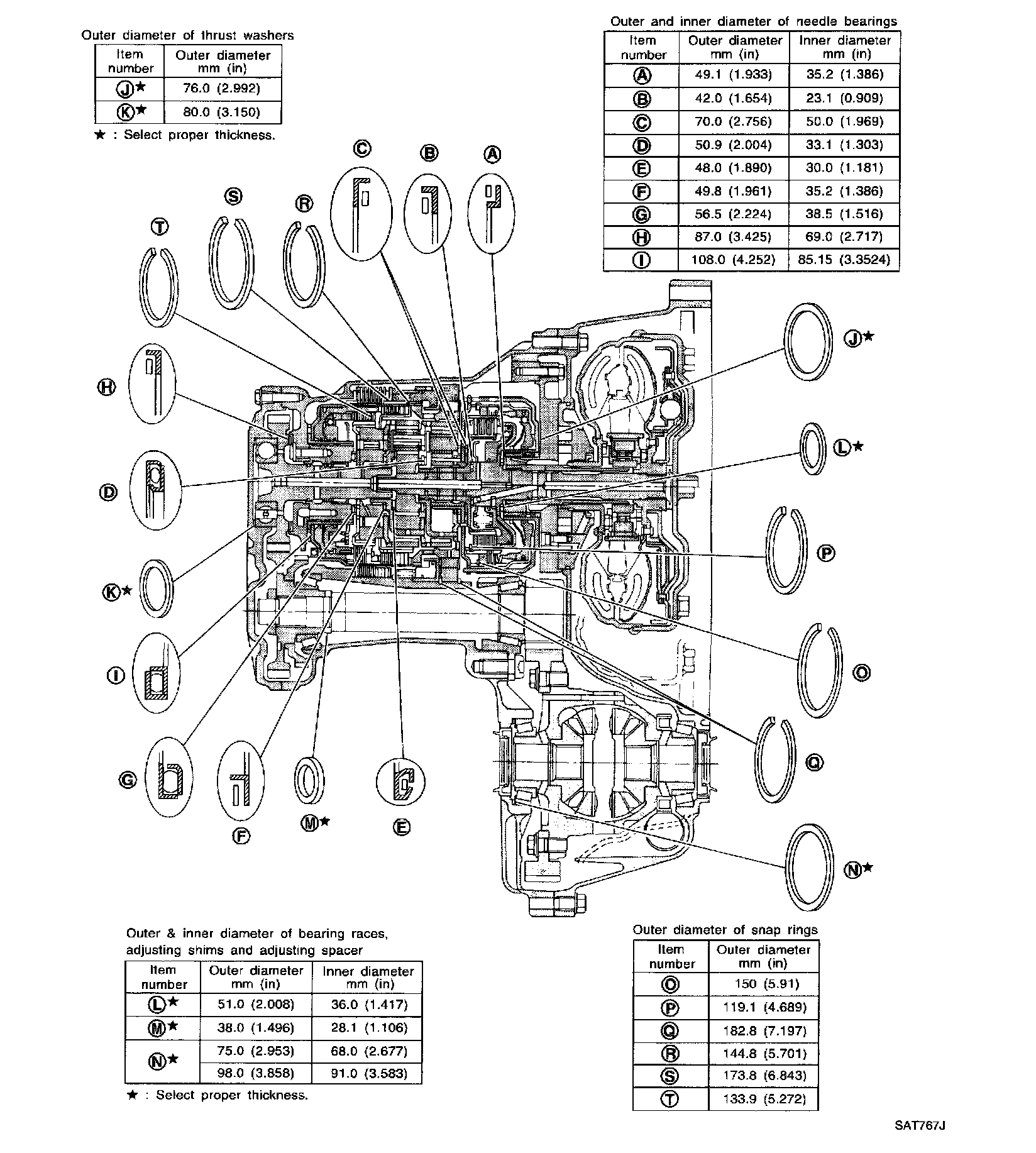

LOCATIONS OF NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS
