Main Power Supply and Ground Circuit Check

Power Supply Circuit Check
Check power supply circuit for air conditioner system.
Refer to "Wiring Diagram - POWER -".

Step 1:

Step 2:

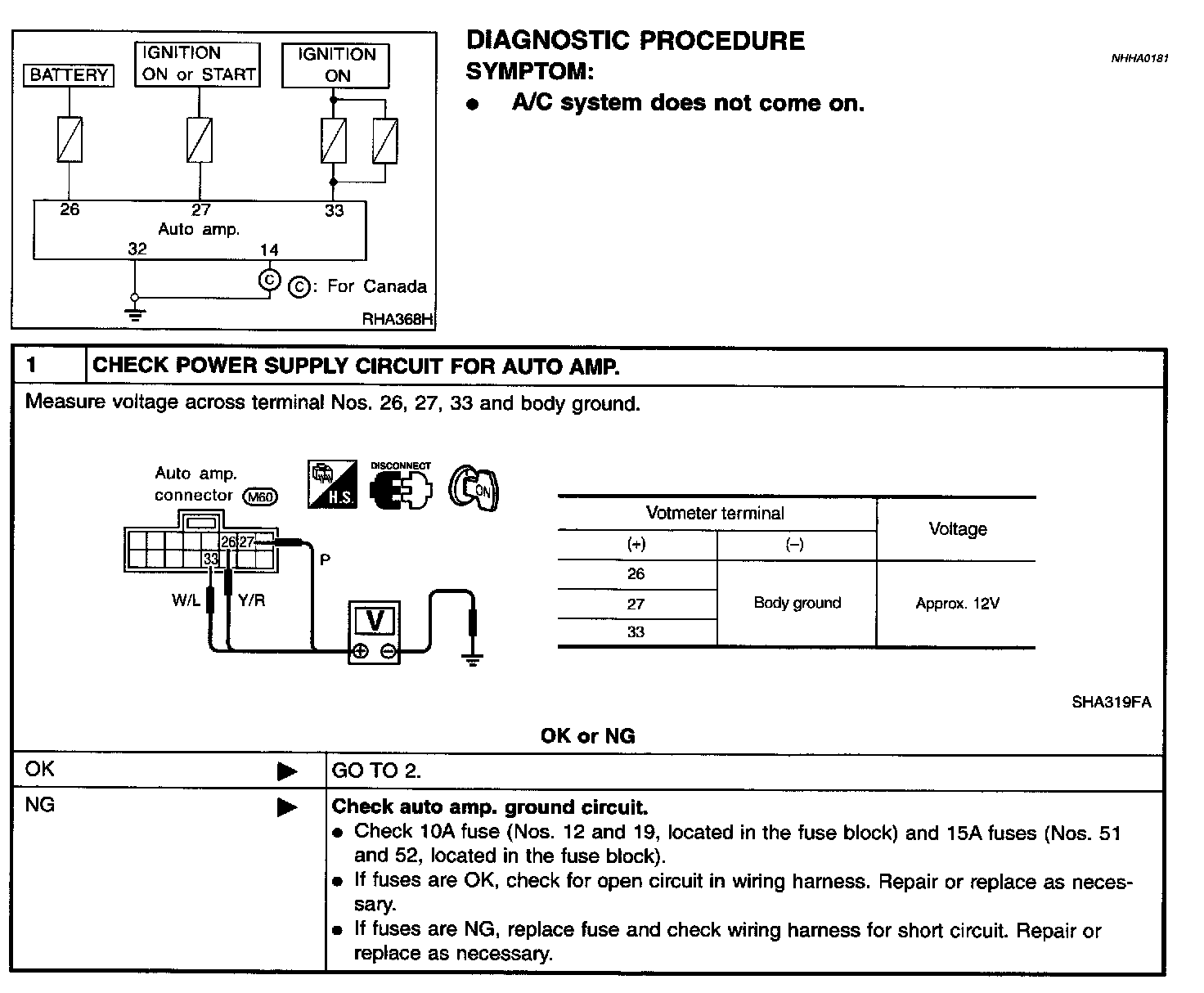

DIAGNOSTIC PROCEDURE
