P0115

Reference Data:

COMPONENT DESCRIPTION

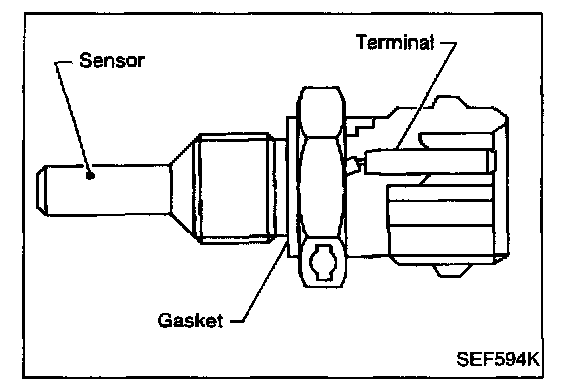

The engine coolant temperature sensor is located near the No. 2 injector. The sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

CAUTION: Do not use ECM ground terminals when measuring voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals such as the body ground.

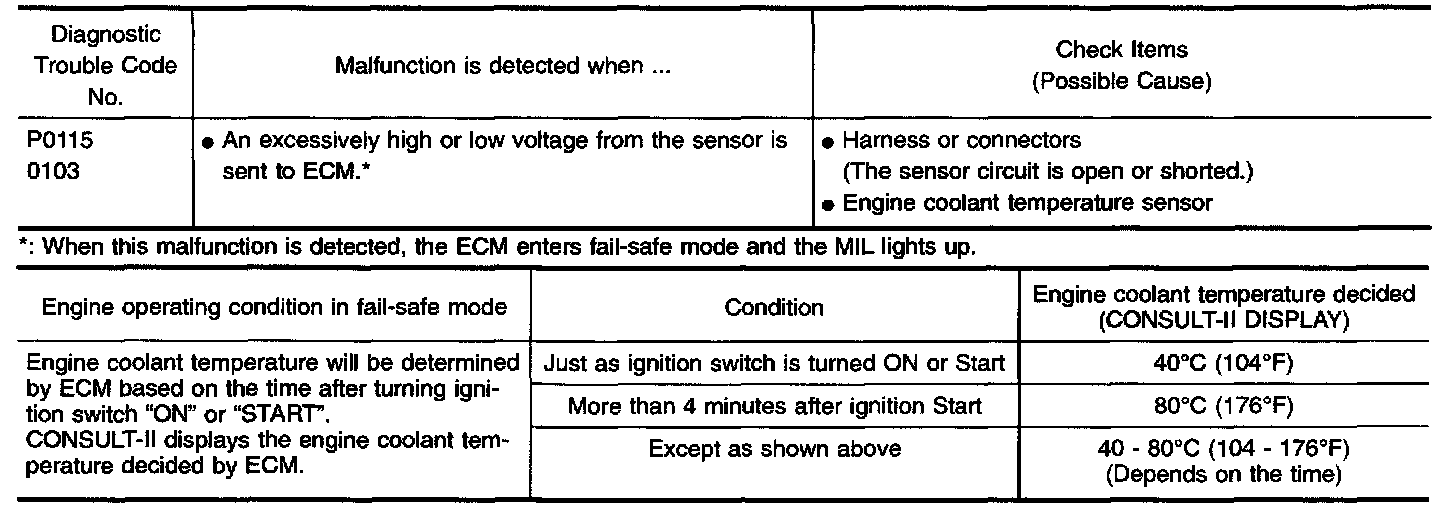

On Board Diagnosis Logic:

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With Consult
1. Turn ignition switch "ON".

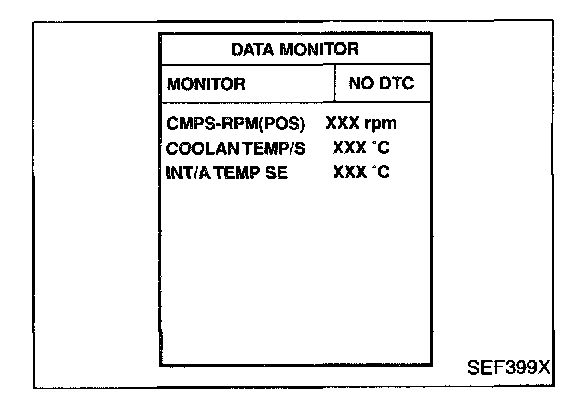

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE".

OR

With Generic Scan Tool
Follow the procedure "With CONSULT-II" above.

EC-ECTS-01:

EC-ECTS-01 Connector View:

WIRING DIAGRAM

Super Multiple Junction (SMJ) Terminal Arrangement (B3, D1, D21, E66, M4, M6, M11, M12, M45, N1):

Super Multiple Junction (SMJ) Terminal Arrangement (B4, B101, E70, E81, F63, M3, M49, M50):

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

Reference Data:

Engine coolant temperature sensor

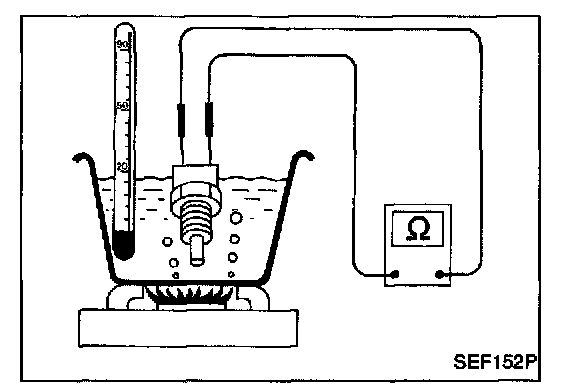

Check resistance as shown in the figure.
If NG, replace engine coolant temperature sensor.
