Mirrors: Service and Repair

Door Mirror

CAUTION: Be careful not to scratch door rearview mirror body.
* For Wiring Diagram, refer to "POWER DOOR MIRROR".

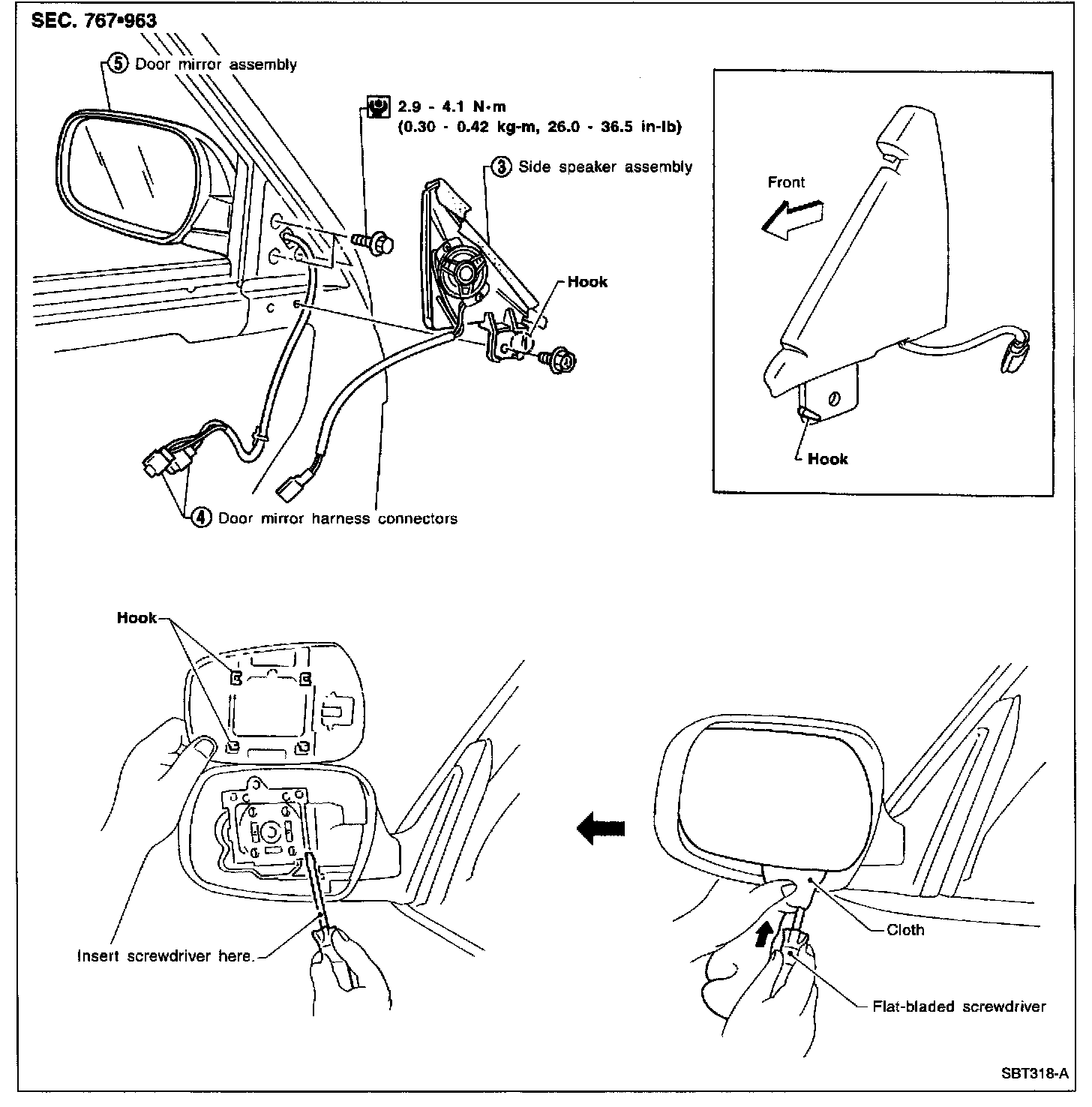

REMOVAL - Door mirror
1. Remove door trim. Refer to "Door Trim" in "INTERIOR TRIM" for details.
2. Remove sash cover inner. Refer to "Sash cover inner" in "EXTERIOR" for details.
3. Remove bolt securing side speaker, then remove side speaker assembly. Disconnect side speaker harness connector.
4. Disconnect door mirror harness connector.
5. Remove bolts securing door mirror, then remove door mirror assembly.
