Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2001
>>
Q45 V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Body No. 2 Harness
Body No. 2 Harness

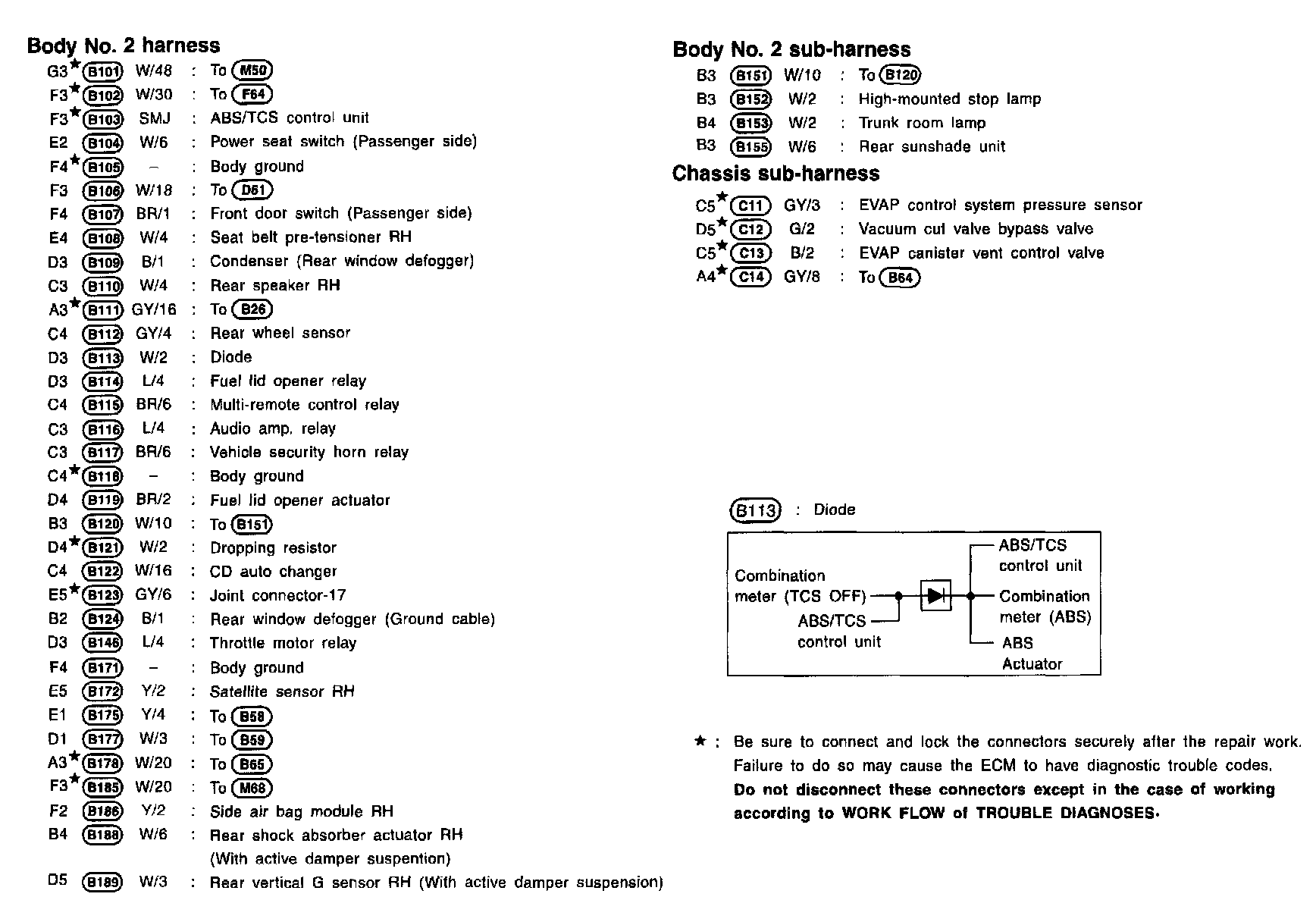

Body No.2 Harness Part 1:

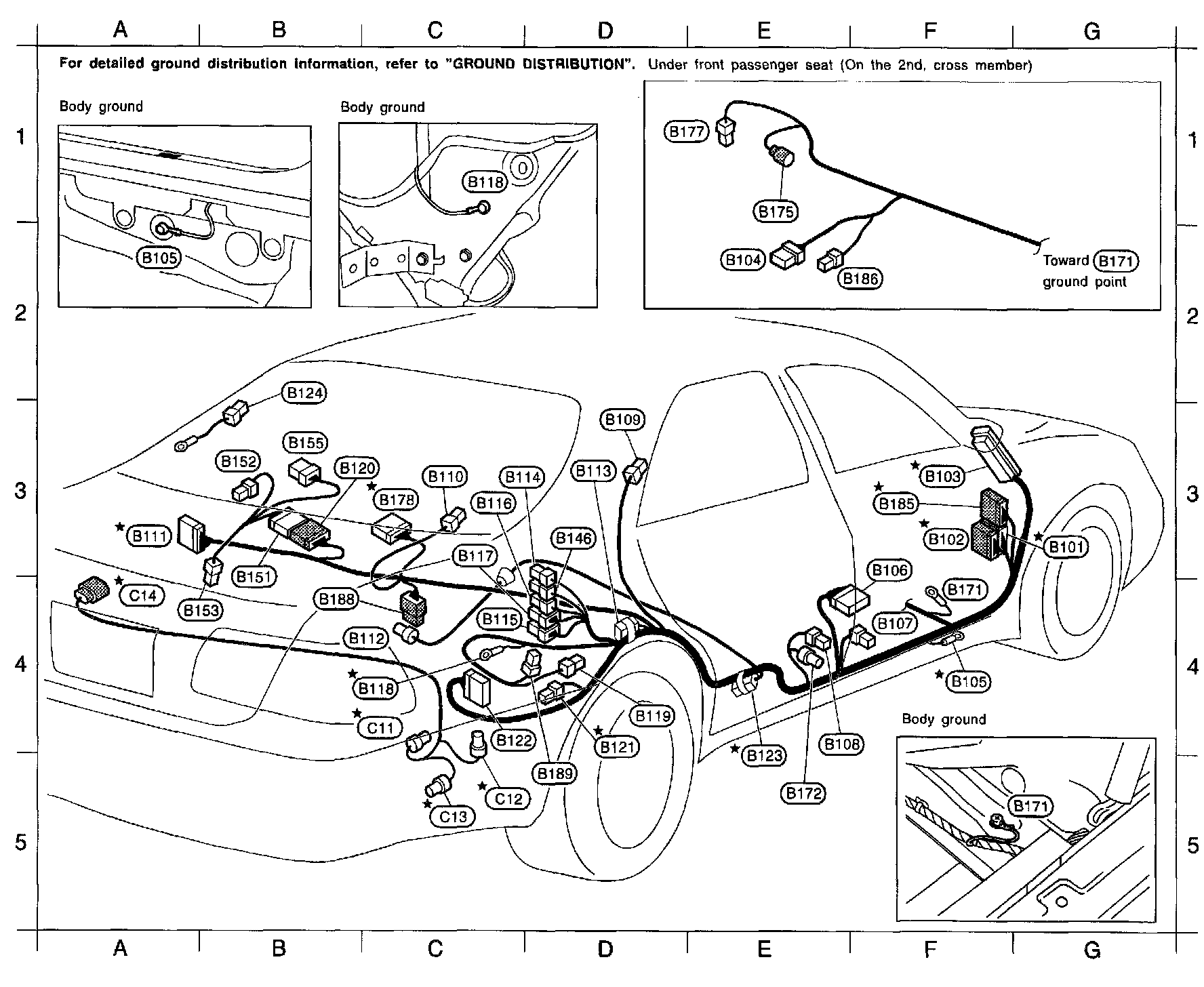

Body No.2 Harness Part 2:
