Home
>>
Infiniti
>>
2001
>>
Q45 V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Instrument Harness
Instrument Harness
Instrument Harness (Without Navigation System):

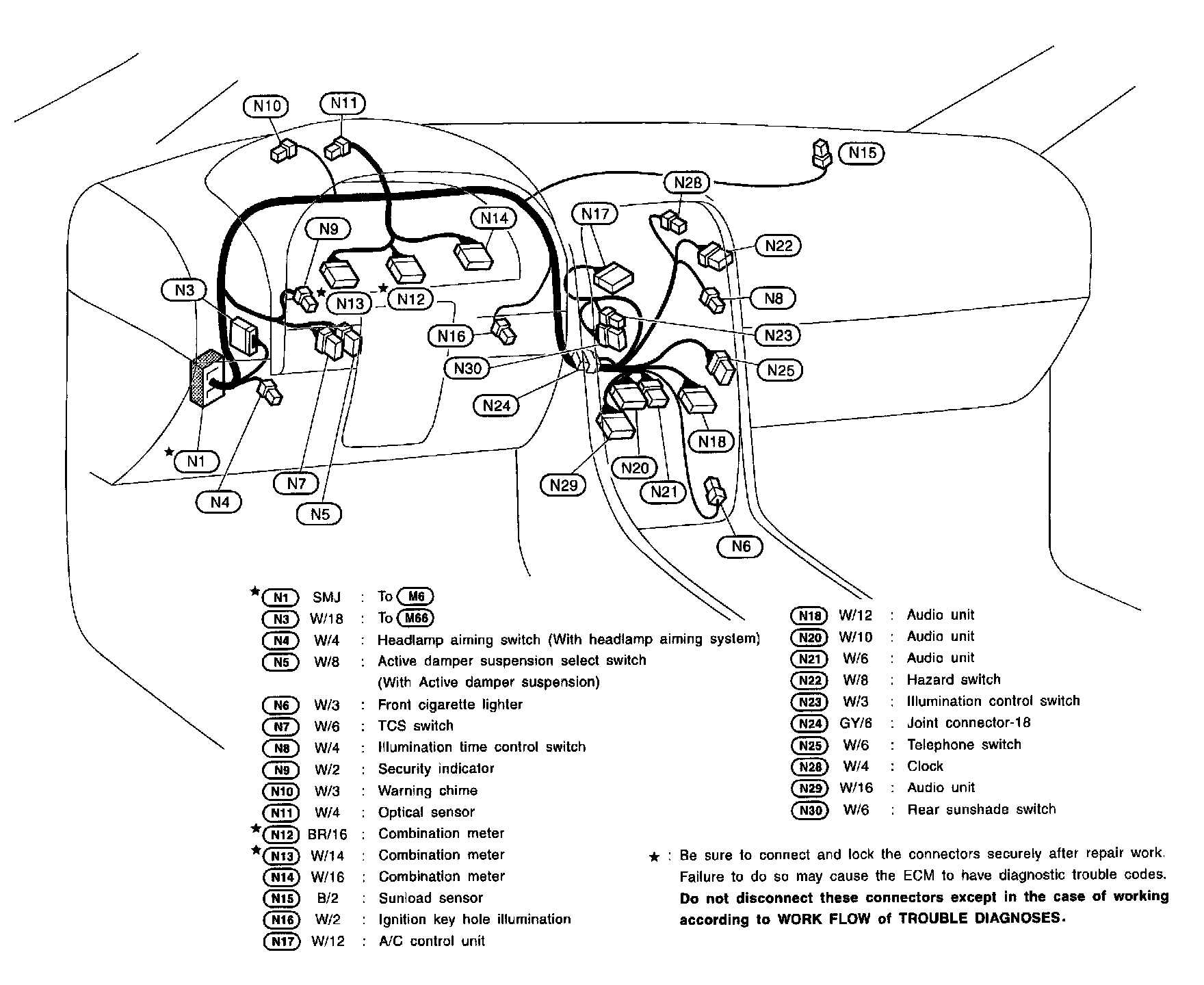

Instrument Harness (With Navigation System):
